HERE ARE  SOME OF THE PRACTICAL CASES RELATED TO VCORE GENERATION AND THE SVID BUS :

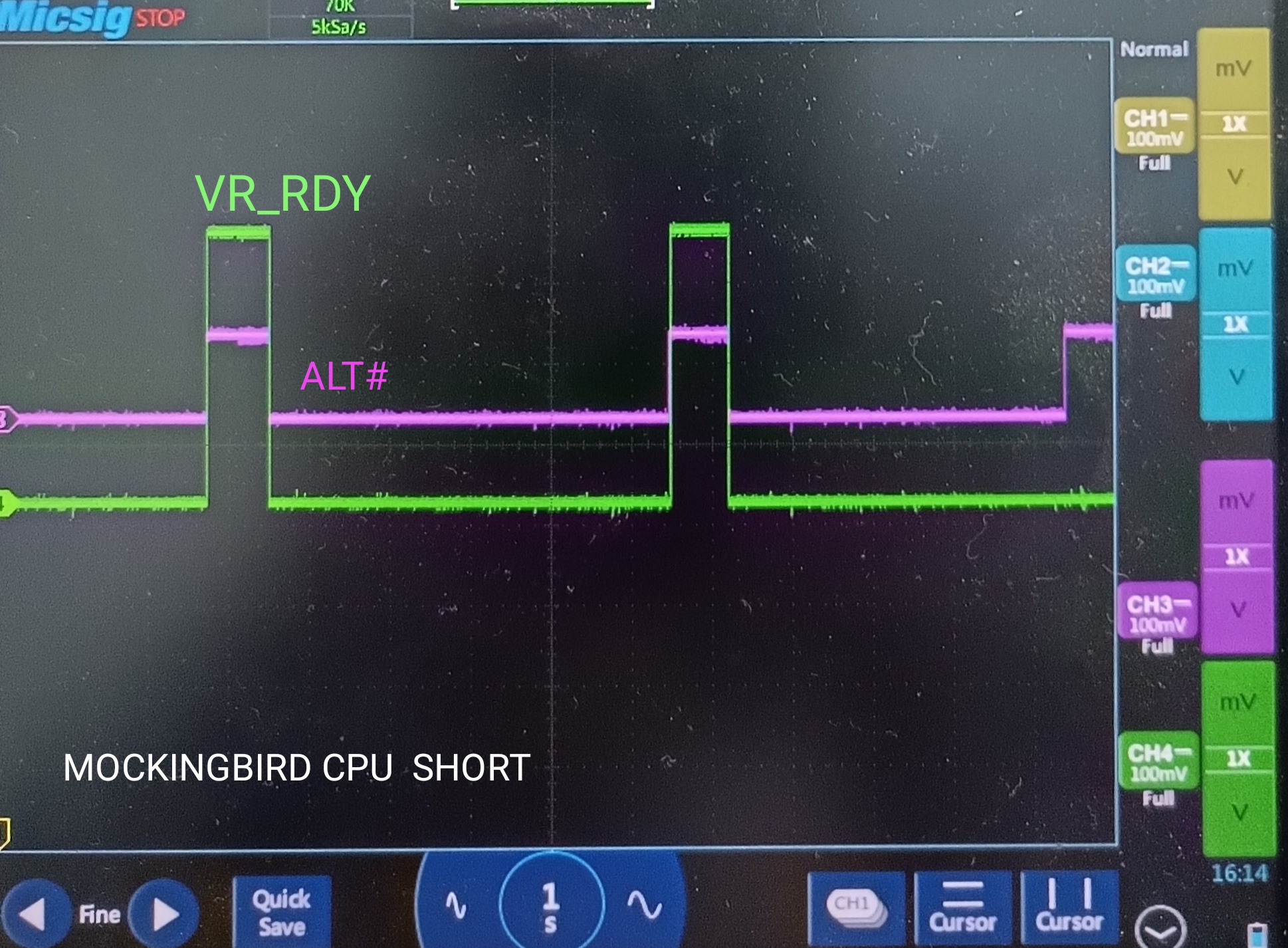

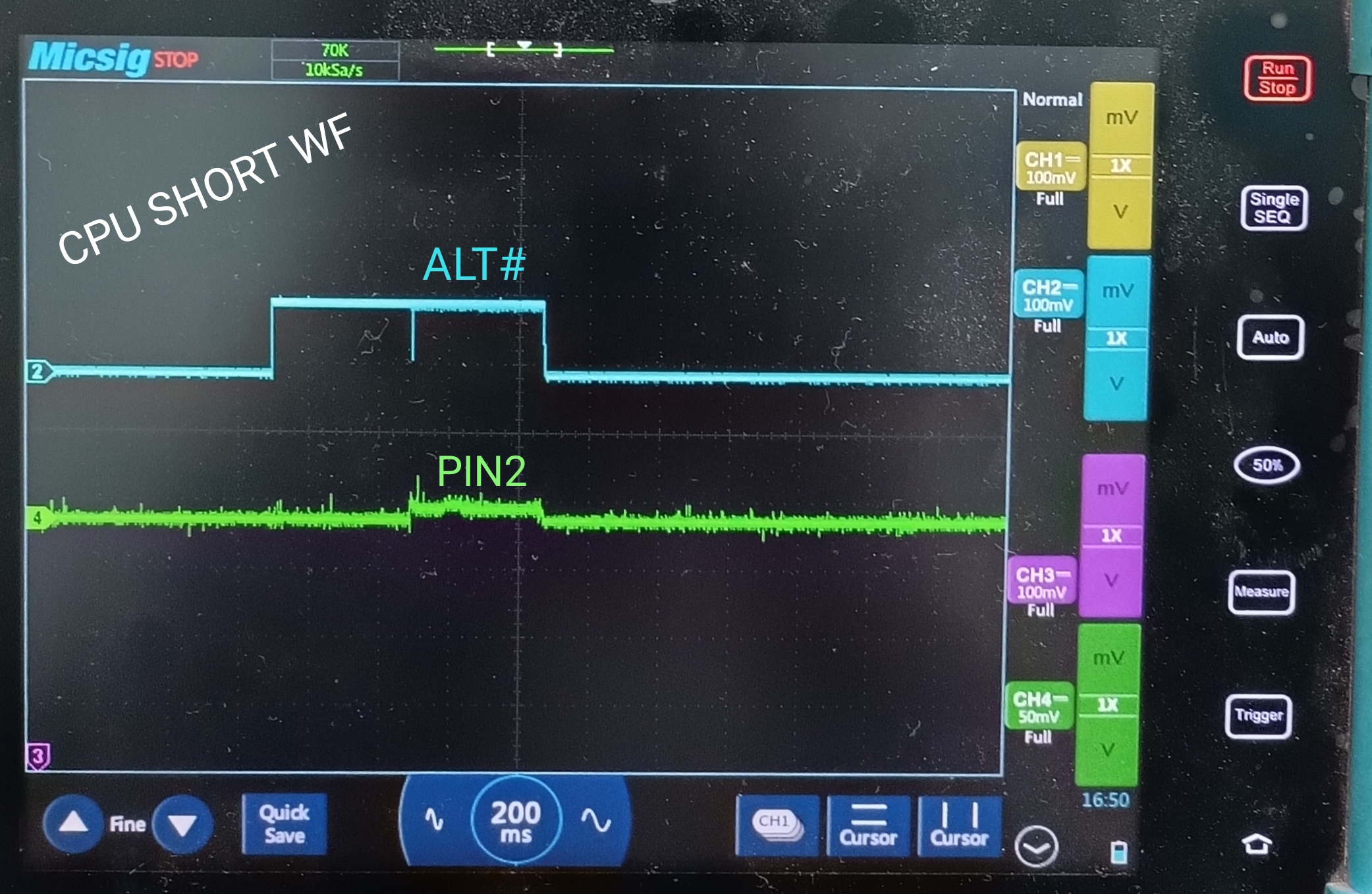

DELL MOCKINGBIRD SOC-CPU SHORTED TO GROUND



SIGNALS CYCLING

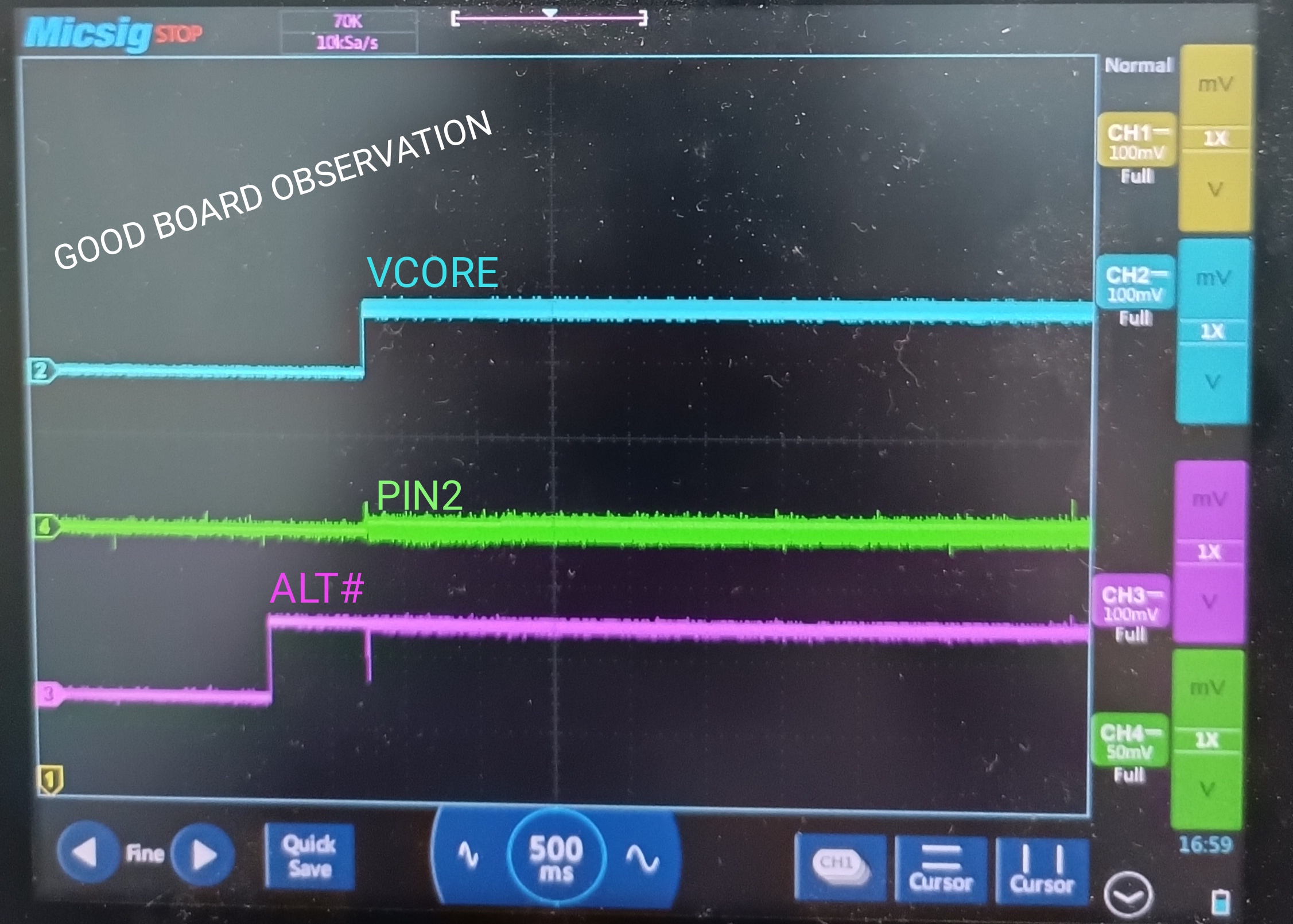

ALT# VS IMON
PIN2 IMON

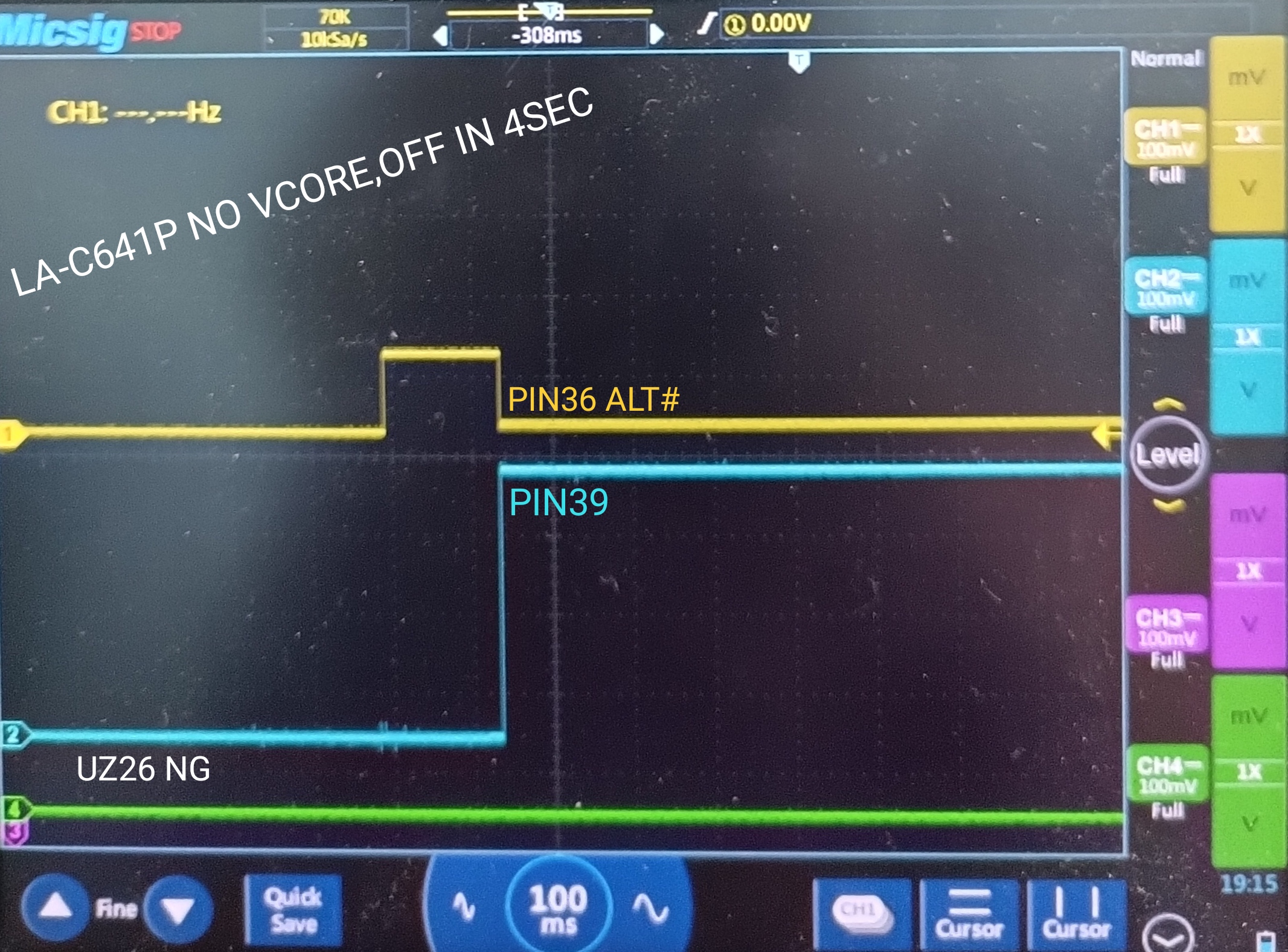

LA-C641P NO VCORE,OFF IN 4 SECONDS

NO +VCC_SFR_OC OUT BY UZ26

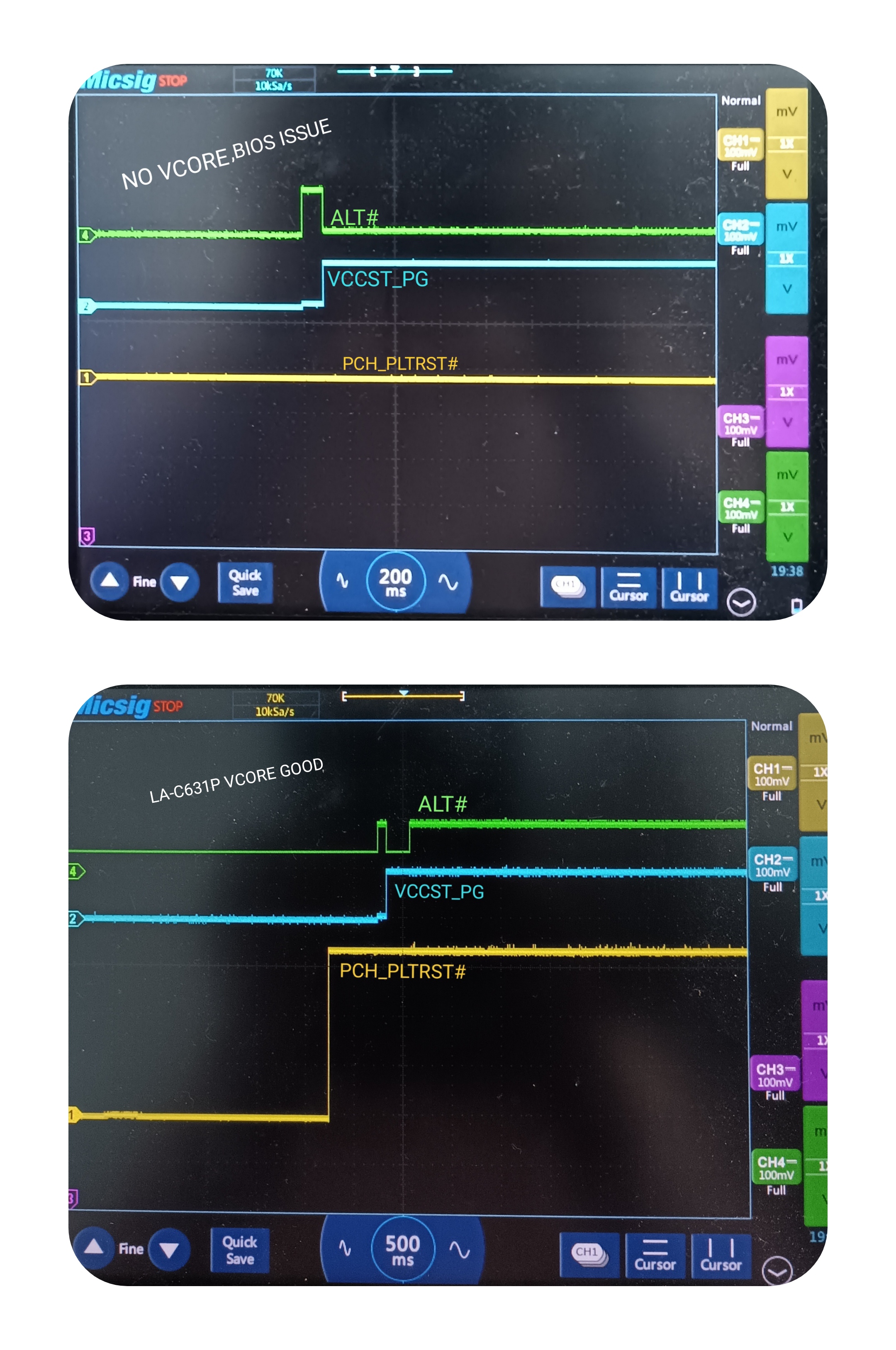

LA-C631P BIOS ISSUE

PCH_PLTRST# LOW CAUSING NO VCORE

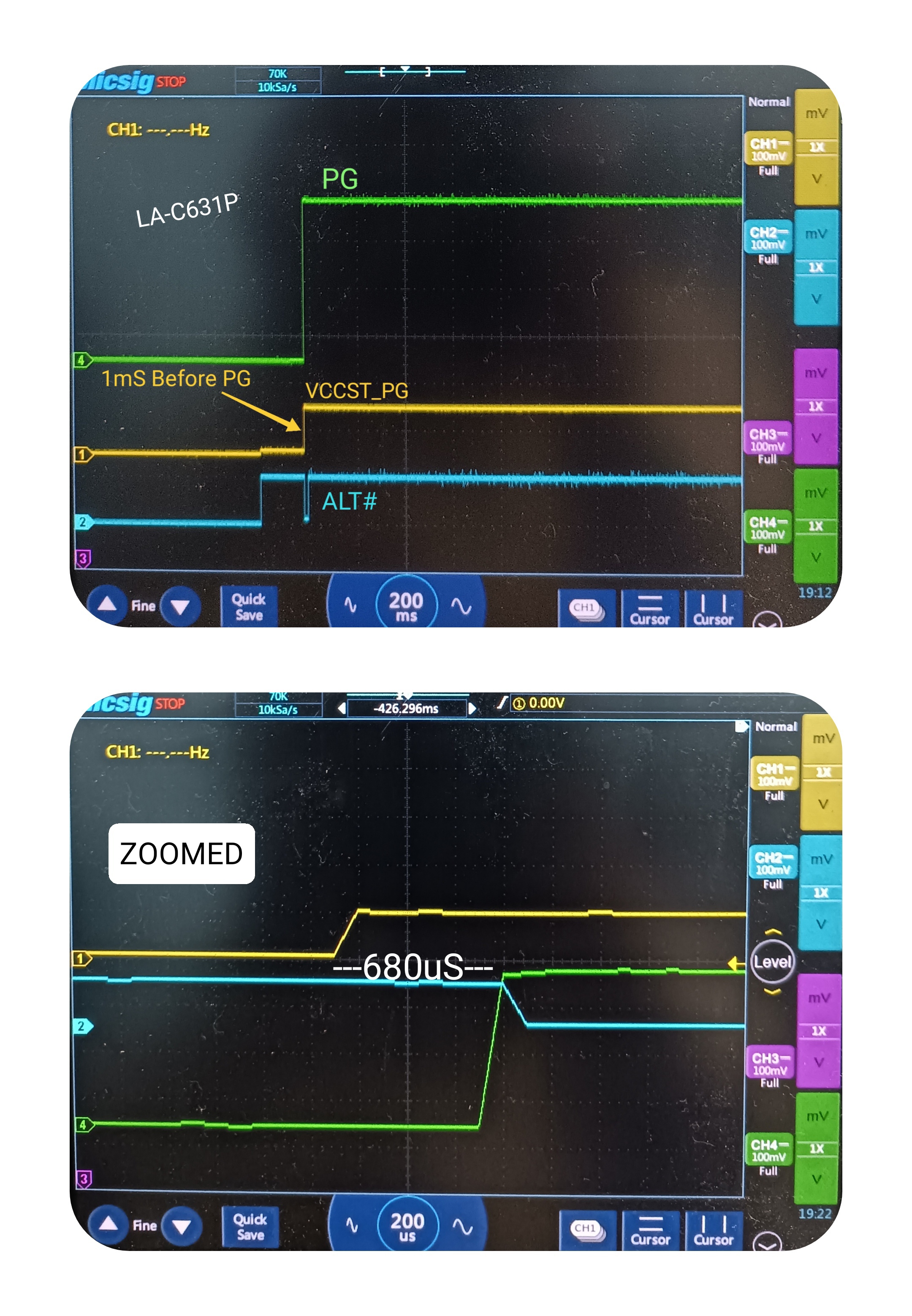

SEE ZOOM IMAGE FOR EXACT MEASUREMENT

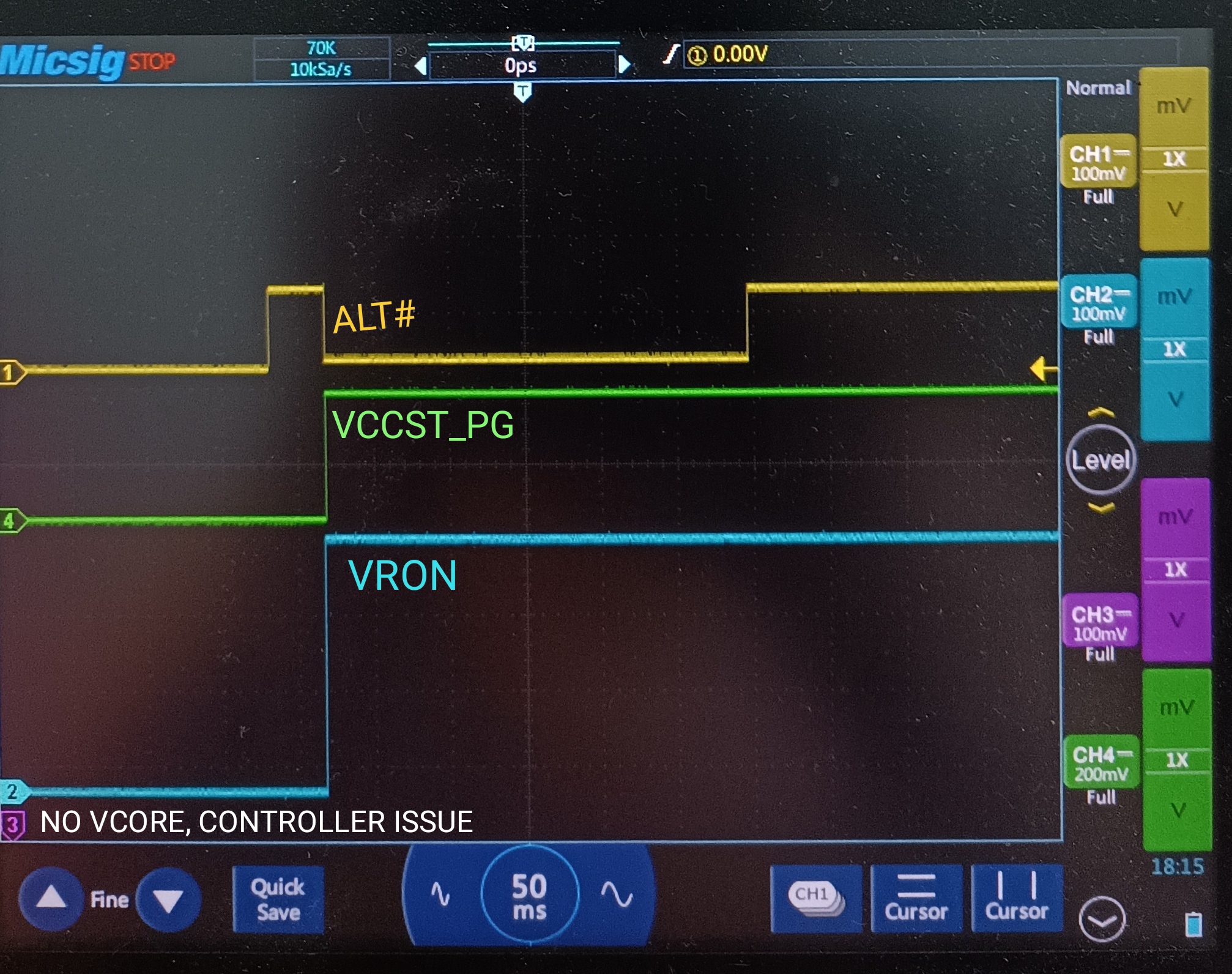

XKT  NO VCORE DUE TO CONTROLLER ISSUE



CONTROLLER ALL REQ GOOD BUT NO VCORE DUE TO CONTROLLER NG

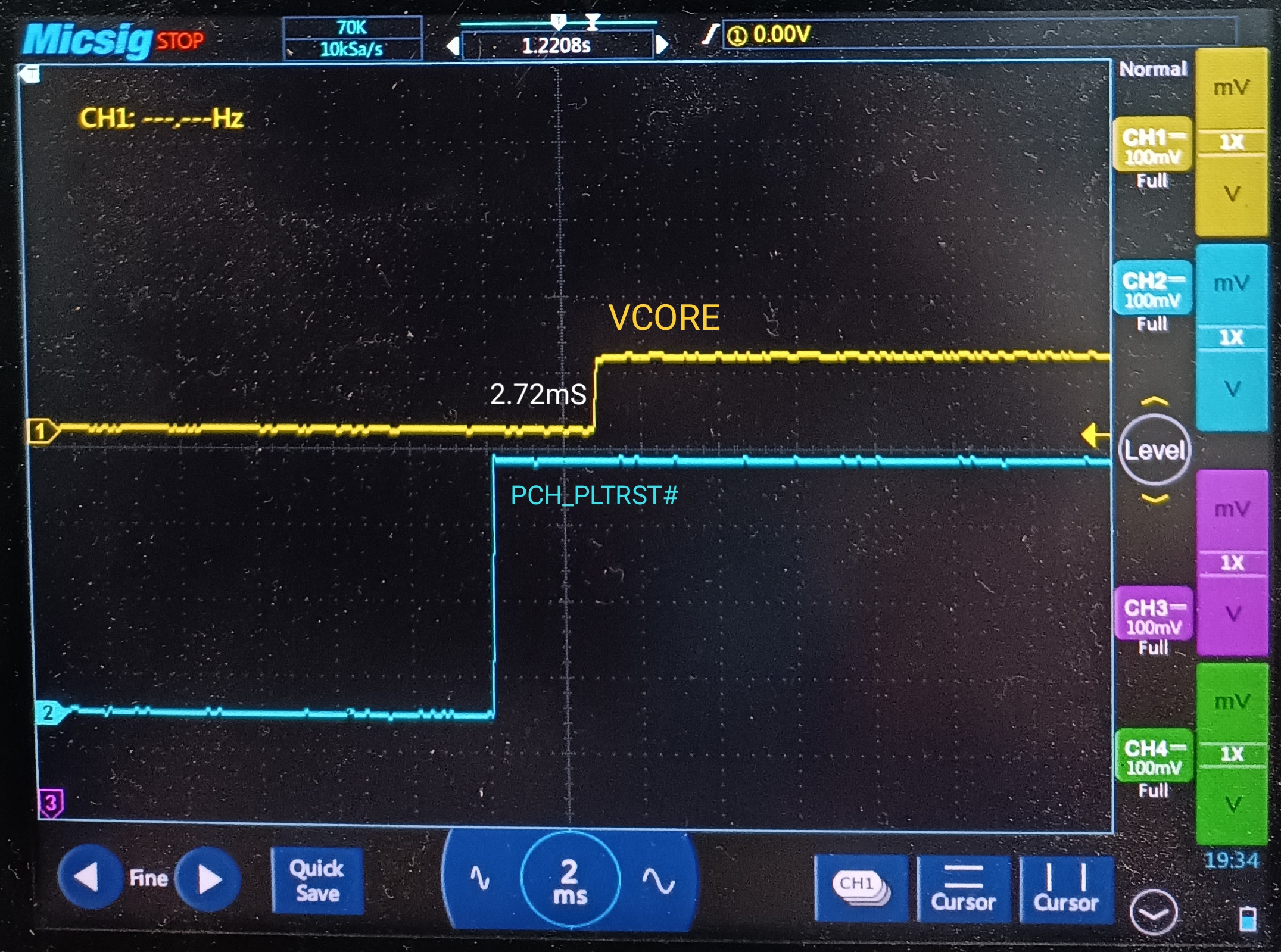

PCH_PLTRST VS VCORE GOOD WF

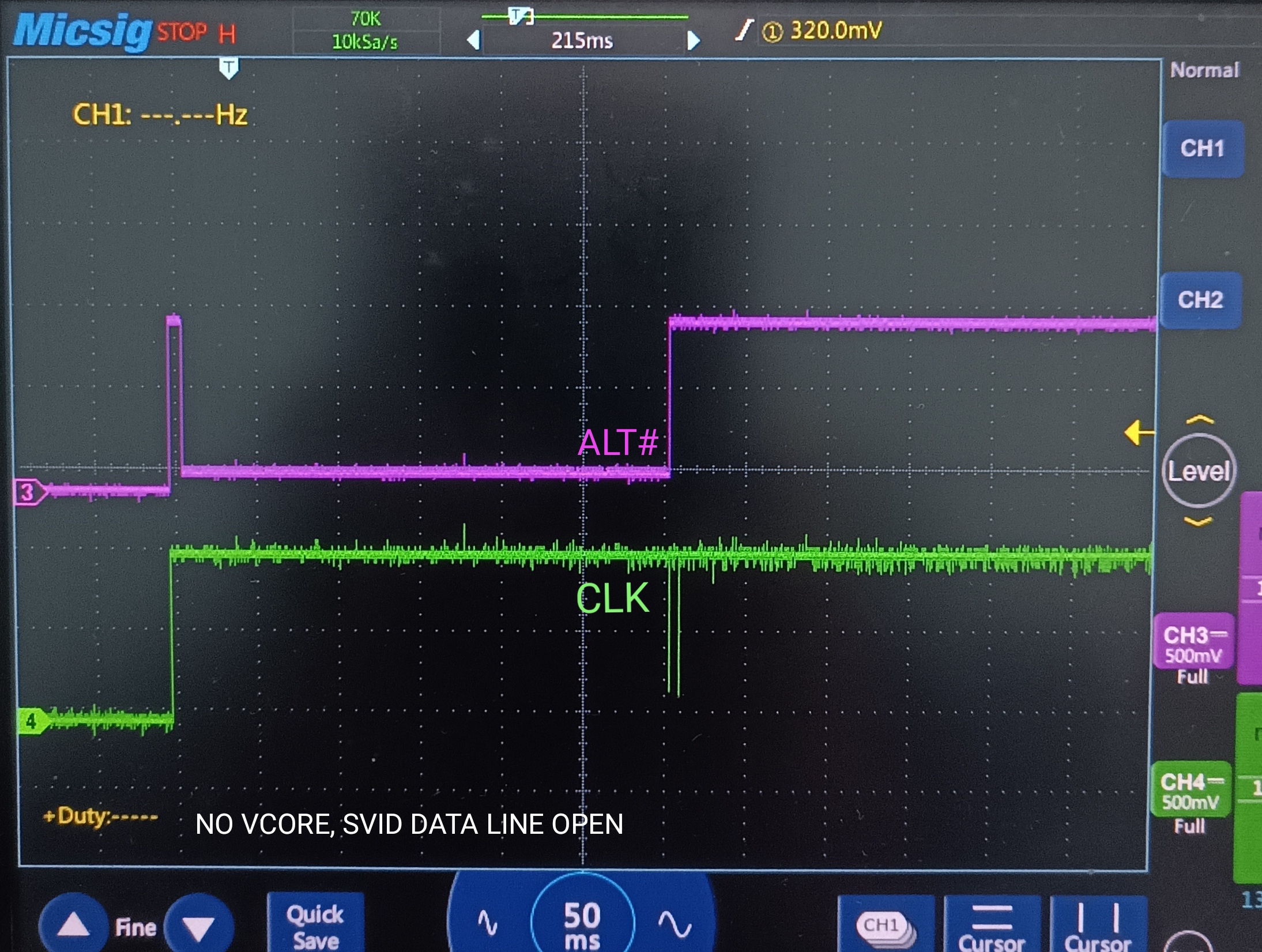

DELL MOCKINGBIRD SVID DATA LINE OPEN

CLK AND ALT# SEEMS GOOD,BUT NO VCORE

COMPLETE BLOG SERIES CONT...STAY LOGIN ON www.EasyMB.in
