Find RIESLING 14 ADL-P UMA_RTS5456-HP Pavilion x360-ek Series Mainboard Brief Description here:

• HP Pavilion x360-ek Series

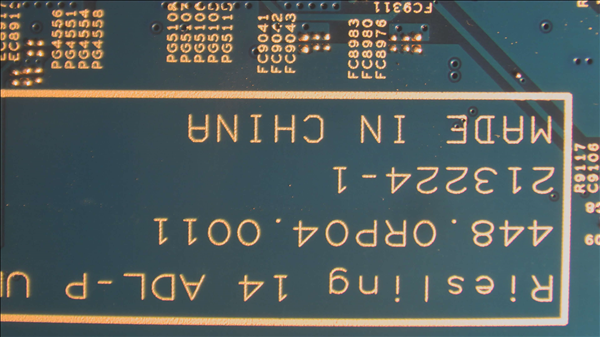

• RIESLING 14 ADL-P UMA_RTS5456
• SPS:213224-1P/N N08799-601
• 2-WIRE COVE
• RED CR2032 CMOS CELL ON
• 90W DCIN CABLE L37038-Y50 8PIN NO LED
• HEATSINK N09478-001
• H5ANAG6NCJ*8 WITH SRLFP SOC
• SRLFQ -SRLFP CPU,NPCE48ALA1BX EC,SEC228_K4A8G16*8 DDR4 RAM,ALC3315 Audio

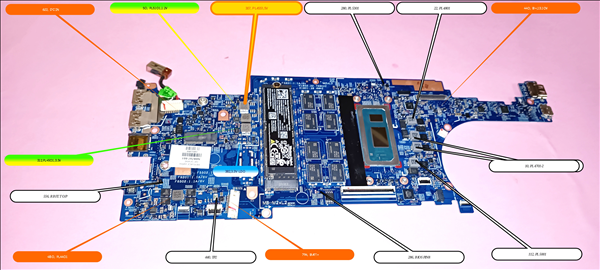

 DIODE VALUE AND LOCATION

•

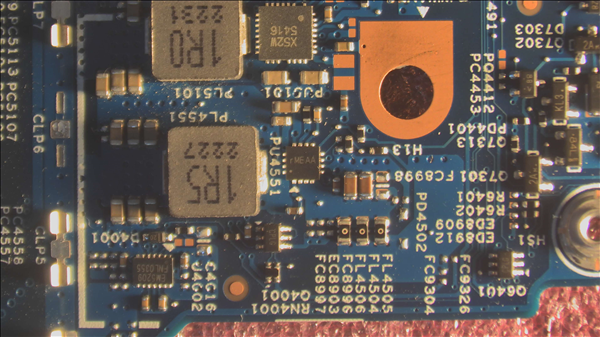

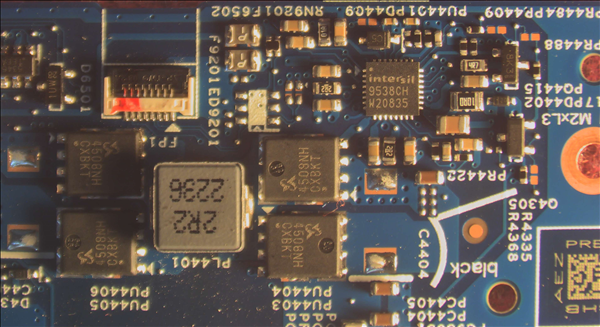

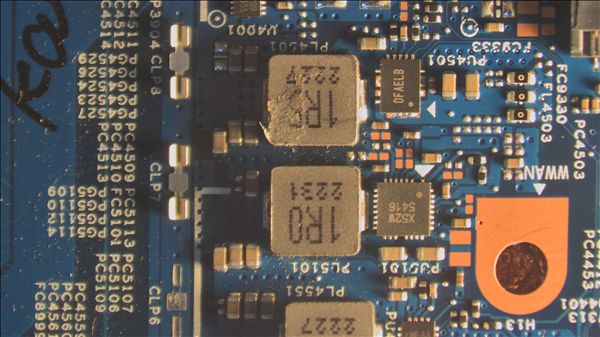

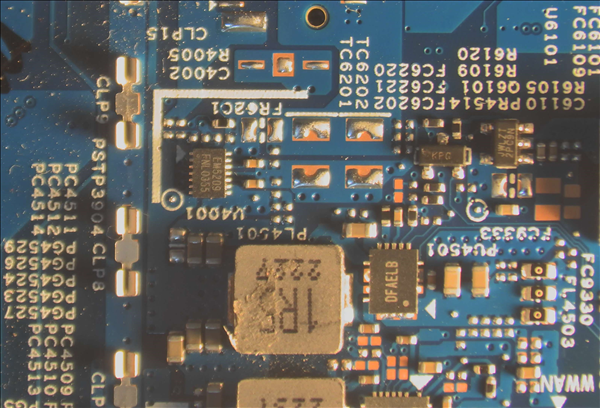

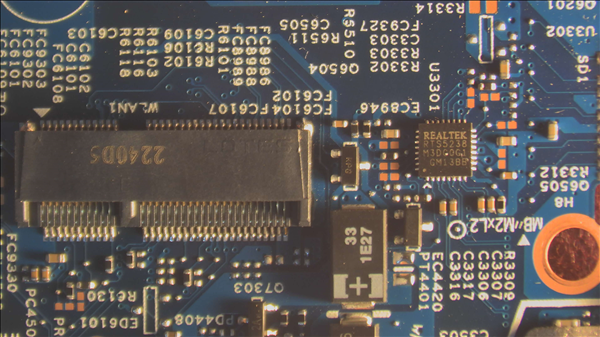

  SECTION VISE IMAGES

•

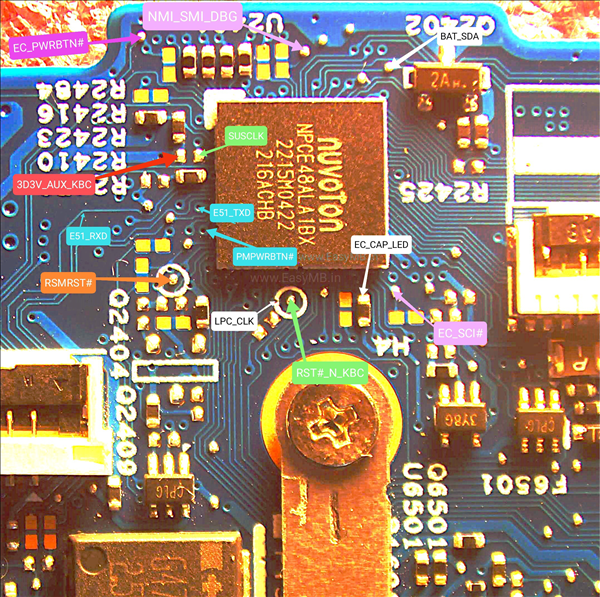

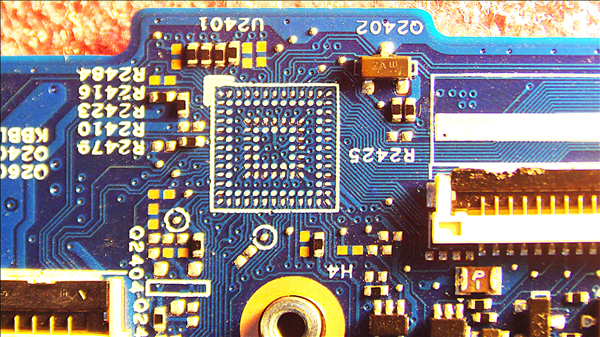

  EC PINOUTS:

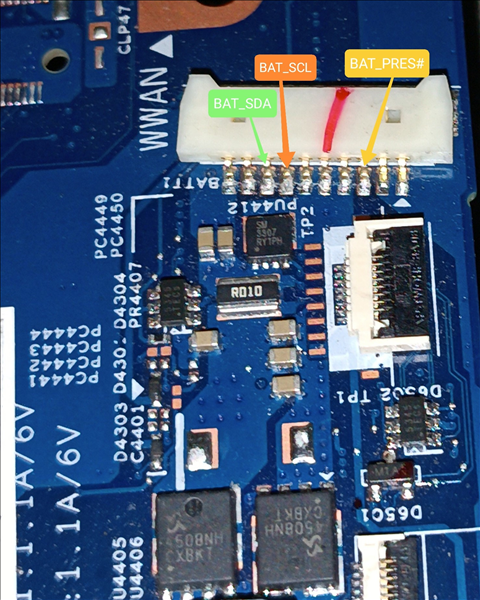

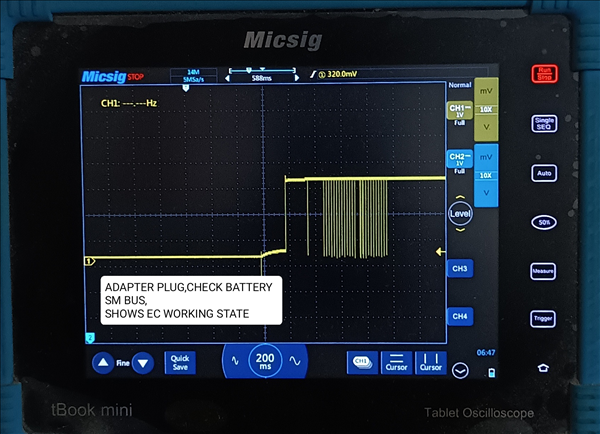

  BATTERY CONNECTOR:



  FO
