PROBOOK X360 440 (RUMBLE  KBL) POWER ON TRIP, NO VCORE

3V 5V 1.8V 1V ALW ALL OK

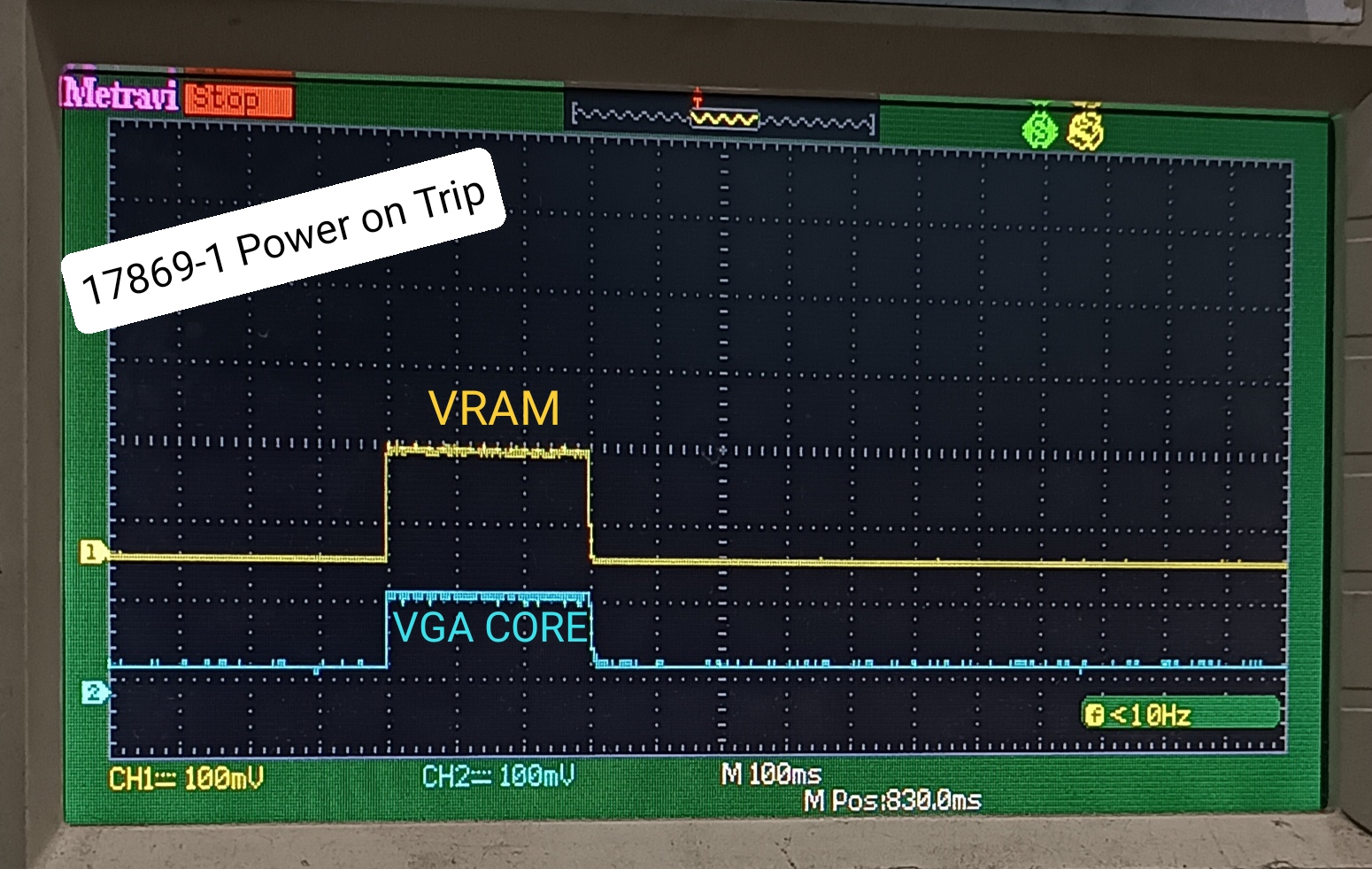

VRAM VCC AND VGA CORE AS BELOW:

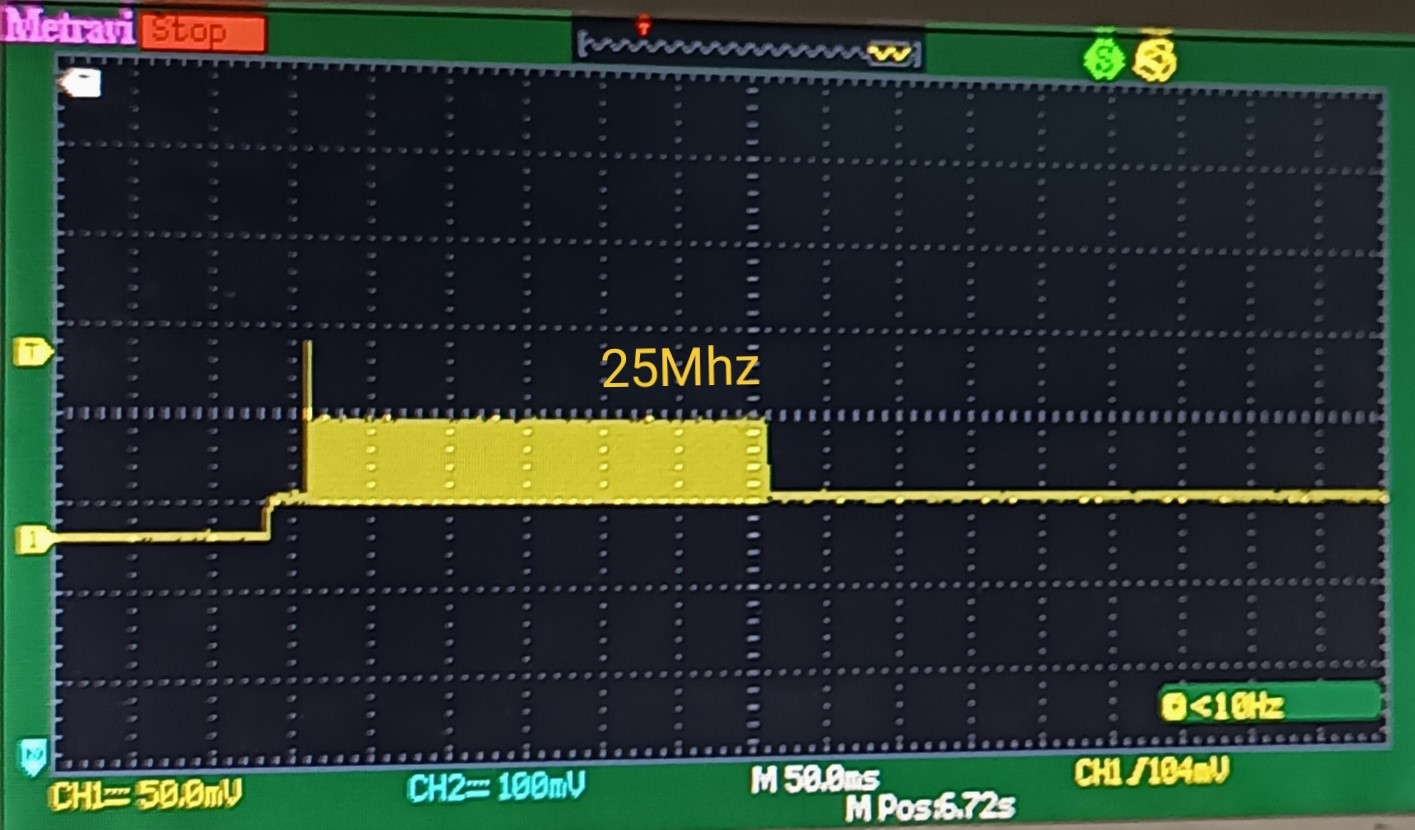

PCH CRYSTAL CLOCK Is also for 300mS shown below:

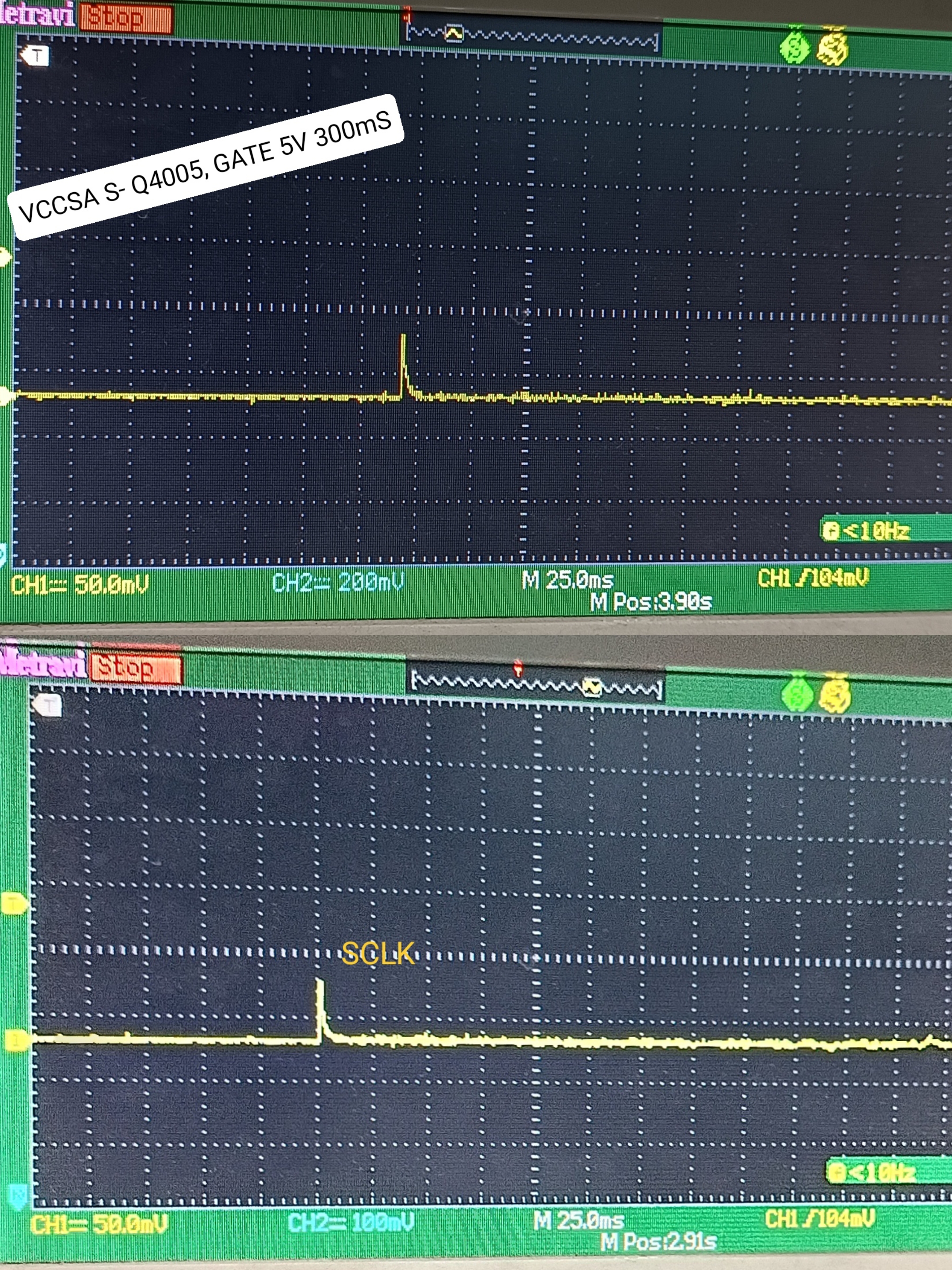

VCCSA and SCLK SEEN FOR A WHILE

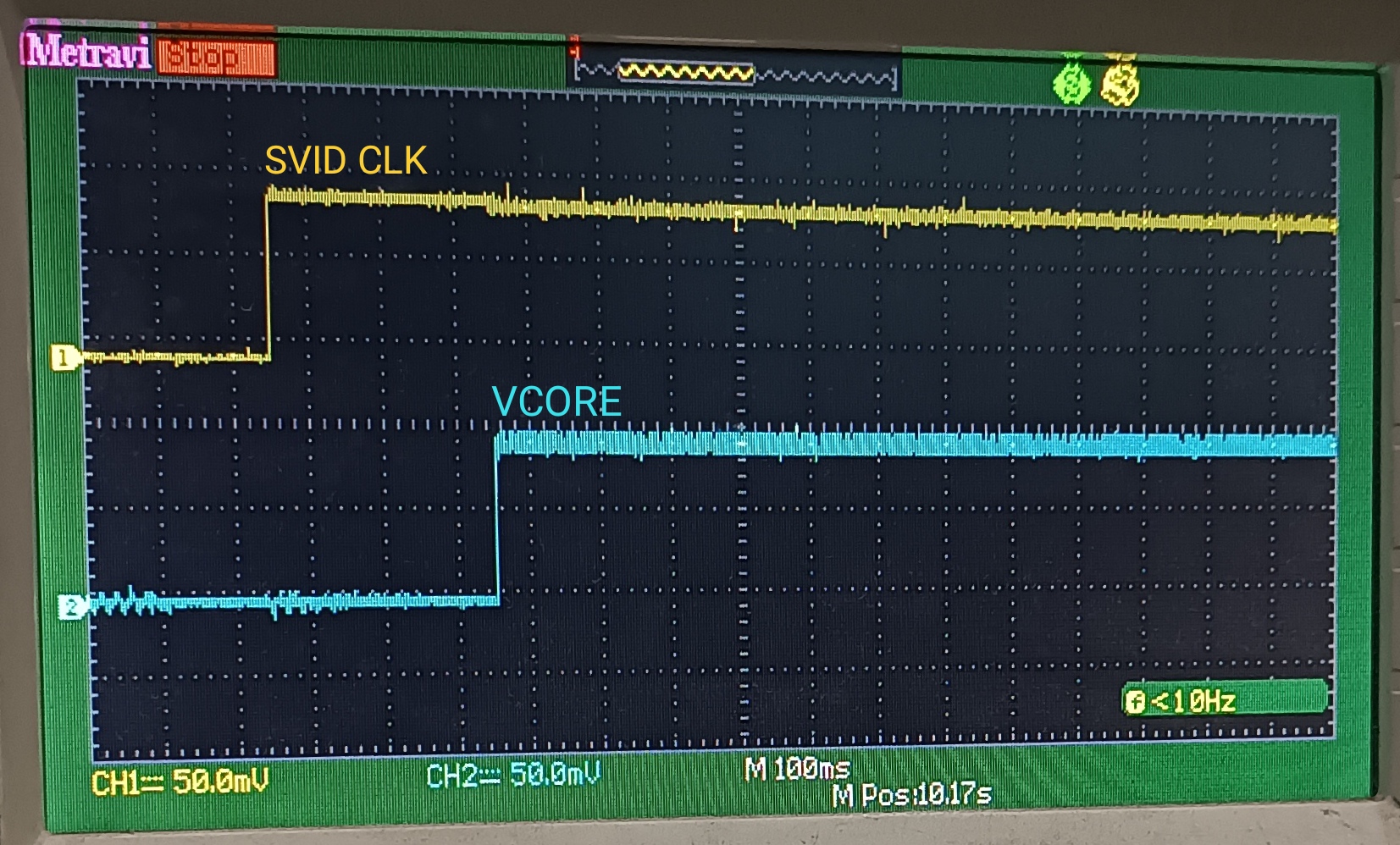

Found Q4005 N-CH is not properly conducting even 5V gate voltage to output VCCST. Replaced VCCST Is in NORMAL RANGE. Now VCORE is

in Normal Voltage level to boot Board.
