NM-B241 MOTHERBOARD

No power on

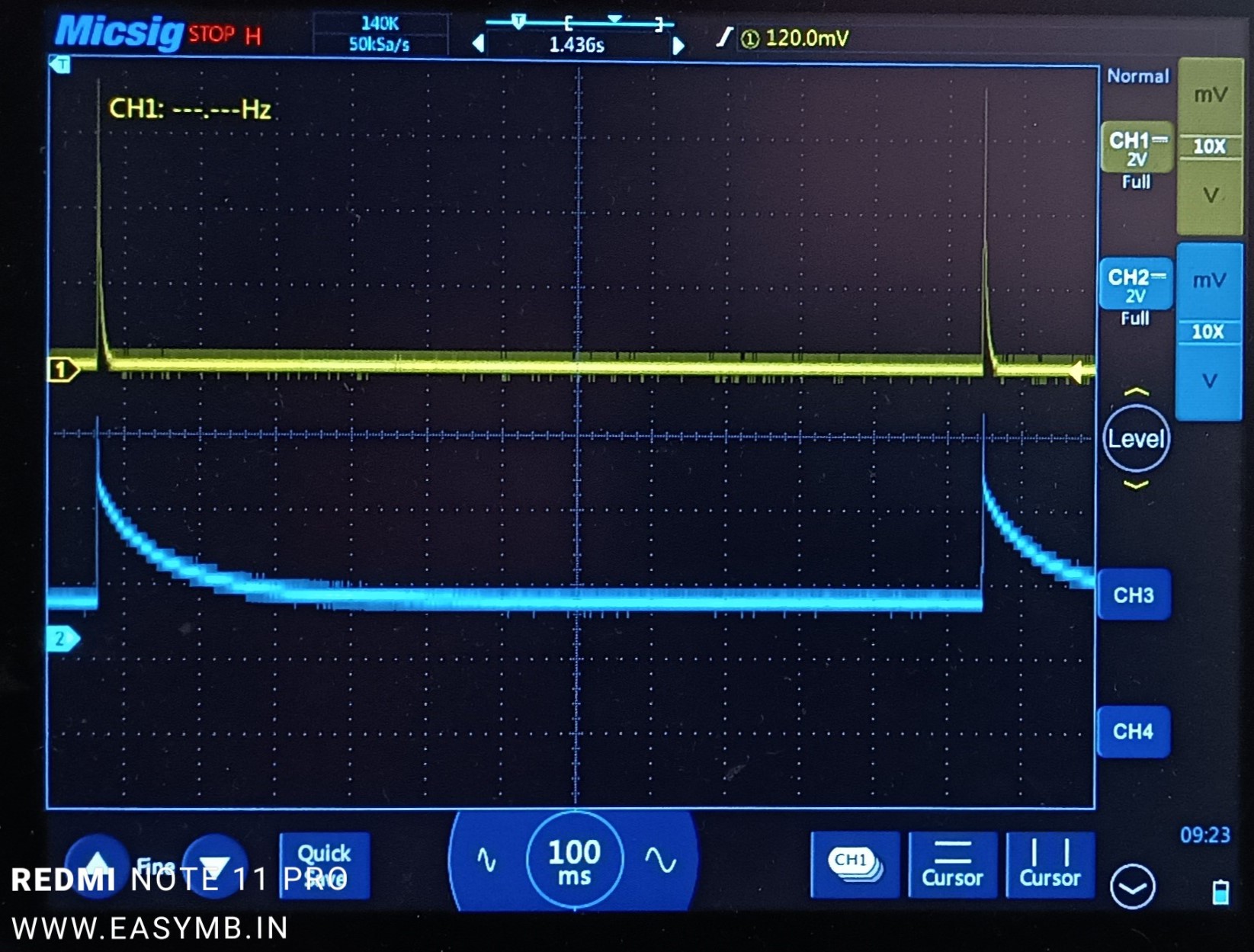

No B+. only some Pulsation Seen. Adapter Protection activated as Below Waveform

CH1:   ACDRV

CH2:  B+

Found BATFET  PQ500 Short

Replaced with new one, All Ok

OBSERVATIONS  OF A KNOWN MAINBOARD

PSU shows 0.32AMP  while booting justified by  USB Device Initialize If screen-cable not available on test table.

Adapter plug Check PL402  5V,PL401  3.3V, PL500  1V  So ALL  ALW  Supplies Present

AC FET- RBFET  Gate 24V

NO CMOS Auto Power ON

BATT SM BUS seen Continuously ON ADP PLUG

J6 PAD is ON/OFF# Near Keyboard Connector

LID Cover Open detector Near LAN PORT
