LA-G714P

                                 WHILE CHARGING DSO WF AT SW SIDE,USE DSO PROBE 10X

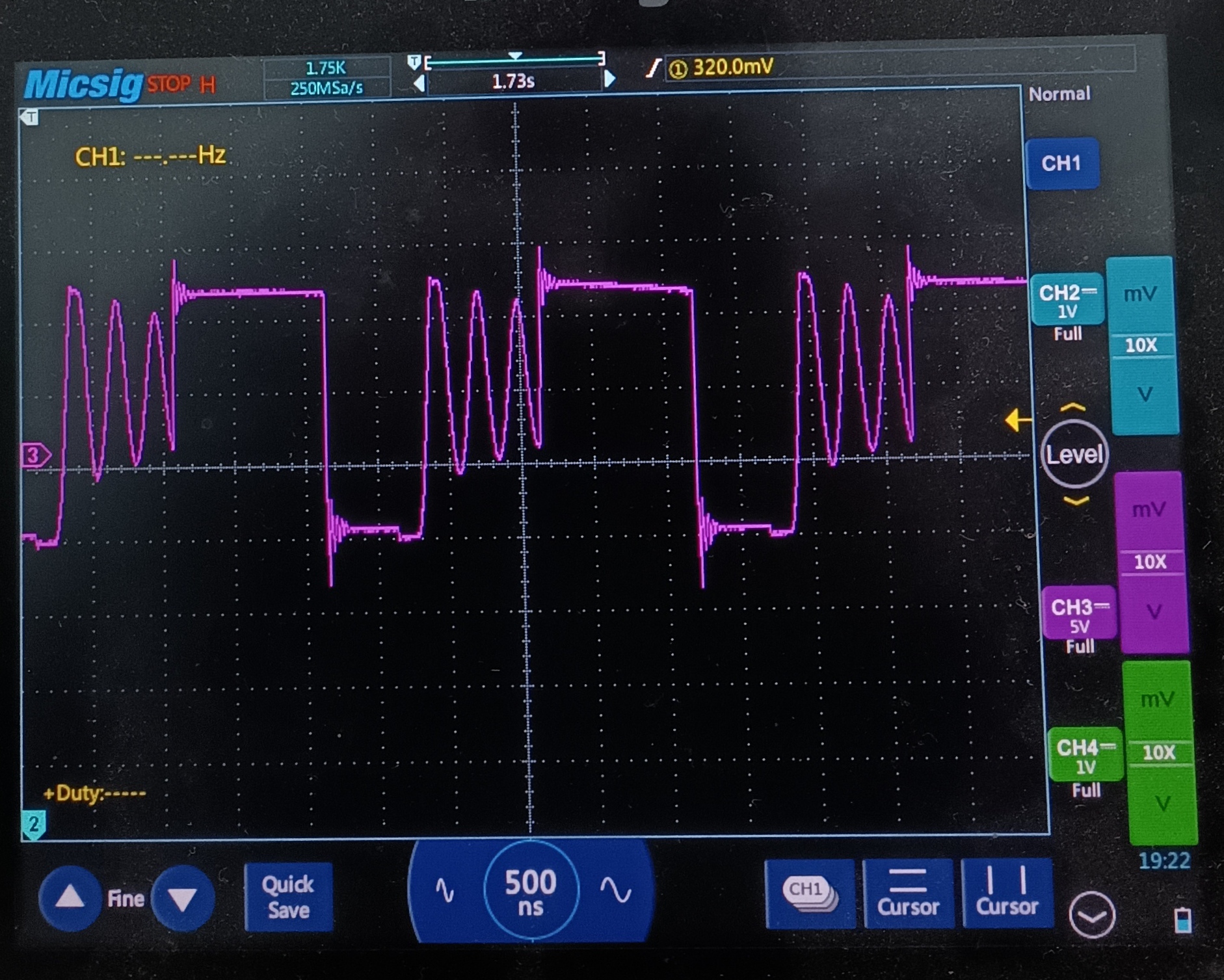

ABOVE 90% OF BATTERY CHARGING PHASE COIL SHOW RINGING IN THE WAVE FORM BECAUSE OF THE CHARGING CURRENT BEING LOW.

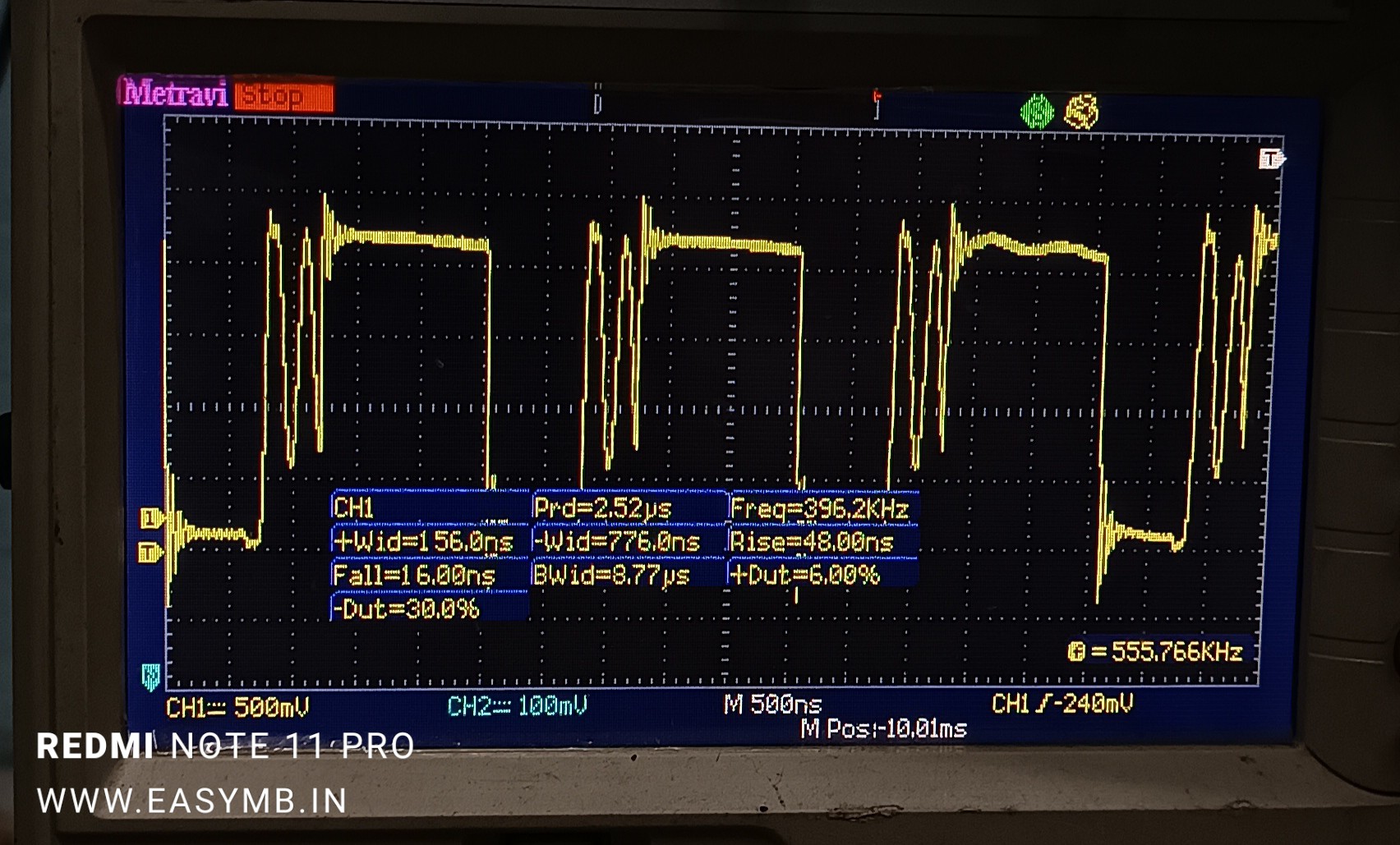

WF SHOWN ABOVE

 MAINBOARD LA-G714P OBSERVATION WHILE CHARGING

12.33V VOLTAGE SHOWN AT BATTERY POSITIVE TERMINAL WHEN  above 90℅ OF BATTERY CHARGED

BATFET : Gate 10.19V WHILE CHARGING

ONLY BATTERY MODE WHEN ADP UNPLUGGED : 11.40V   (WHILE CHARGER DISCONNECTED)

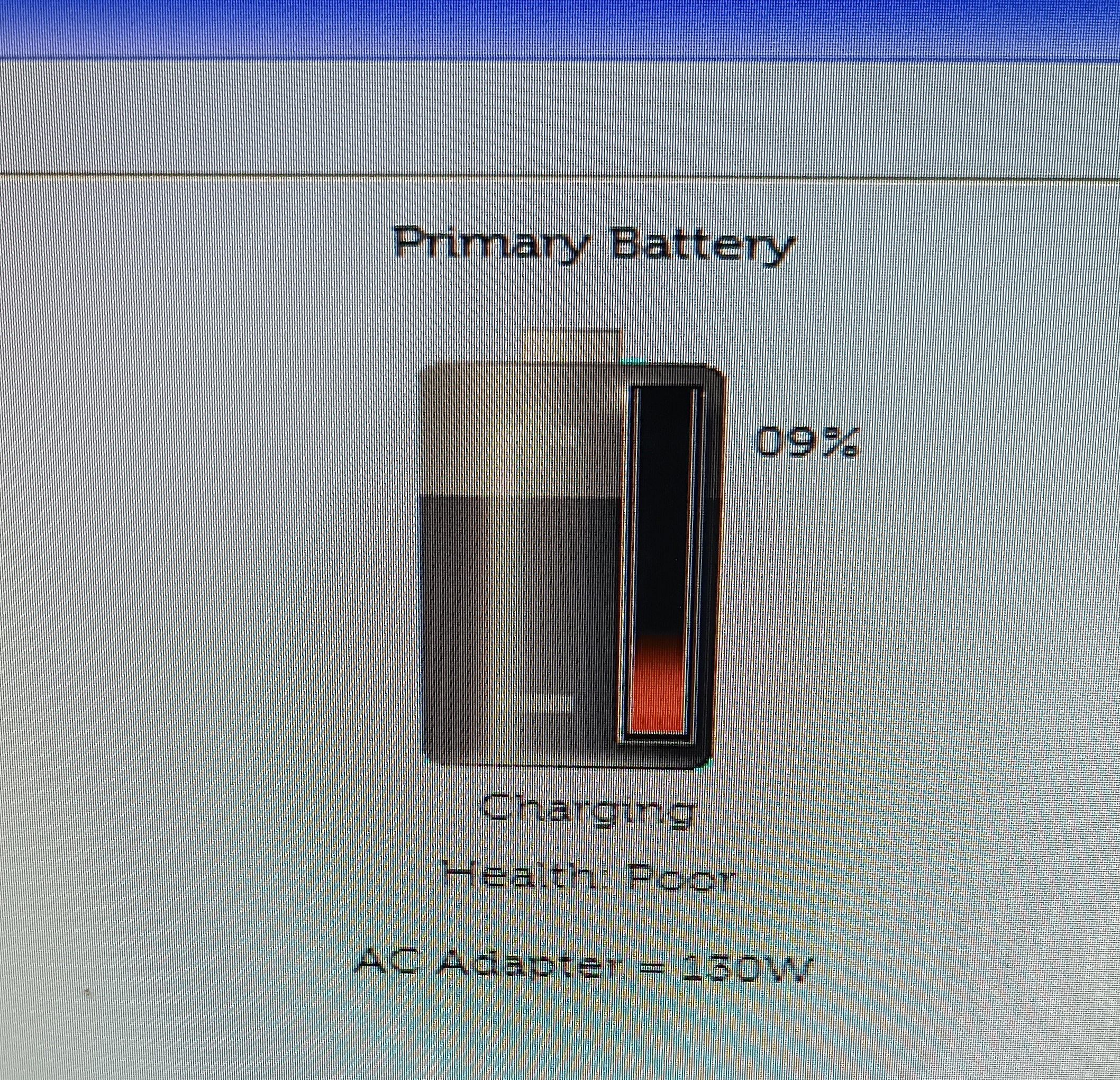

ANOTHER CASE IN WHICH BATTERY LIFE EXHAUSTED
