LA-A992P ONLY POWER LED LIT-NO POWER ON-Old is Gold Series
T
Test Admin (19 Jul 2026)
LA-A992P Main board Not powering up but POWER LED LIT FOR A WHILE.

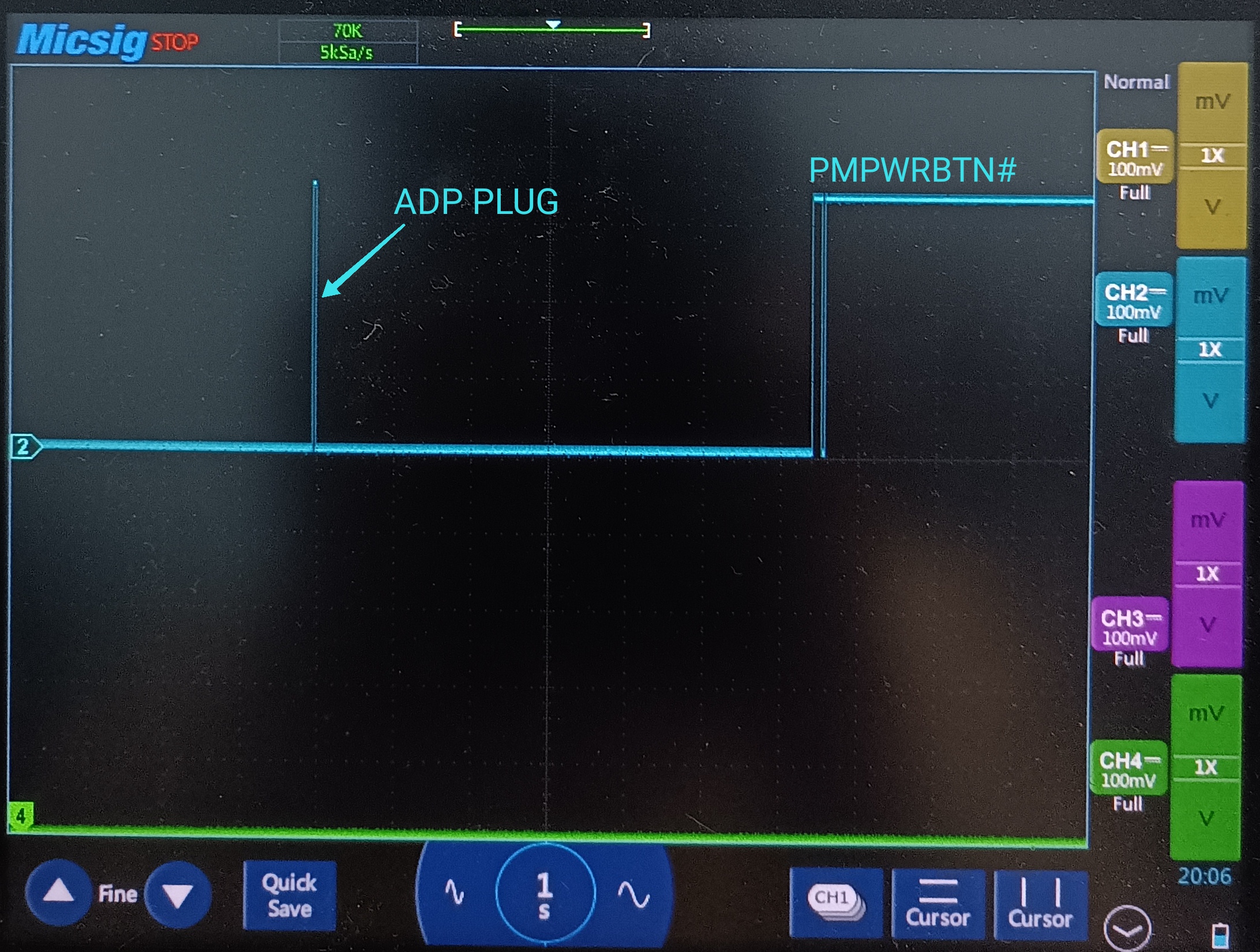

When Switch on 3.3V 5V Ramps,ACIN,RSMRST goes High but PMPWRBTN stuck Low.But when Adapter Plug PMPWRBTN# HIGH for 20mS.

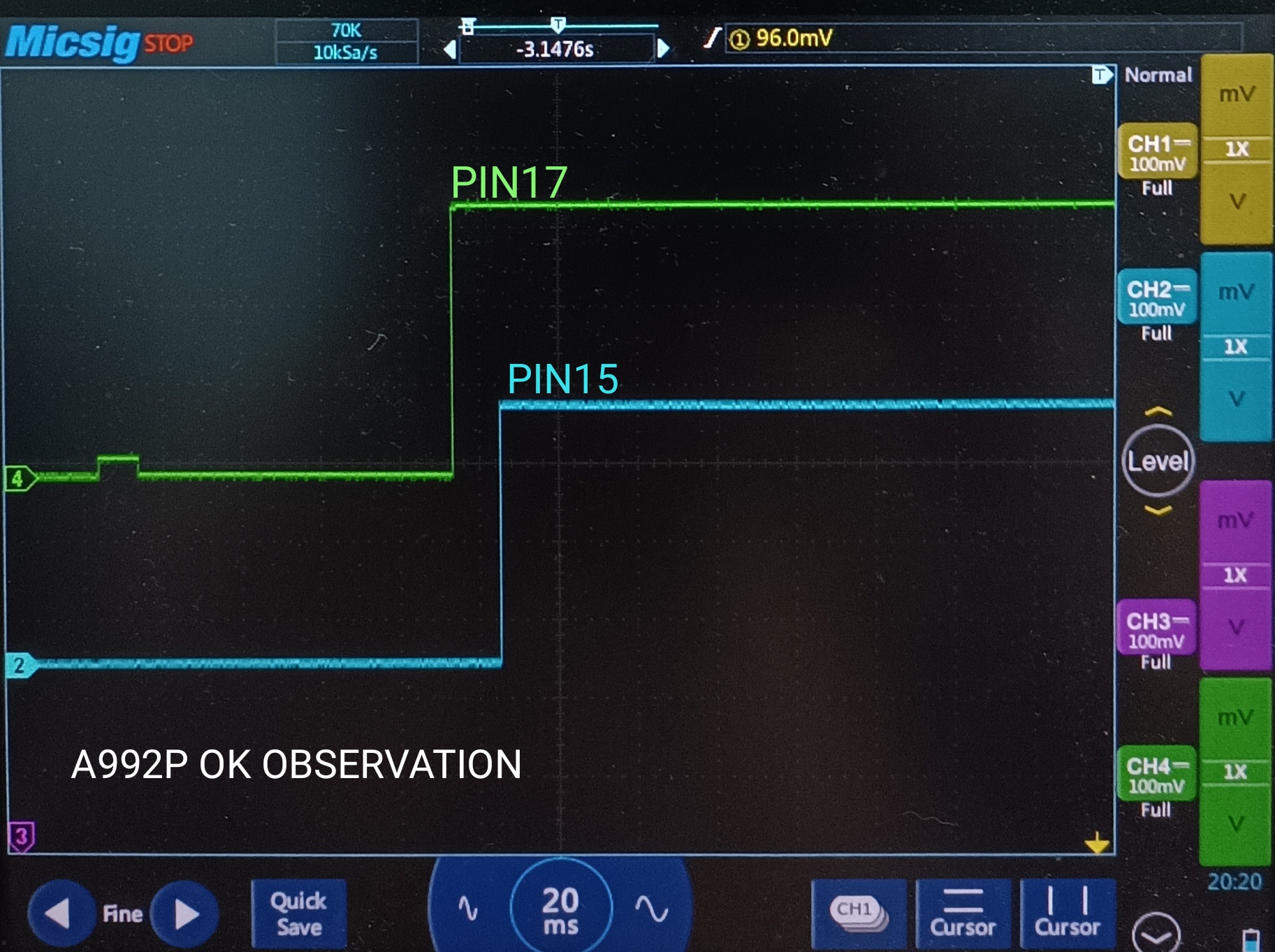

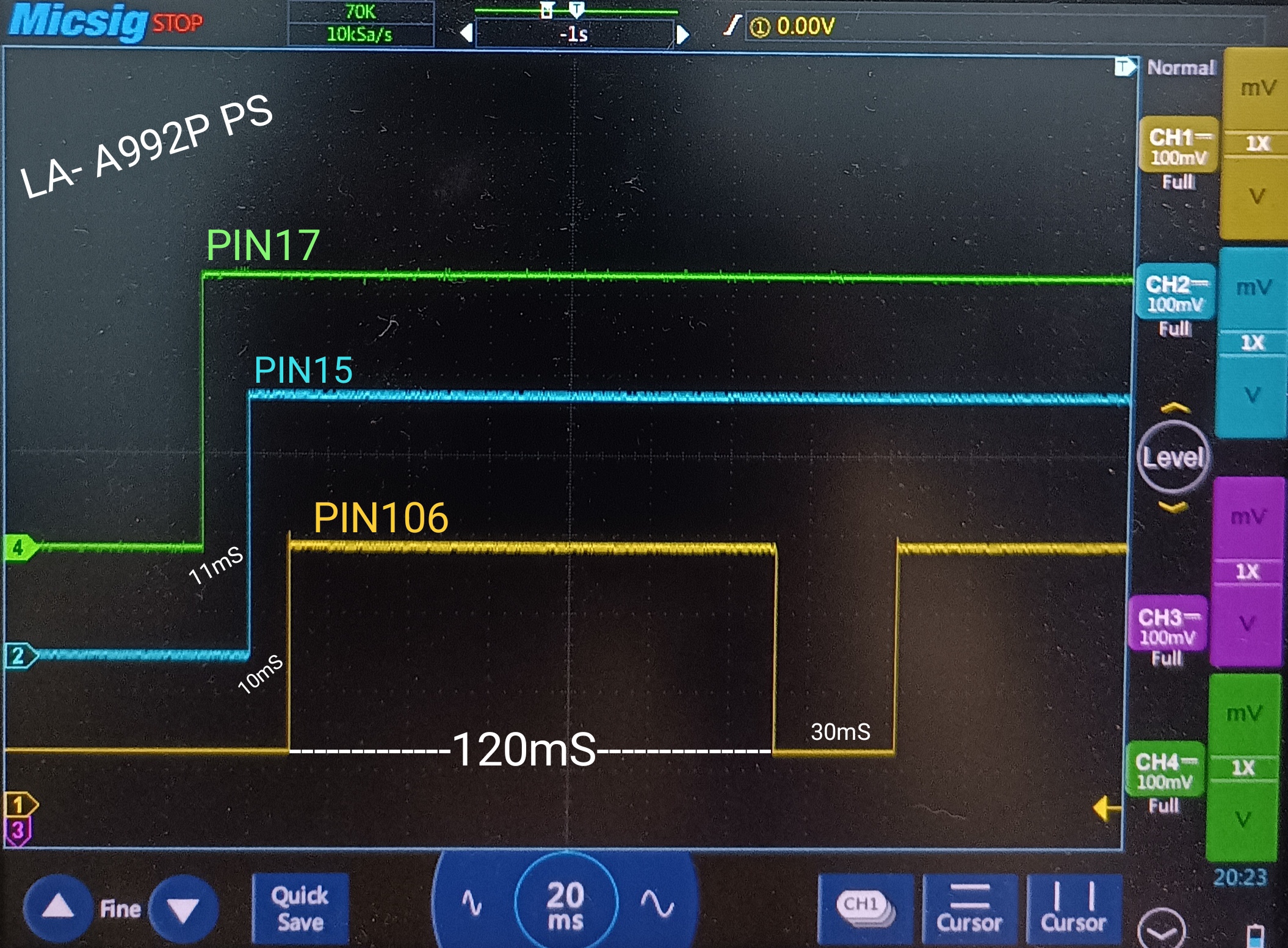

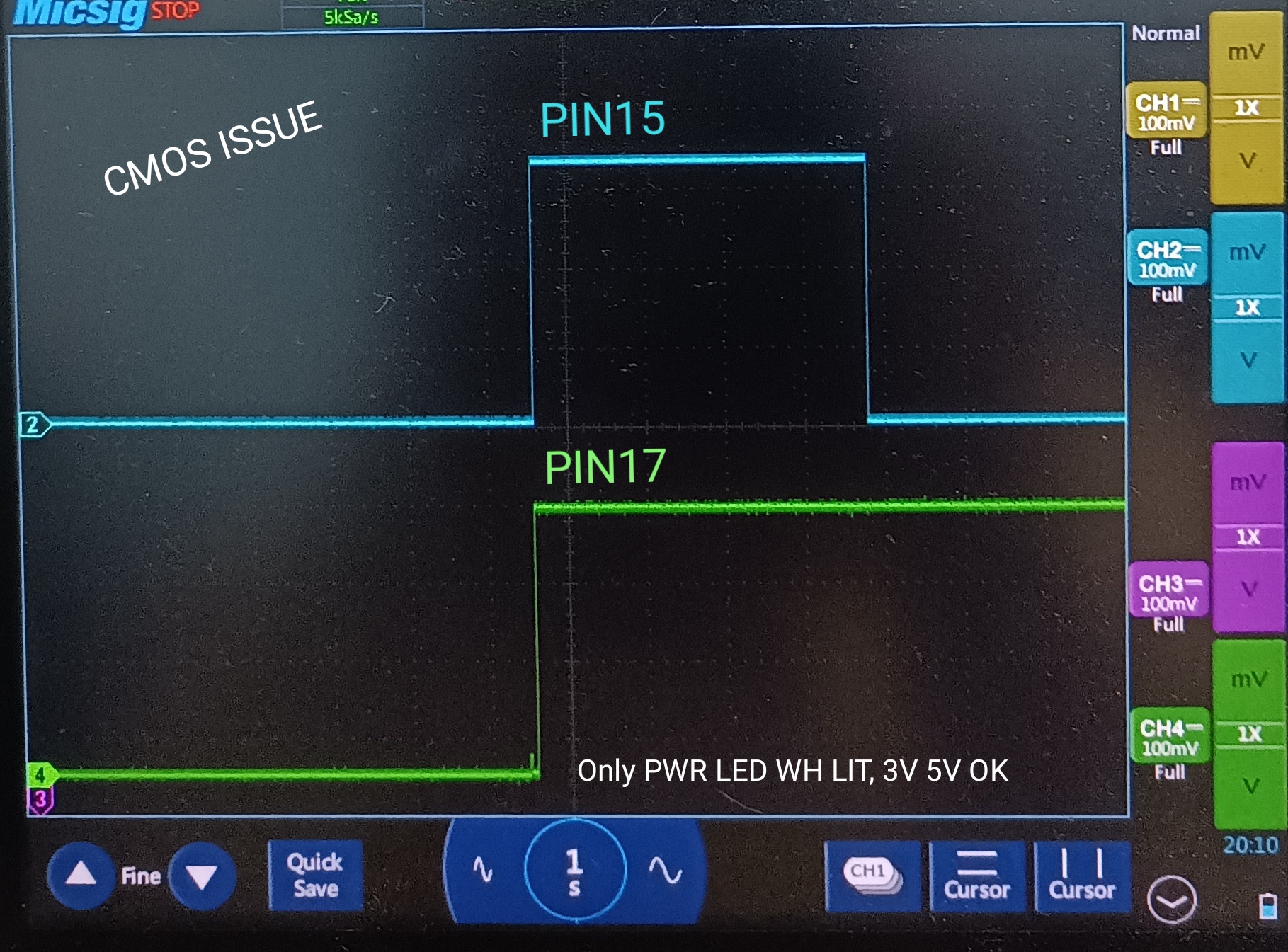

Found Q30 not transfer PCH PWR.Replaced MOSFET now PMPWRBTN# function restored but issue persist.Further testing revealed that PIN17 AND PIN15 HIGH BUT AFTER 4S Pin15 GO DOWN And No S4#-S3#.
 |  |

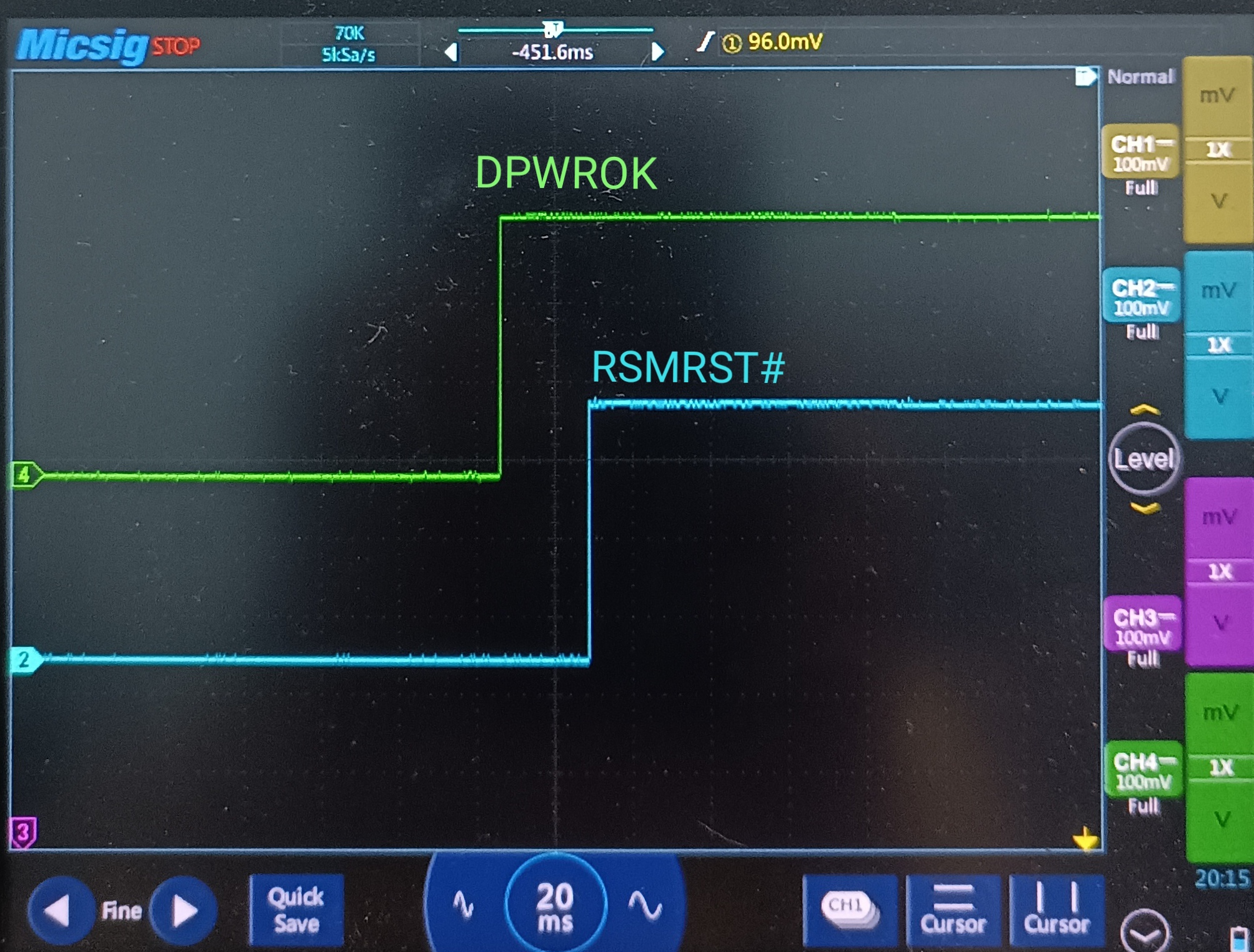

DPWROK,RSMRST#,LID# etc. All EC Requirement fulfil.
 |
|
So Clear CMOS, Now all fine.Board Powered and working flawless.
 |
