HP Pavilion 15z-G7HA NO POWER ON,ACLED BLINKS & CYCLE

Test Admin (23 Oct 2025)

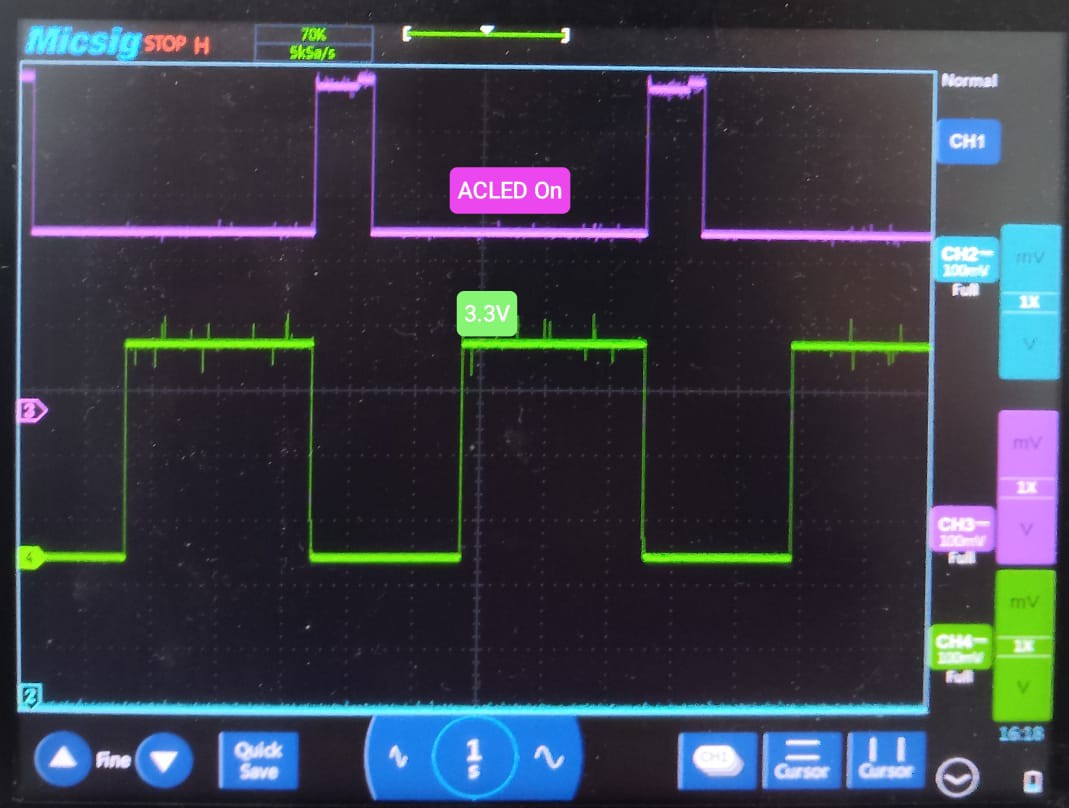

G3HA NO POWER ON BUT AFTER POWER BUTTON PRESS 3V 5V 1.8V SUPPLY CYCLES AS below WITH ACLED BLINK AND CYCLE AS SHOWN ABOVE.

RTC CRYSTAL FOUND FAULTY

REPLACED ALL OK

OBSERVATION:

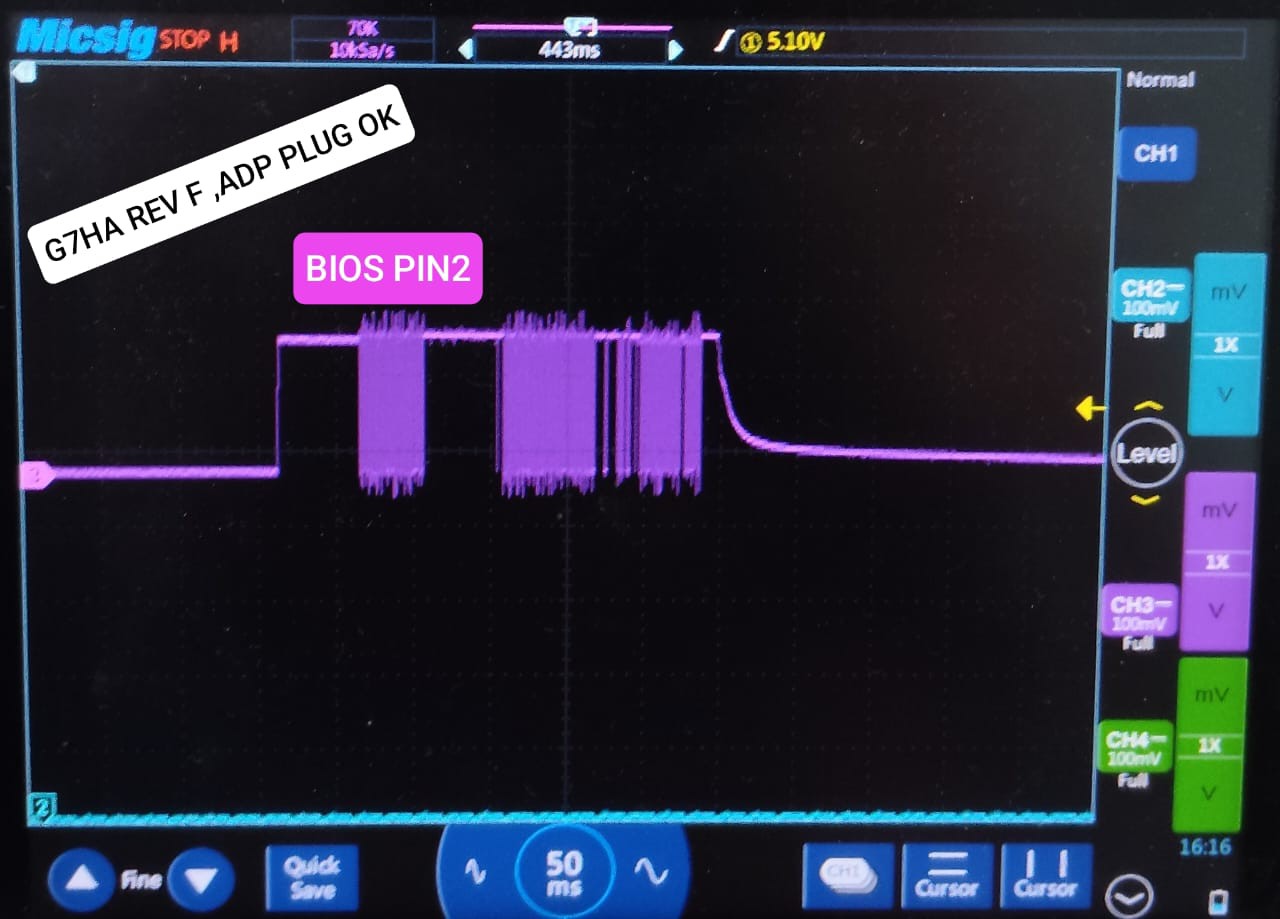

UPON ADAPTER PLUG BIOS/UEFI PIN2 AS BELOW WF

NOTE: ALWAYS OBSERVE BIOS DATA OUT PIN2 UPON ADAPTER PLUG
