HP Elitebook 745 G4 TRAVOLTA-6050A2834601-MB-A01 Repair Manual (short)
T
Test Admin (13 Jan 2026)
HP Elitebook 745 G4 TRAVOLTA-6050A2834601-MB-A01 Repair Manual :
HIGHLIGHTS
| HP Elitebook 745 G4 |
| TRAVOLTA-6050A2834601-MB-A01 |
| SPS: 915914-001 |
| COVERED CR2032 CMOS CELL ON CN4700 PIN1 3V |
| SIDE DOCKING PORT |
| ON BOARD TYPE-C PD,DP,USB 3.0,LAN PORT,HP JACK,SD CARDREADER |
| 4-WIRE FAN SPS: 821163-001 |

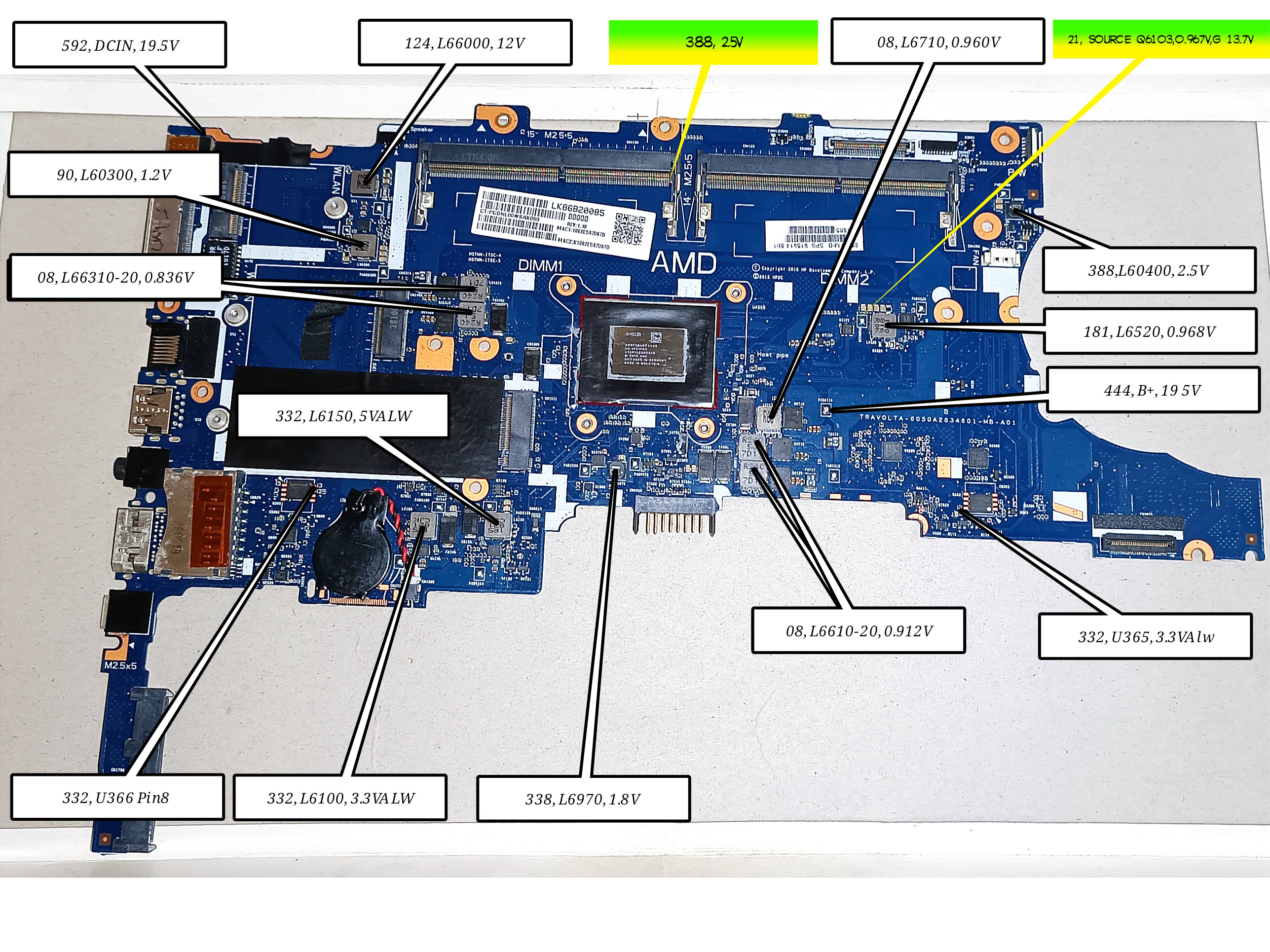

NOTE: FIRST CHECK FULL BOARD LAYOUT WITH DIODE VALUES AND RESPECTIVE VOLTAGES
FOR DETAILED DIODE VALUE CHECK TABLE BELOW:
| DCIN | 605 | 19.5V |
| LIM | 604 | |
| VBUS | 627 | |
| B+ | 455 | 19.5V ADP |
| L6100 | 343 | 3.3V |
| L6150 | 340 | 5V |
| L60000 | 138 | Batt |

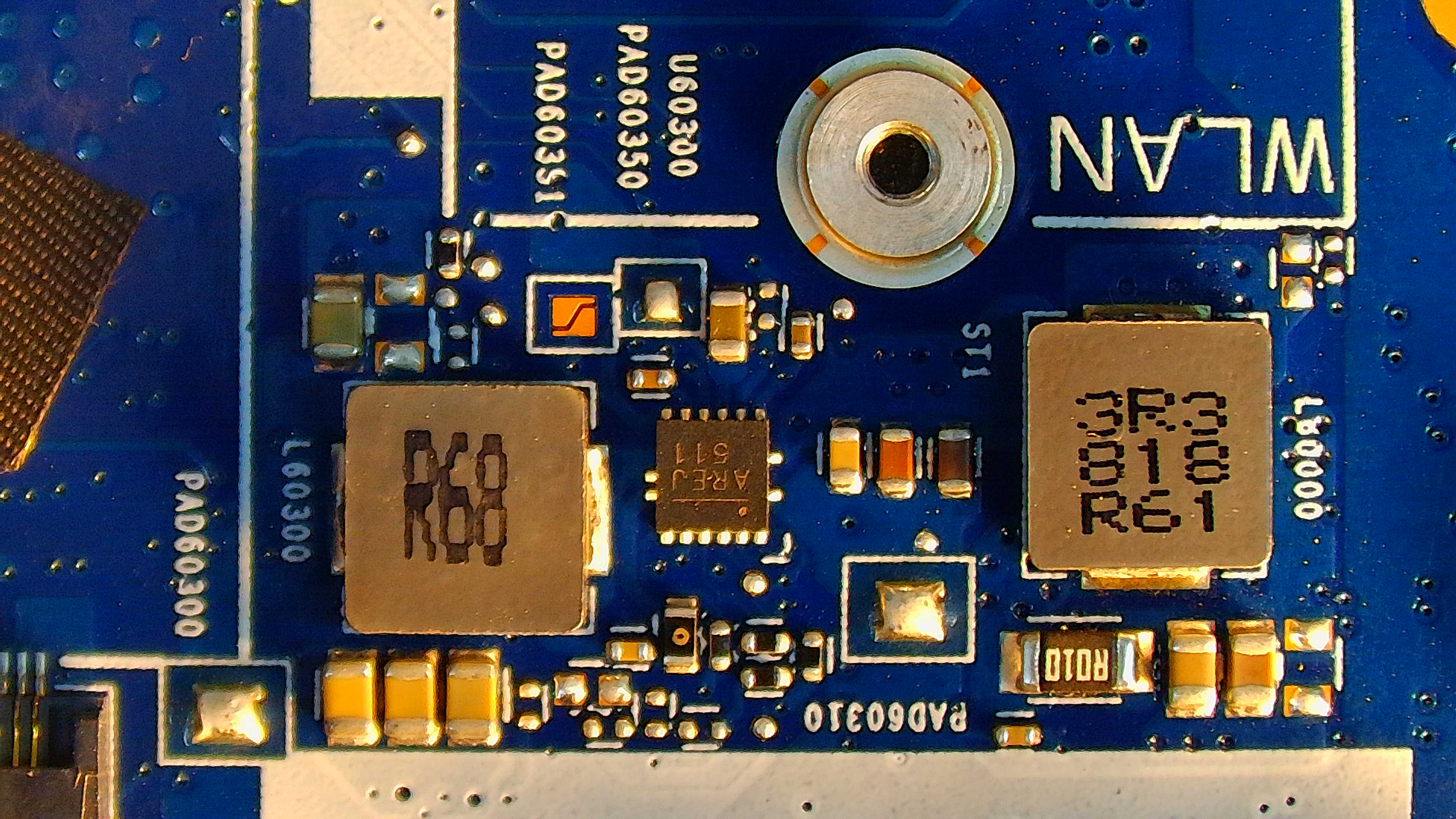

| L60300 | 100 | 1.2V |
| L60400 | 395 | 2.5V |

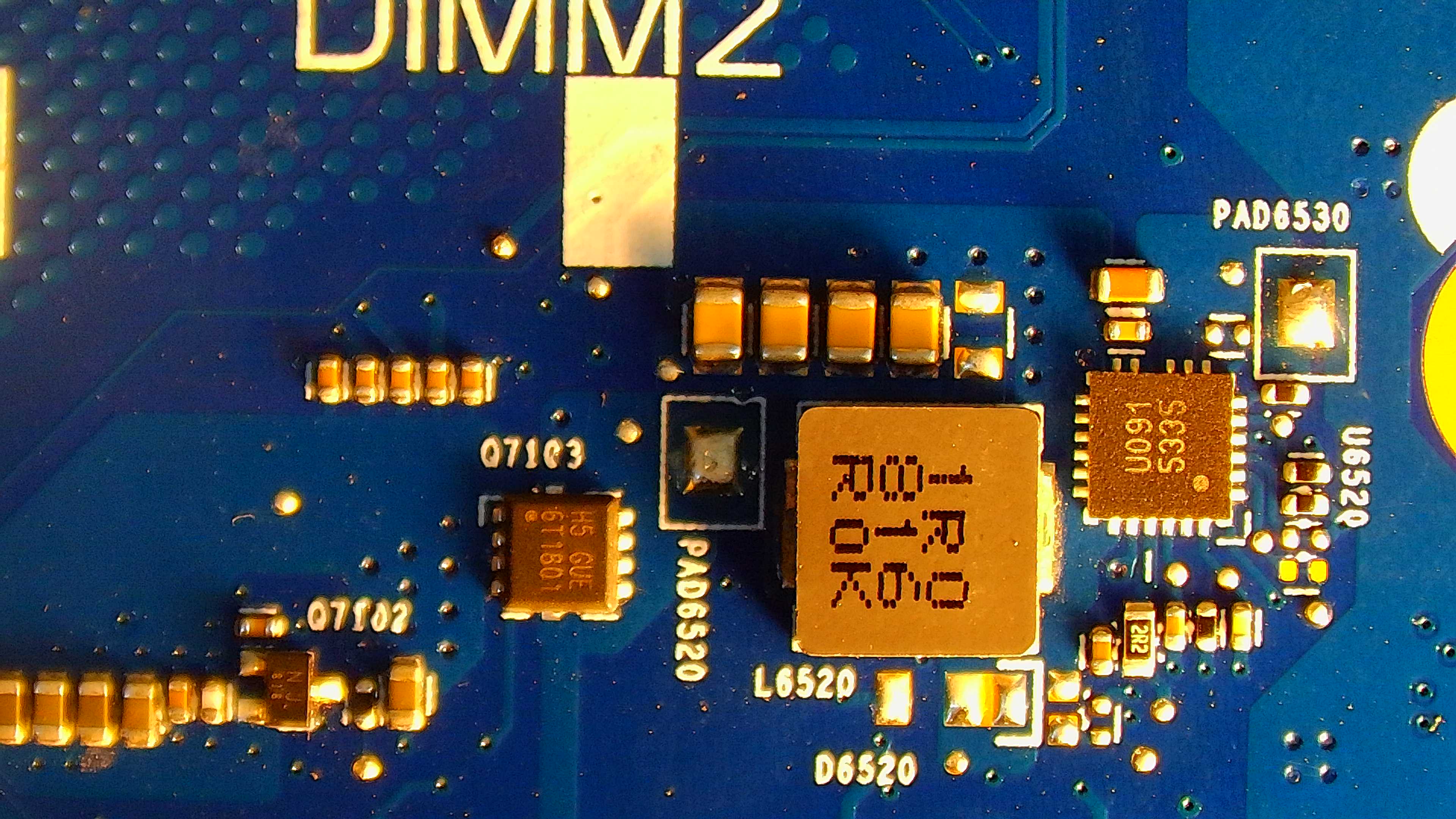

| L6520 | 187 | 0.95V |

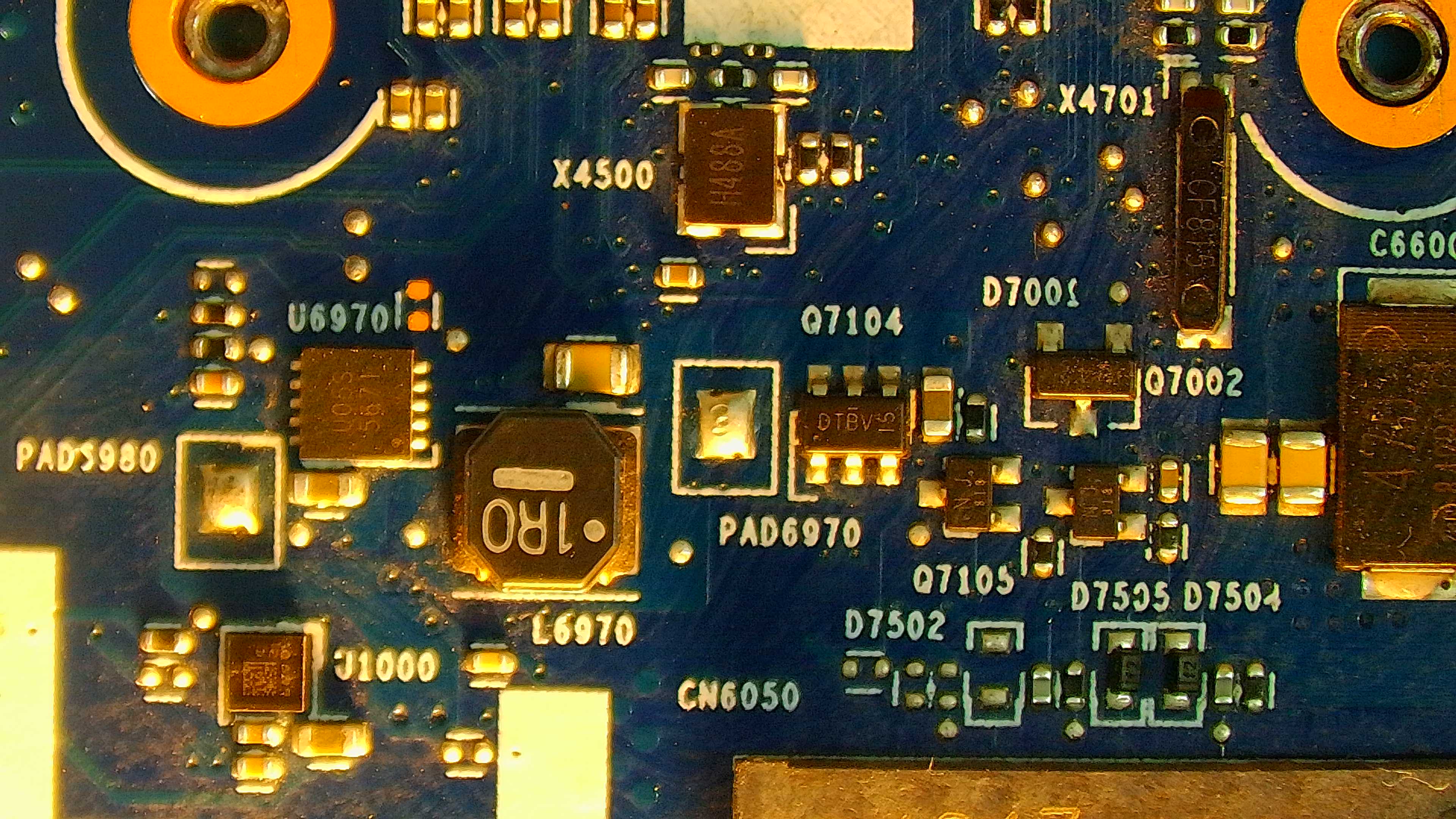

| L6970 | 356 | 1.8V |
| BOTH BIOS PIN8 | 343 | 3.3V |
| PD FIRMWARE PIN8 | 363 | 3.3V |
| L6710 | 8 | VCCSA |

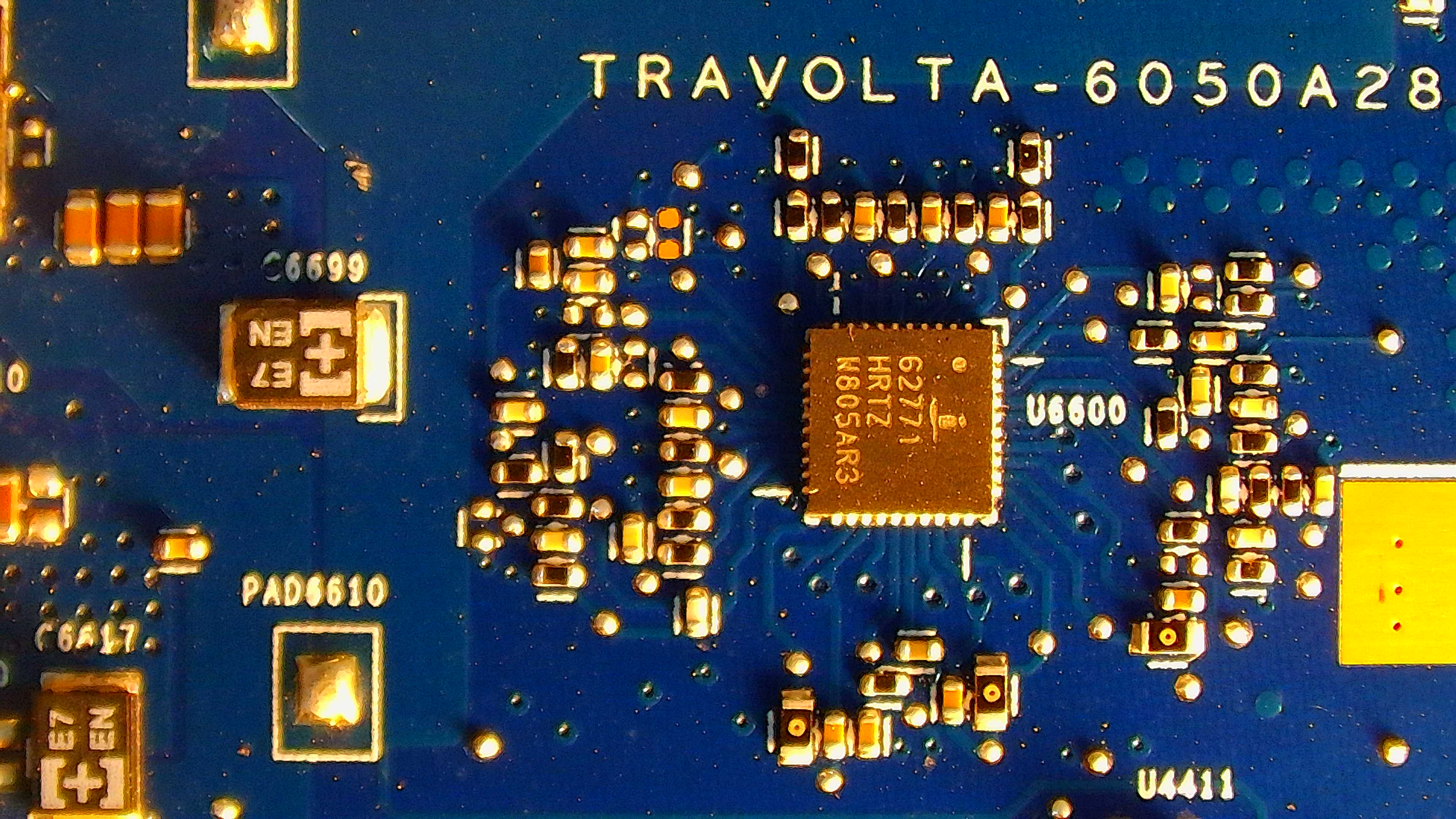

| L6610-20 | 9 | VCORE |
| 2.5V | 395 | VPP |
| L66310-20 | 10 | VCCGT |
| S-Q7050 | 274 | 3VS |
| FAN PLUGGED | 484,GND,537.568 | |
| BATTERY | GND GND,NA NA,528,473,138,138 | |
| ON/OFF | 1792 | 2.6V |
| Q7021 | D-123 S-9 | |
| Q400 | D-364 S-338 | |
| P2 | 1475 | |

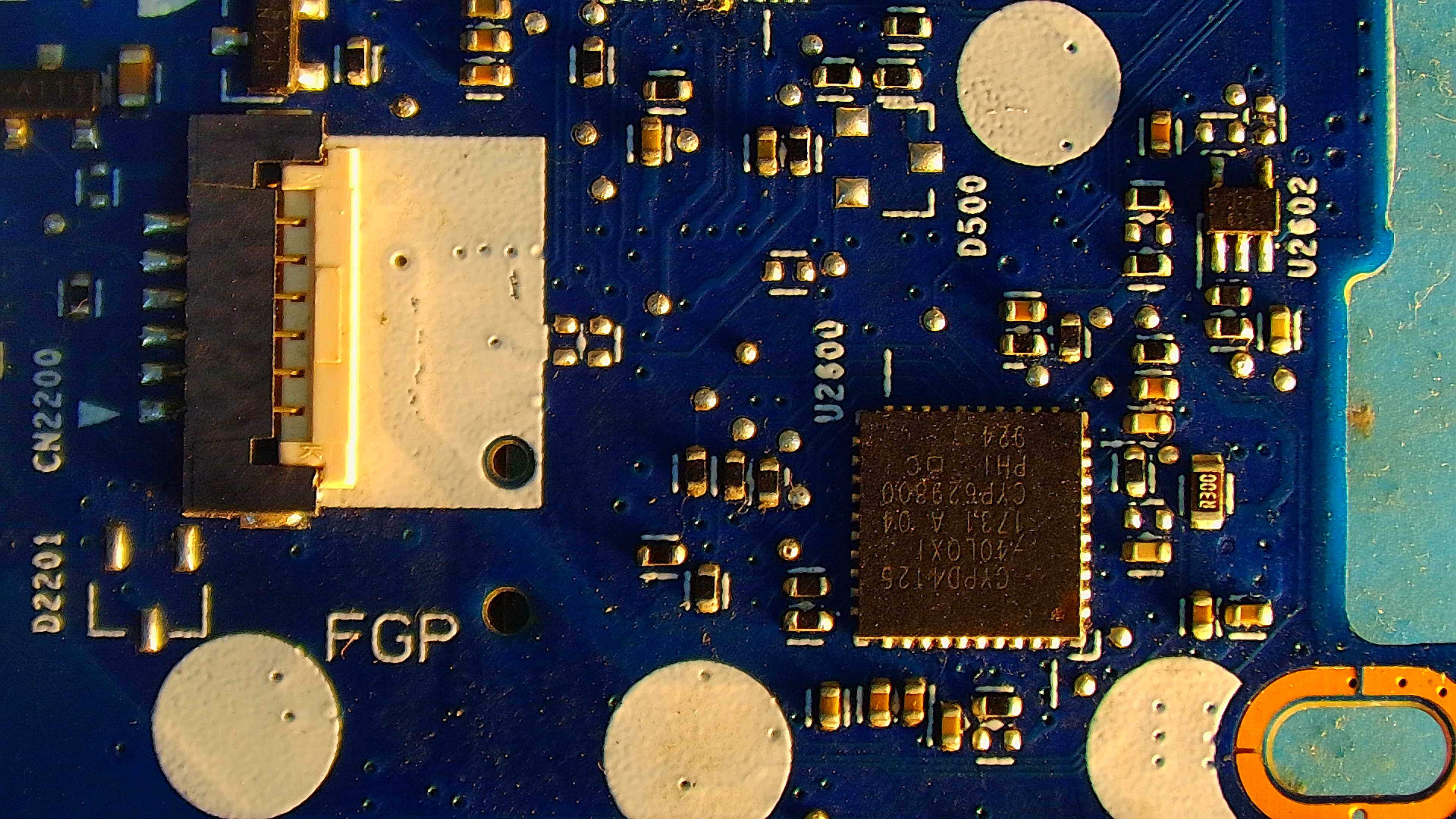

| U2602 | PIN4 505 PIN5 343 | |

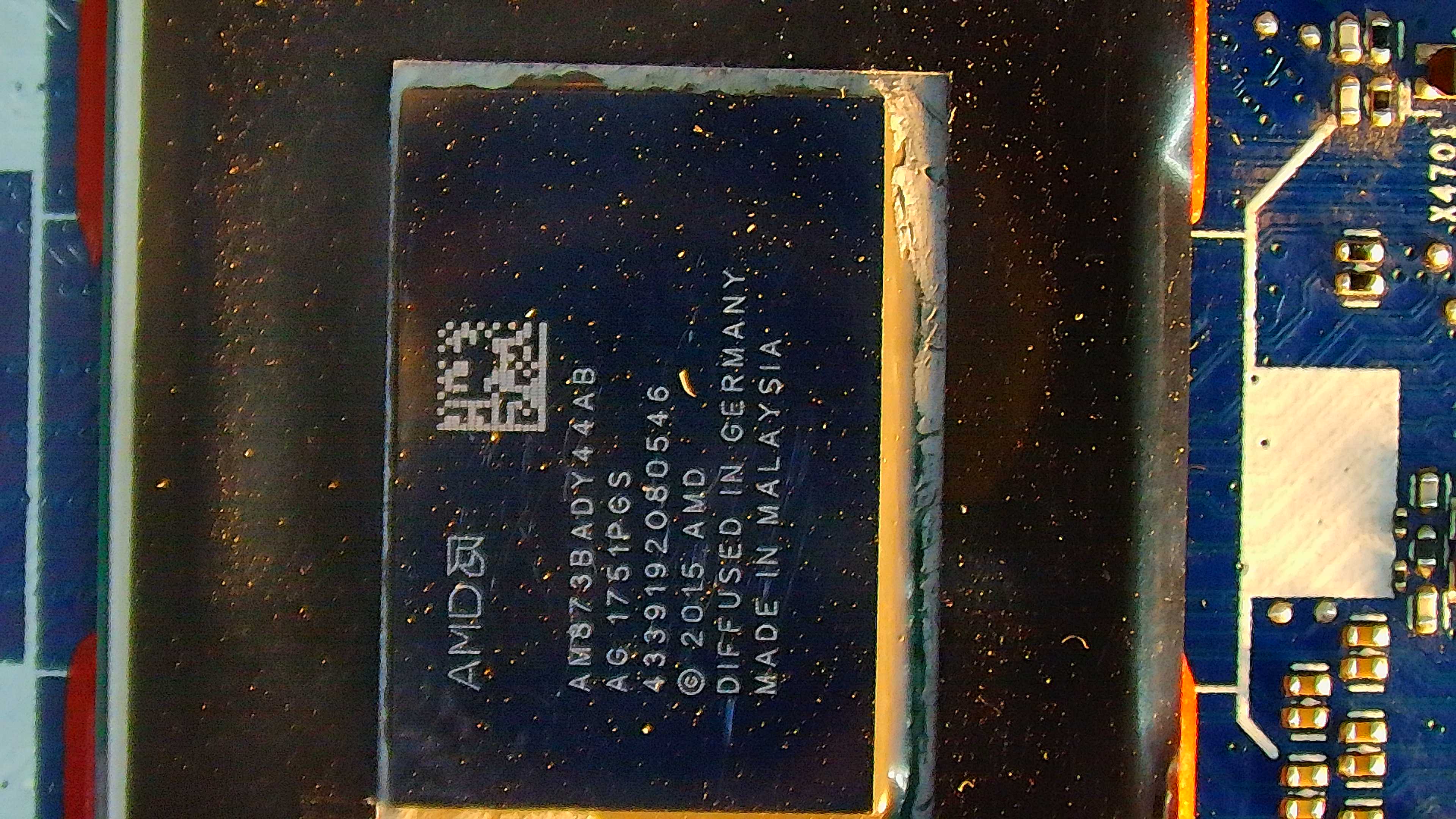

USE MICROSCOPIC IMAGES TO VARIFY COMPONENT
 |  |
 |  |
 |  |
FULL REPAIR MANUAL UPLOADING SOON.... STAY LOGIN ON www.EasyMB.in
