HP 15-DA GFX-LA-G07CP NO VCORE TRIPS

Test Admin (16 Mar 2026)

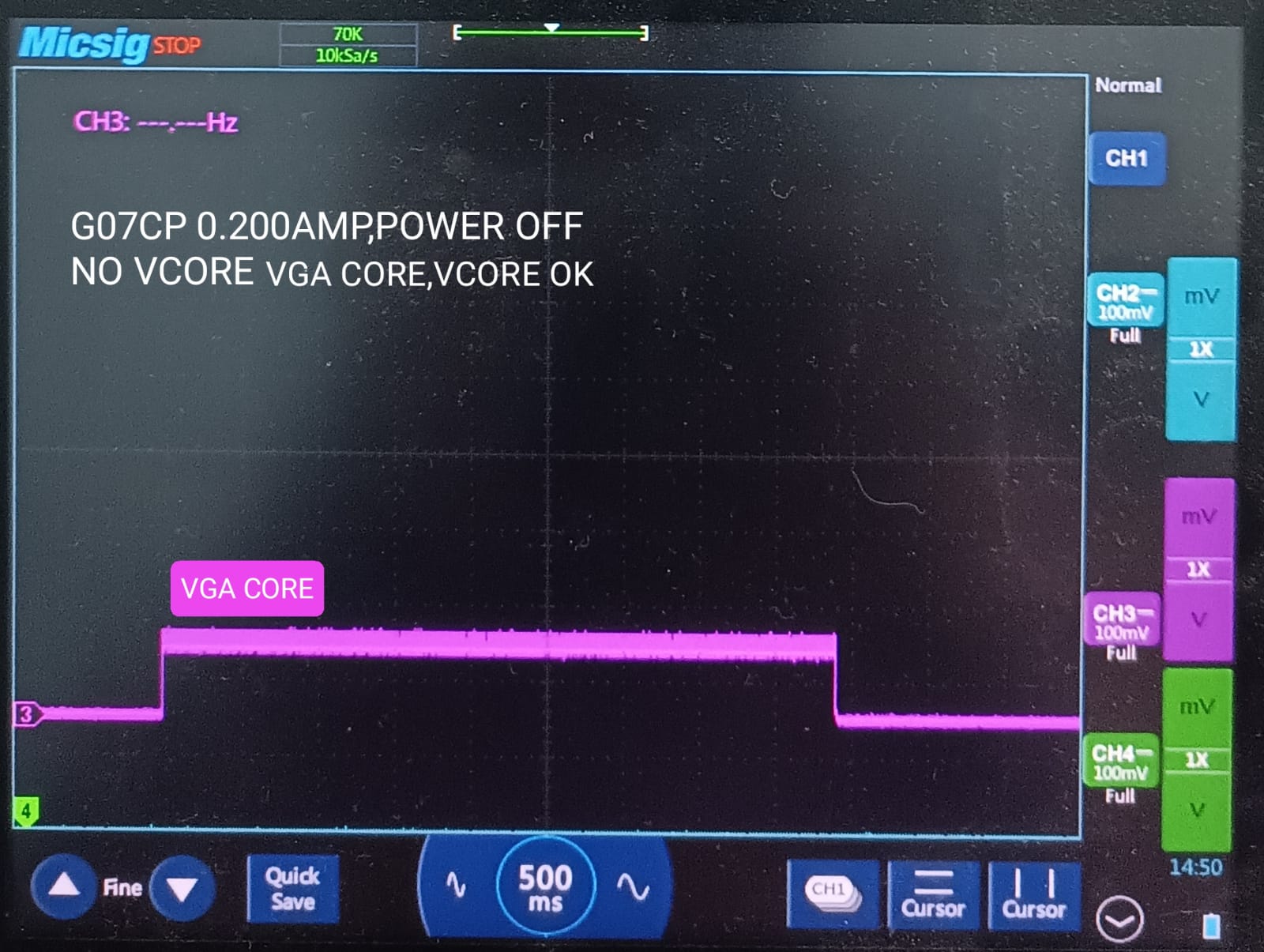

HP 15-DA GFX-LA-G07CP POWER ON TRIPS WITHIN 4SECONDS.

PSU SHOWS 0.220AMP

MEASURED SLP_S3# FOR 200mS

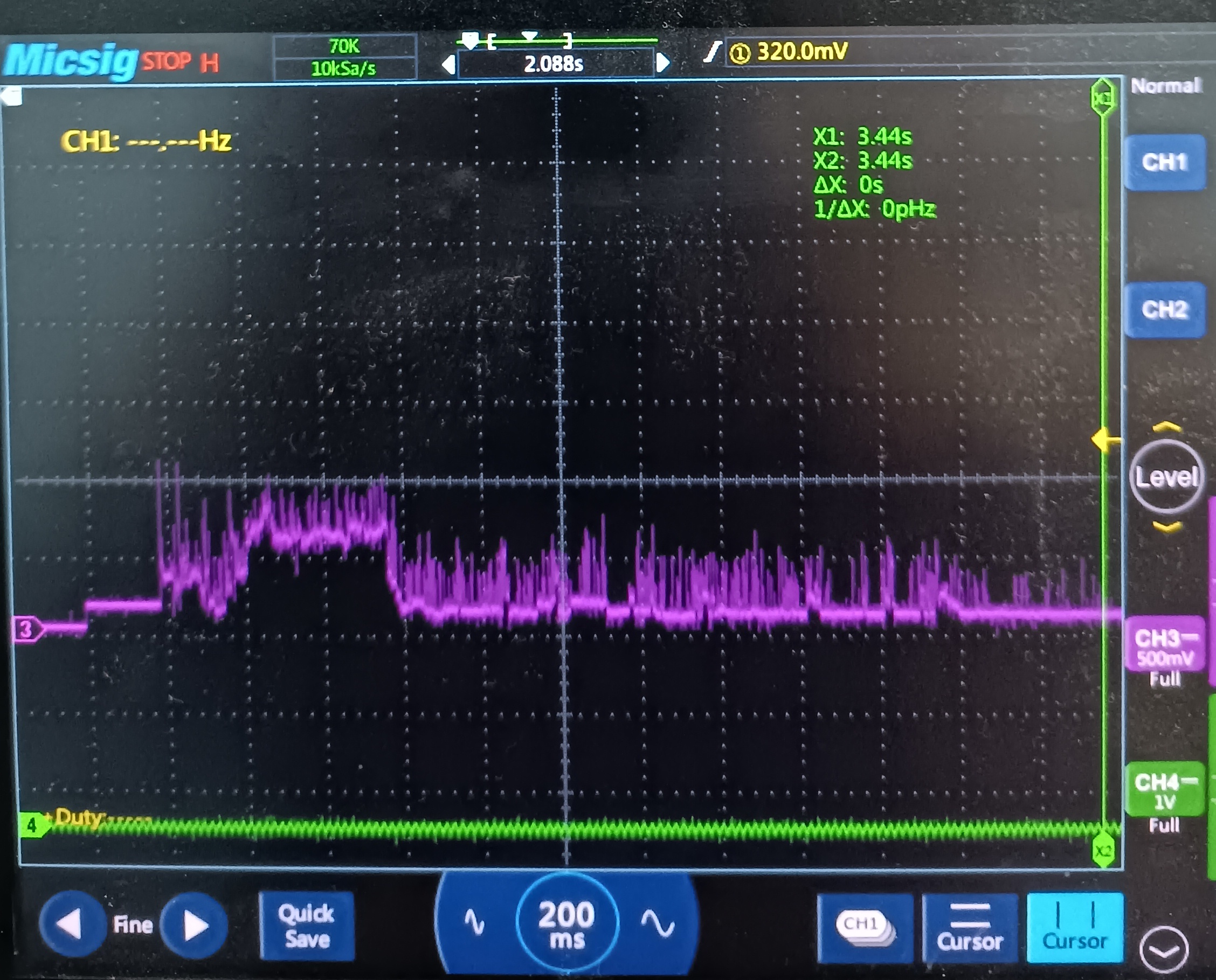

FOUND VCCST VOLTAGE ABNORNAL WHILE OUT_FET 1.02V IS STABLE

24MHZ PCH REF CLOCK IS FOR 200mS

VCCST FOUND ABNORMAL BY UC5 PIN14 DUAL POLE SWITCH EM5209VF

REPLACED SWITCH NOW ALL OK

FULL REPAIR MANUAL UPLOAD SOON... STAY LOGIN ON OUR DATASITE....www.EasyMB.in
