Laptop
DELL 3478 17841-1 NO POWER
T
Test Admin (30 Sep 2025)

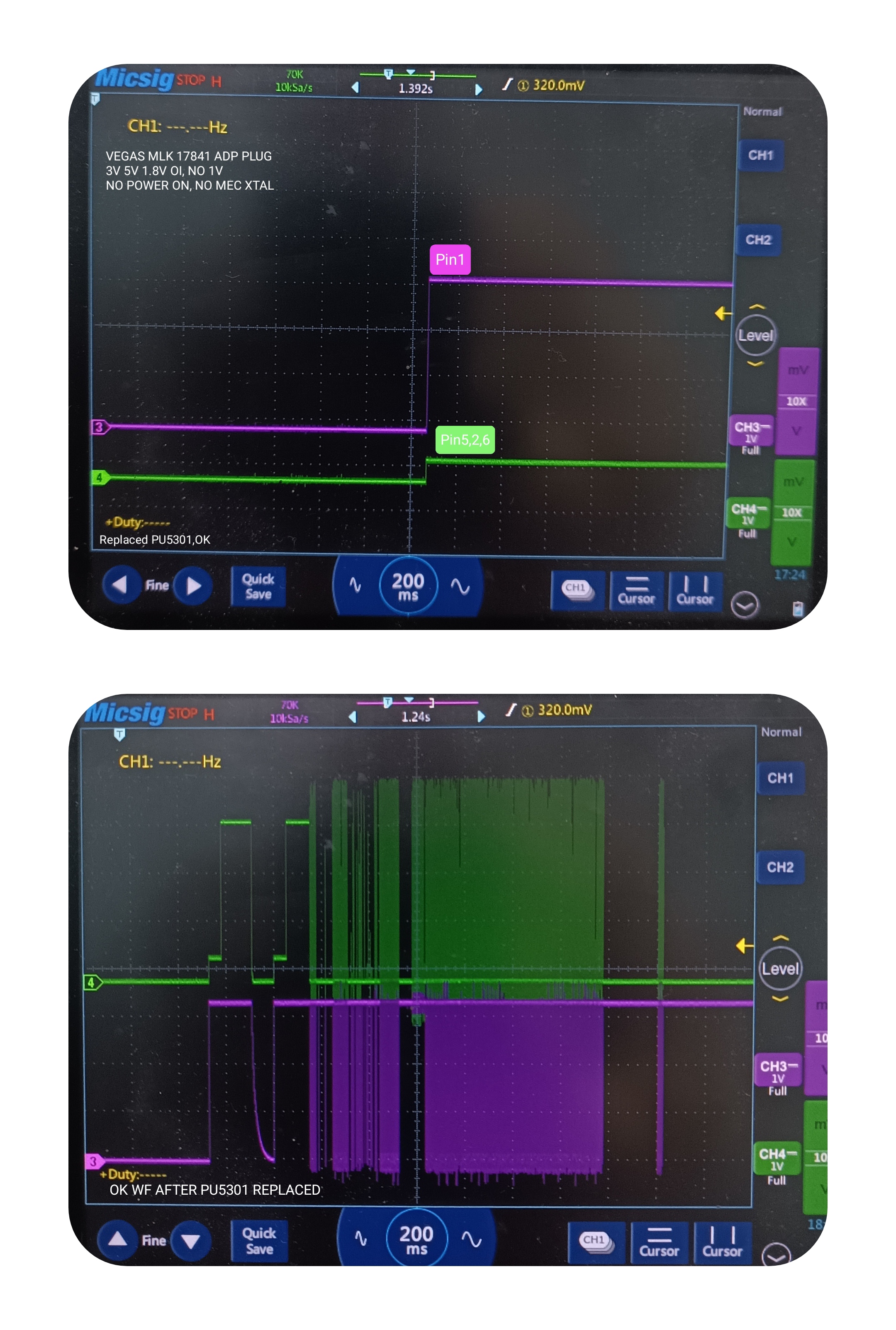

3.3VALW, 5VALW, 1.8VALW OK BUT NO SPI PULSE SEEN on BIOS/UEFI Pins
NO MEC X'TAL OSC SEEN
NO 1VALW ON COIL BUT IMPEDANCE SEEMS GOOD

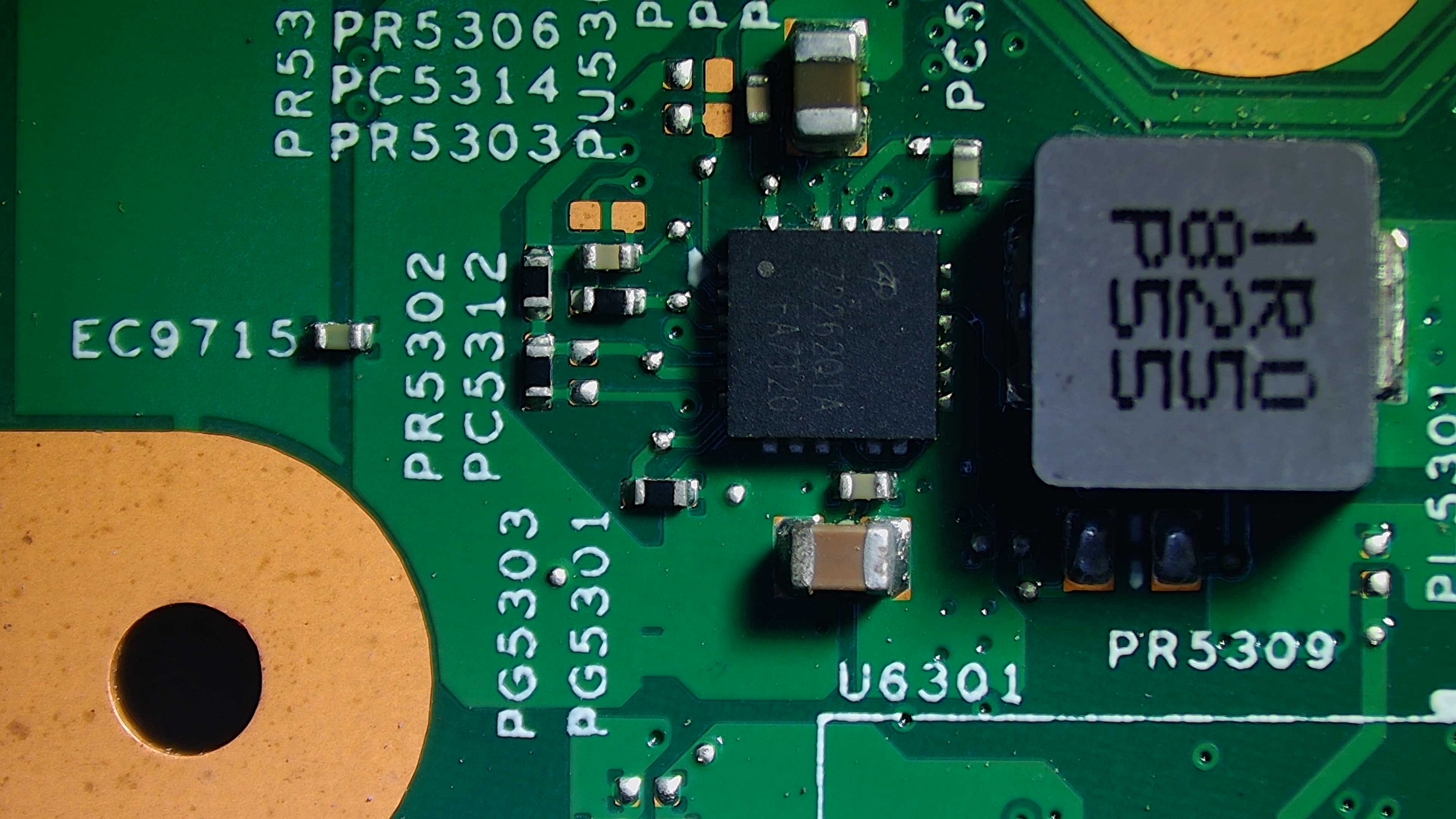

REPLACED CONTROLLER PU5301 NOW ALL OK
2AMB-7 WH NO LCD ATTACHED
