EliteBook 830 G6-CATALONI NO POWER,LED BLINKS ZIG-ZAG

Test Admin (16 Mar 2025)

BOARD PART NUMBER CATALONI-6050A3022401-MB-A01

HP EliteBook 830 G6 NO POWER ON

ADP PLUG 13.2V B+ OK AND AD_LIMIT IS 1.01V

LED BLINK ALTERNATIVE

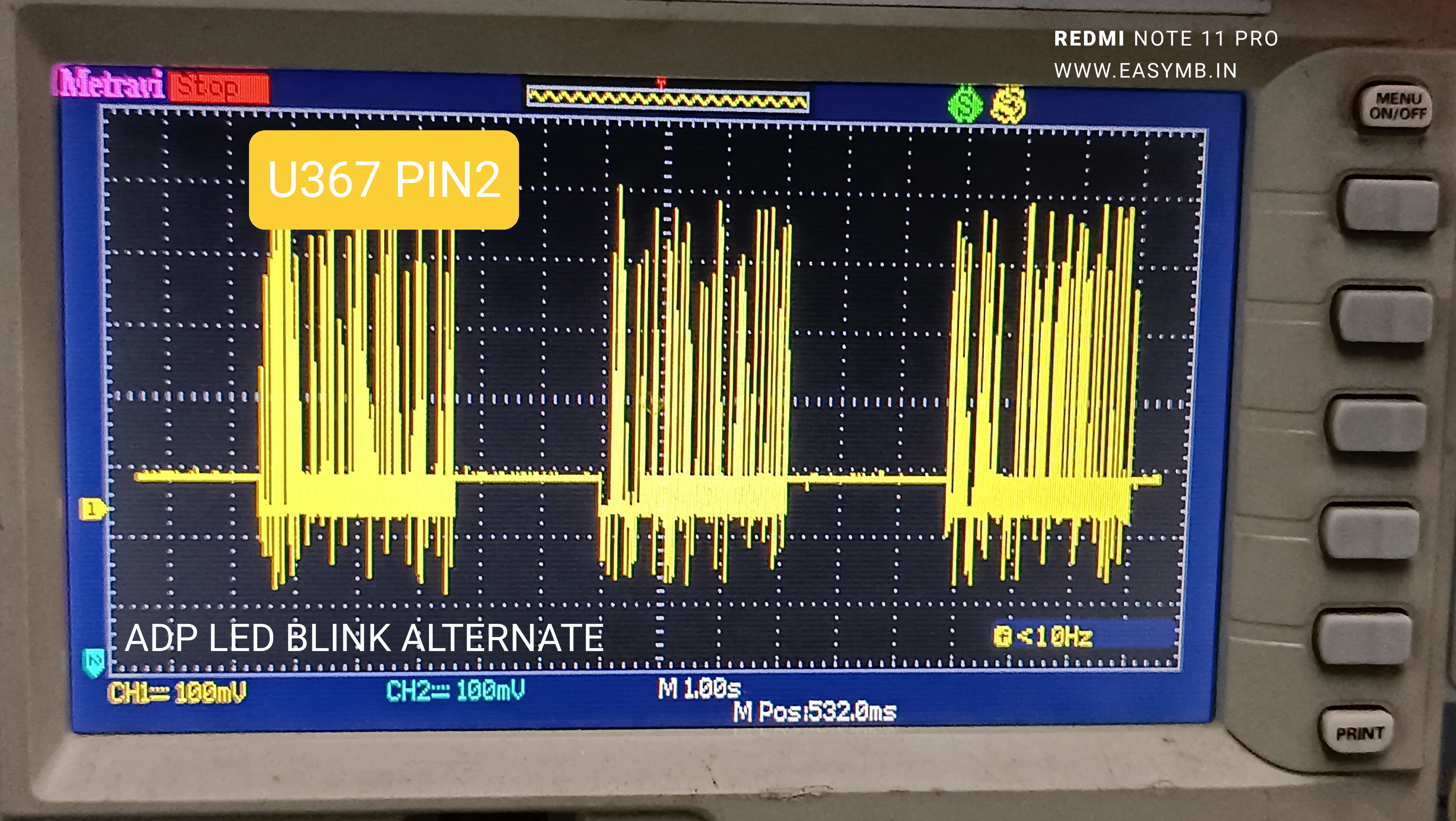

Below WF U367 PIN2 32MB

U367 PIN2 DATA OUT — U367 PIN2 DO FAULTY WAVEFORM

BIOS CYCLE 2.5SEC PAUSE

AFTER BIOS U367 REFLASH

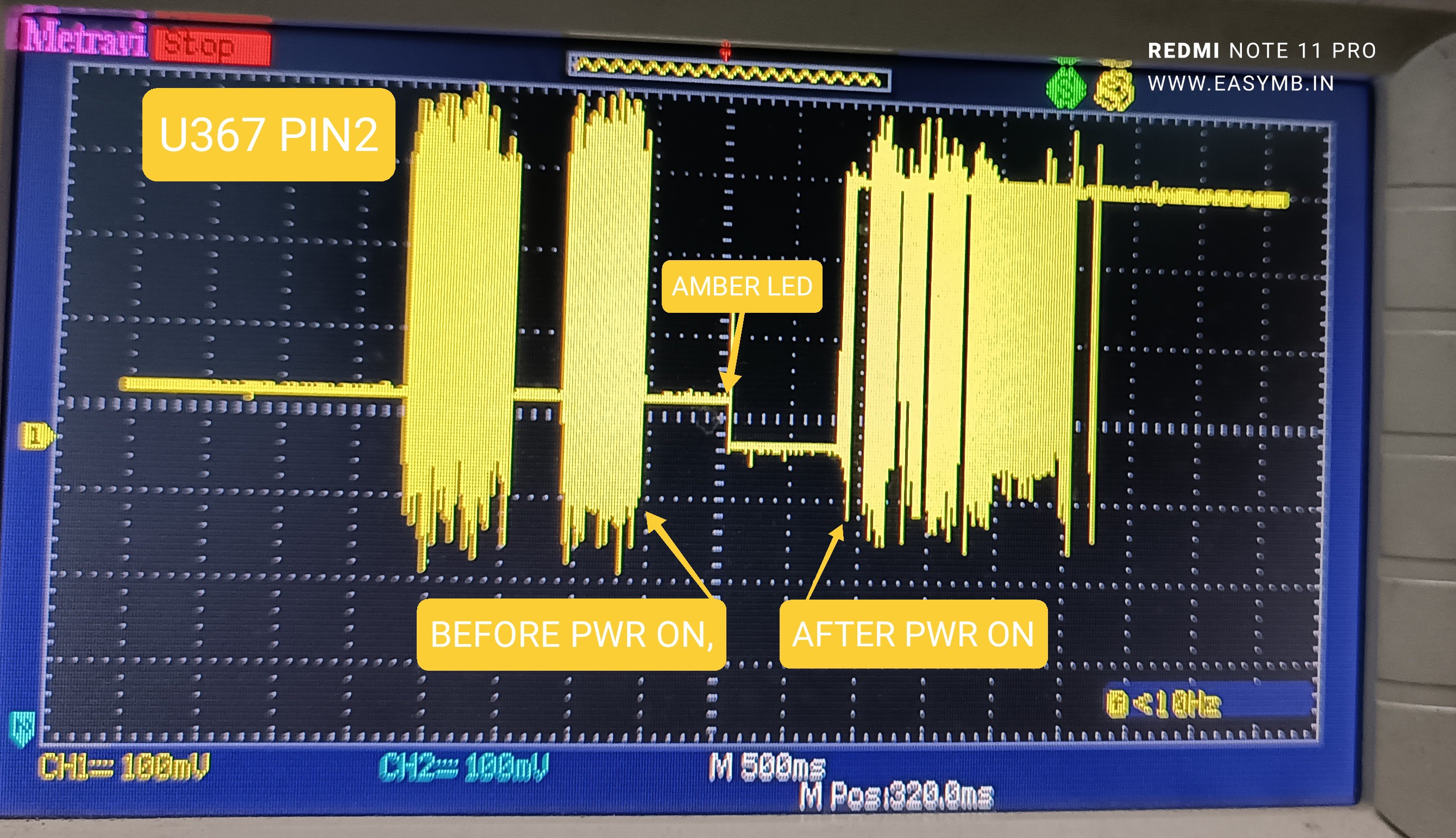

Ok WAVEFORM BELOW BIOS pin2 U367 32MB

FOR COMPLETE REFERENCE MANUAL STAY TUNED TO YOUR OWN DATASITE www.EasyMB.in
