ASUS TUF GAMING A14 FA401WU-6050A3554201-MB-A02 QUICK REPAIR REFERENCE

T

Test Admin (04 Aug 2026)

blog-image

ASUS TUF GAMING A14 FA401WU-6050A3554201-MB-A02 QUICK REPAIR REFERENCE WITH WAVEFORMS,MICROSCOPIC IMAGES ANF FULL BOAD VOLTAGE-DIODE VALUE IS HERE:

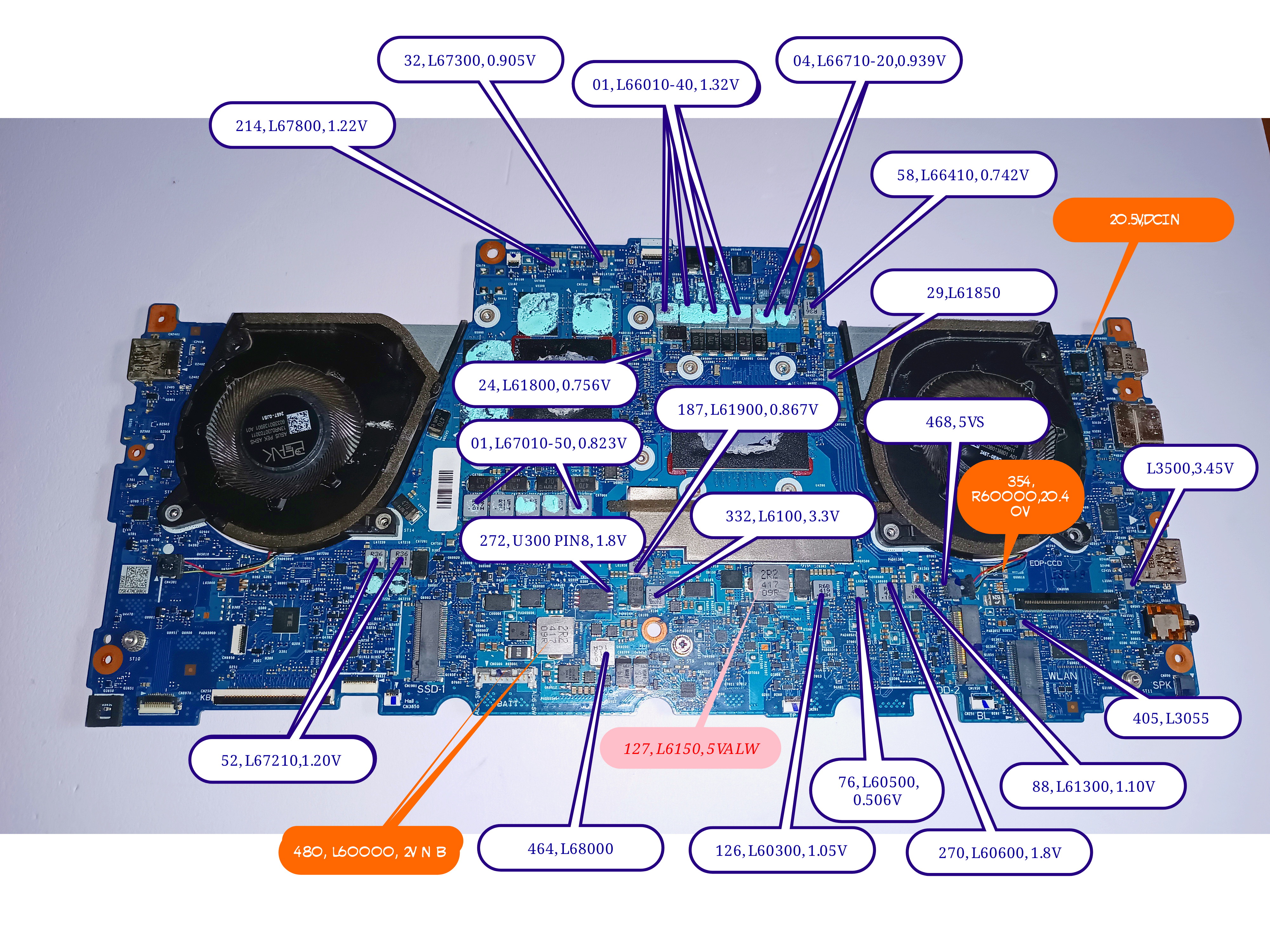

AMD RYZEN AI9HX37 WITH NVIDIA GEFORCE RTX 4060 GPU DIODE VALUE AND VOLTAGES

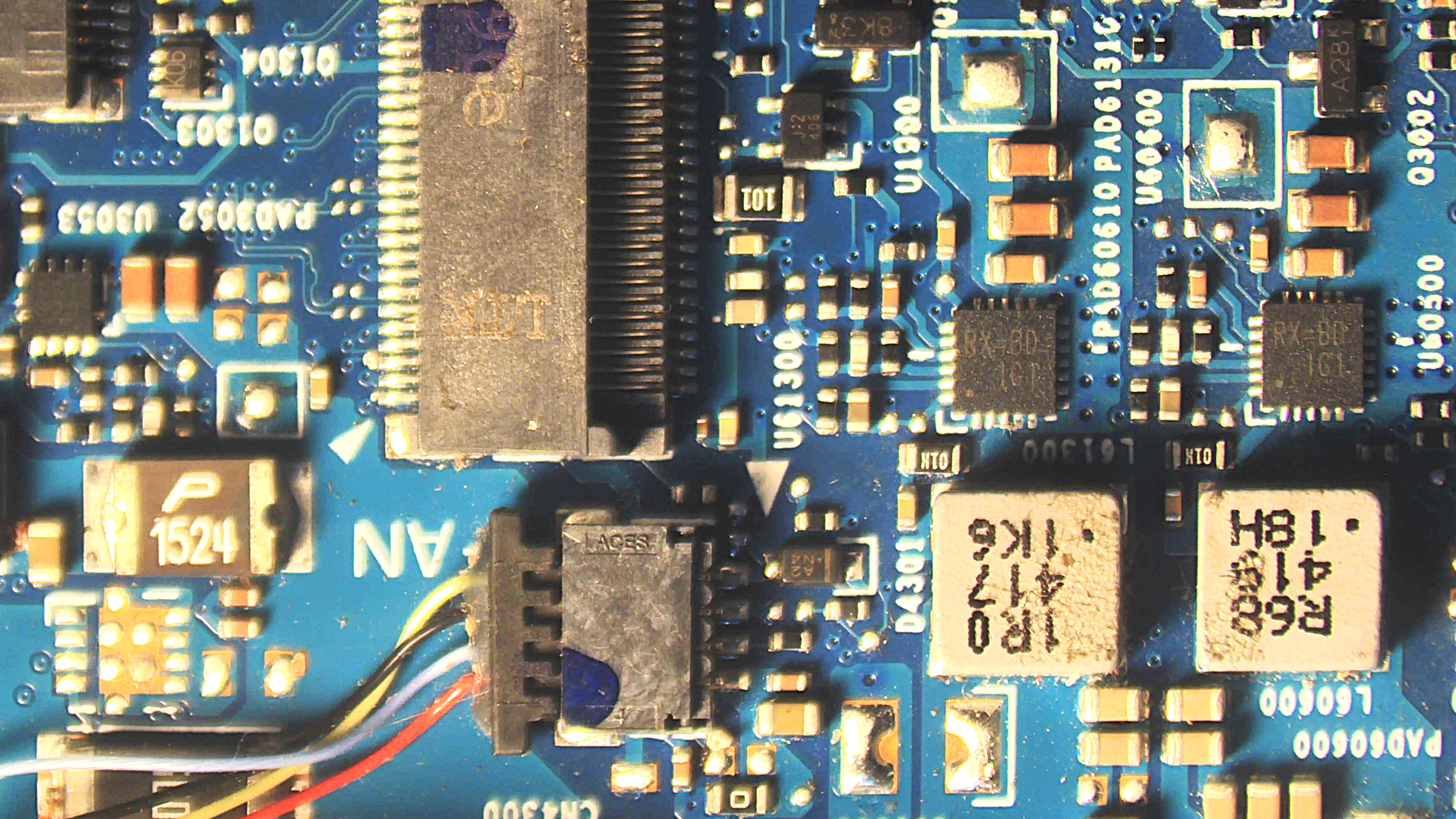

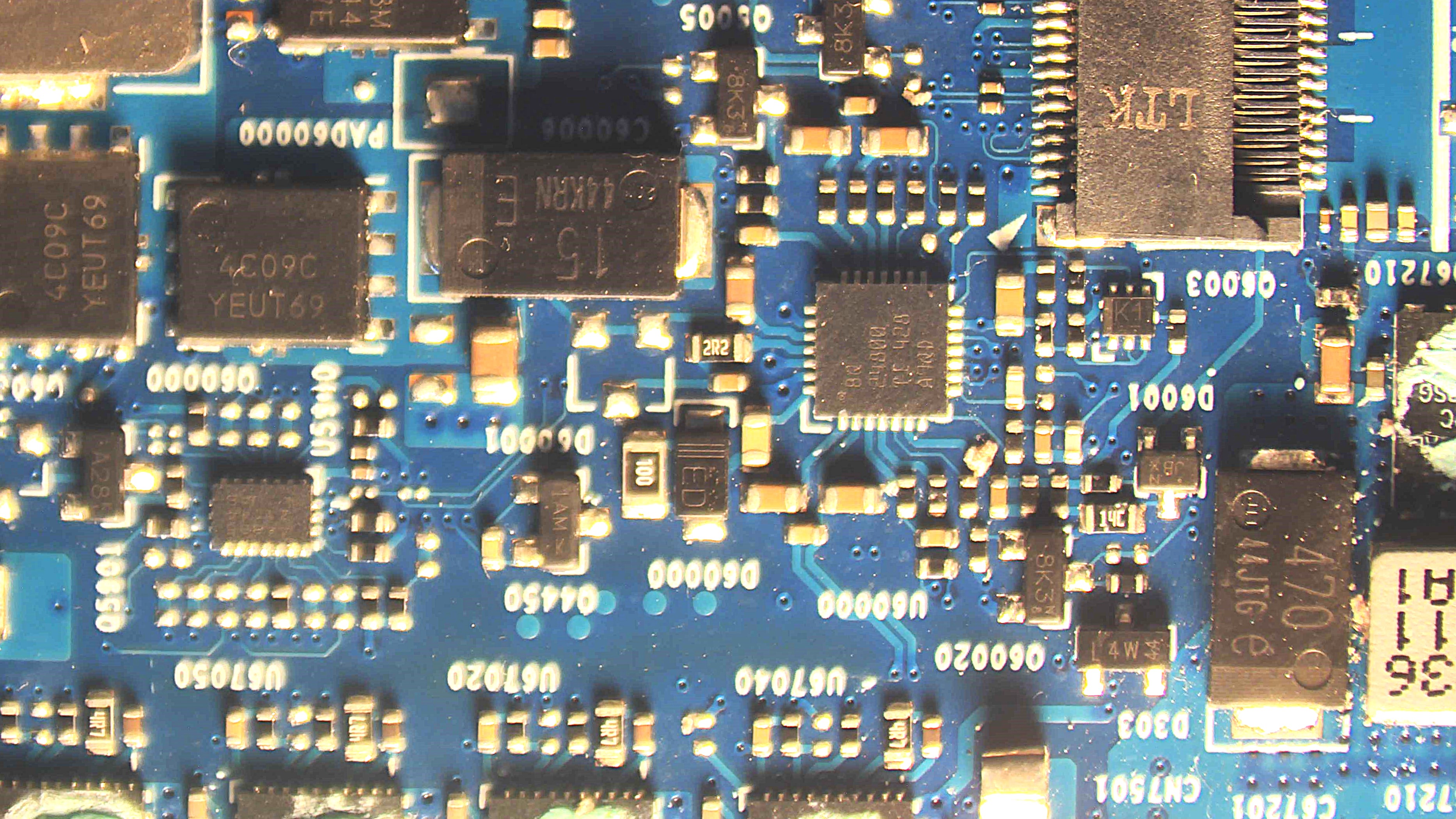

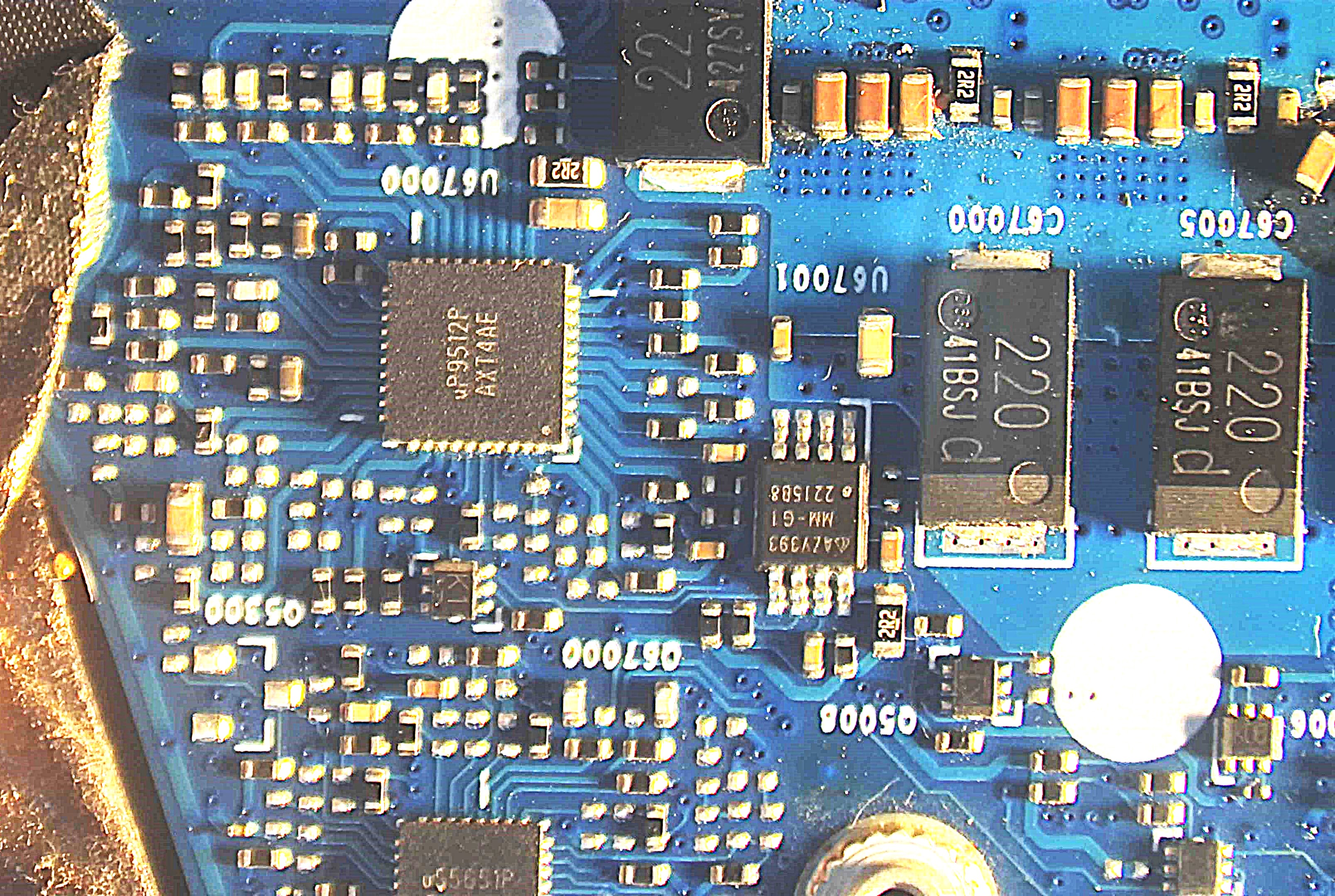

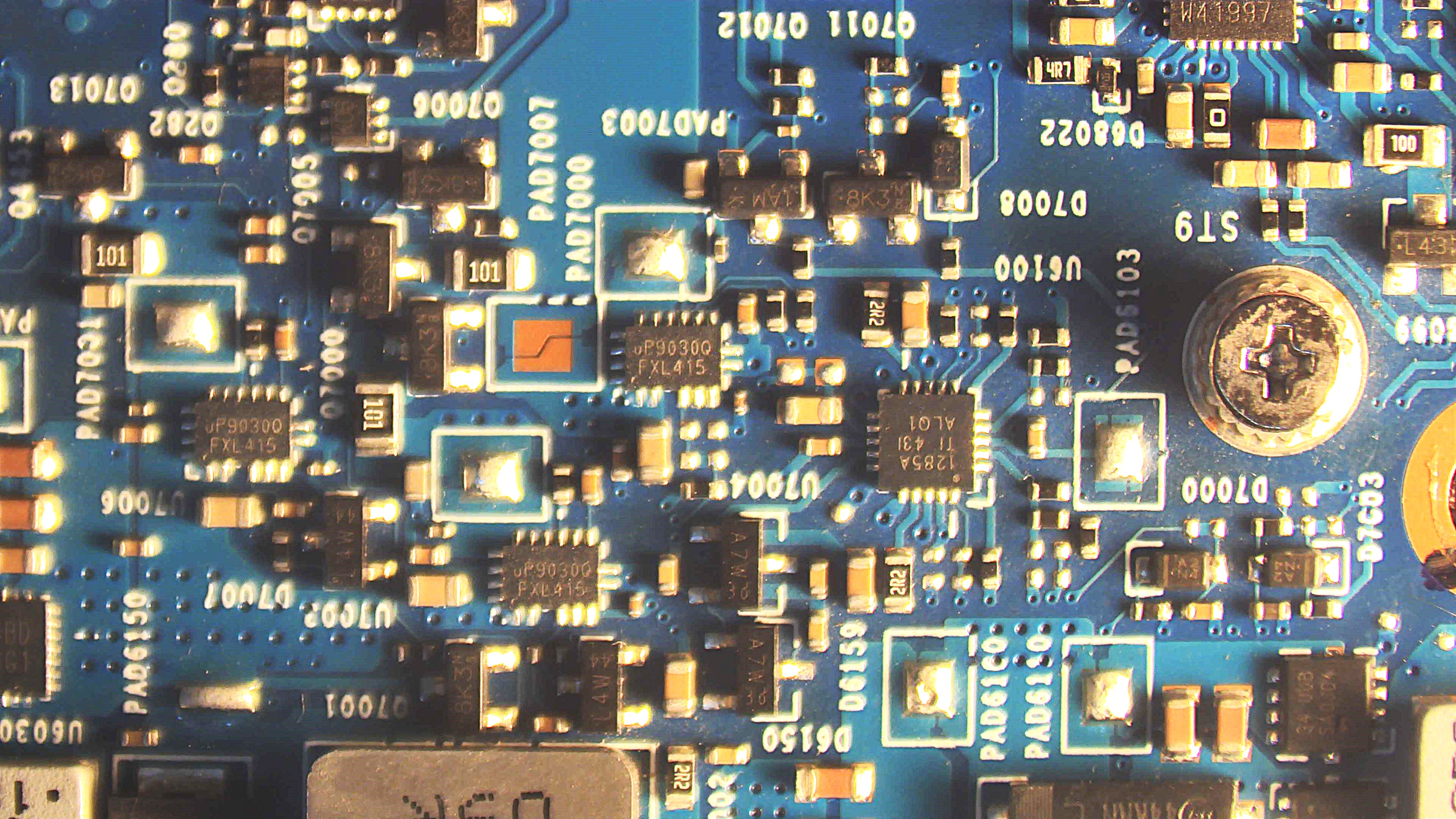

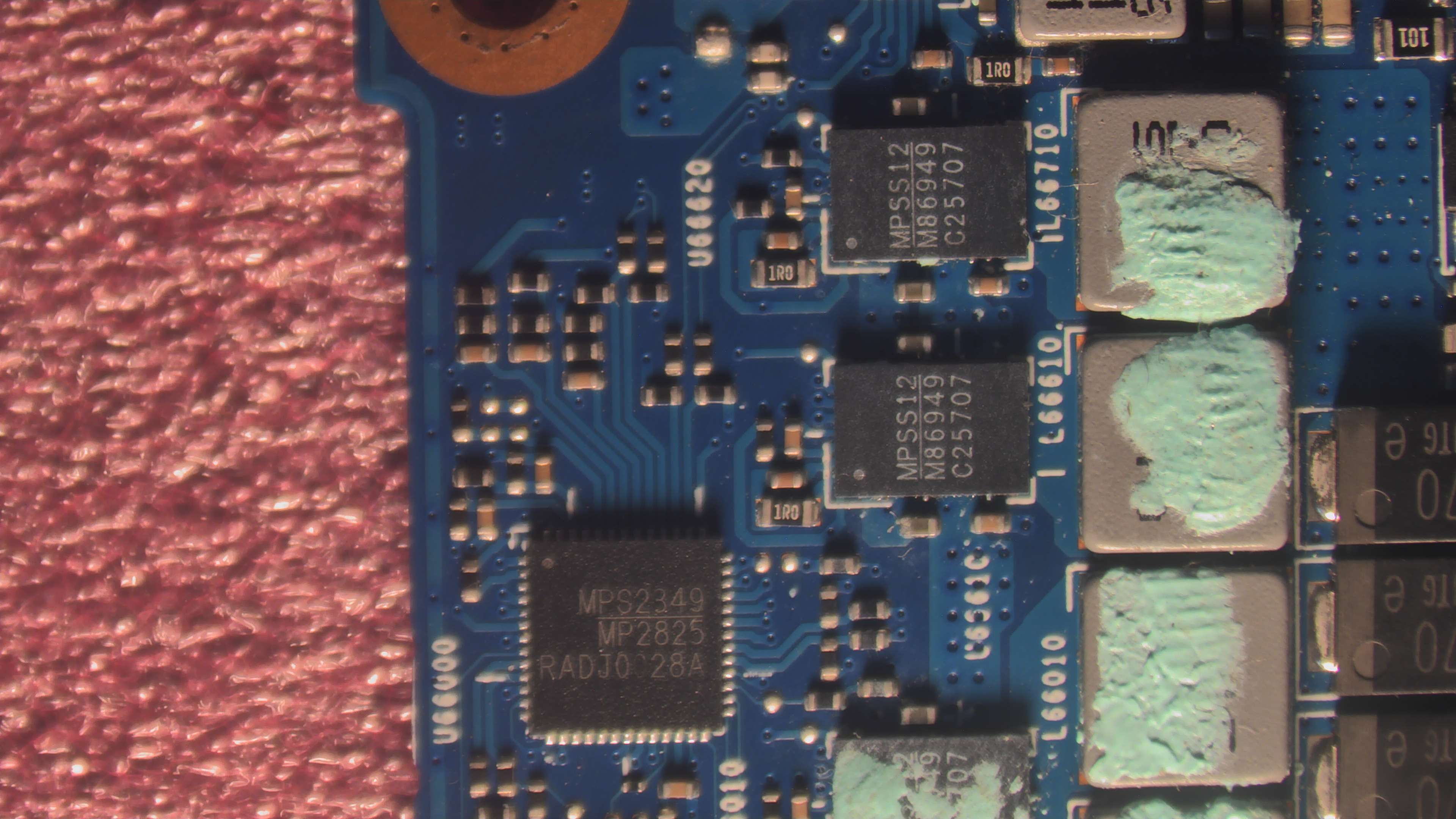

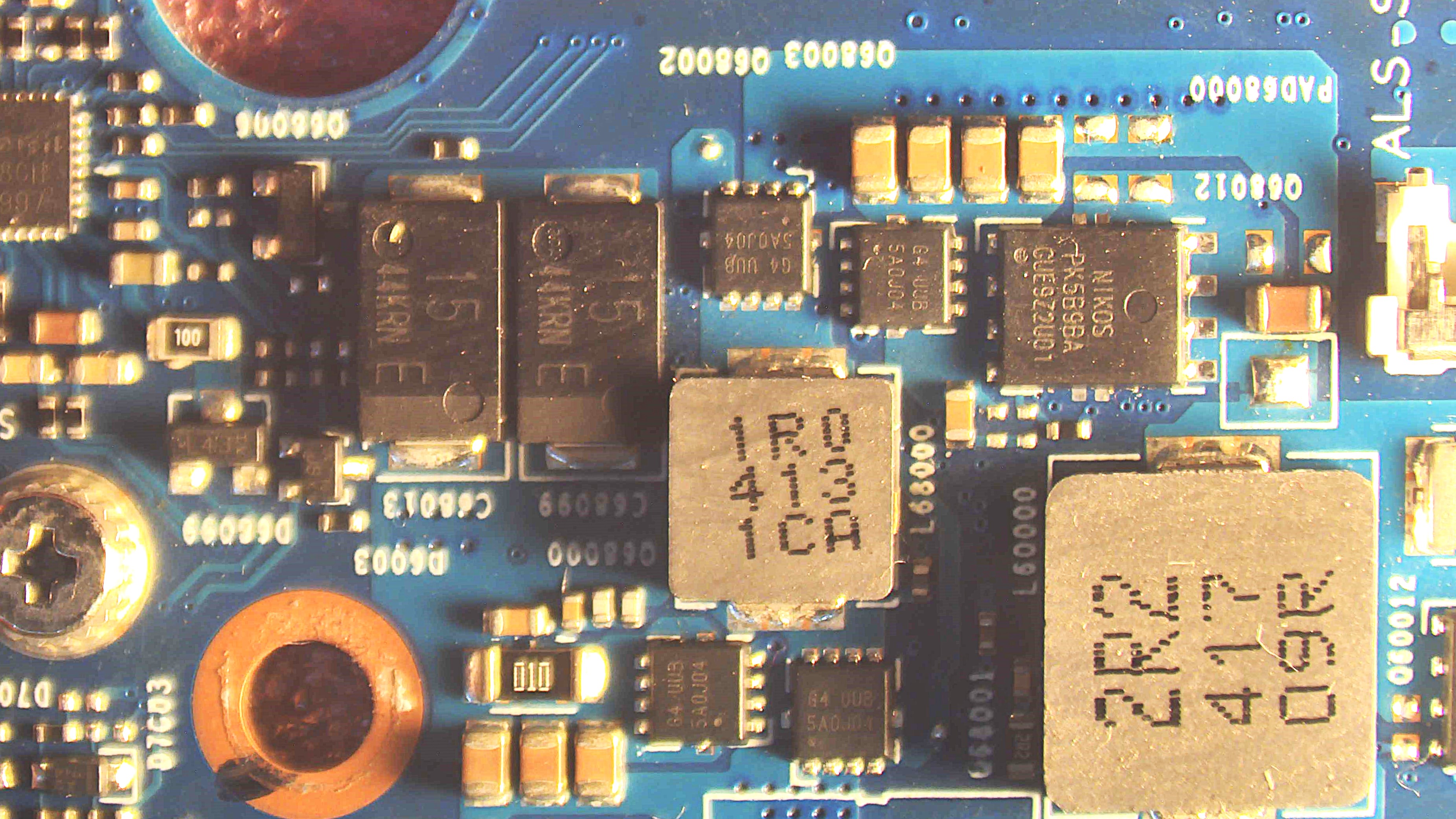

SAMPLE MICROSCOPIC IMAGES:



POWER SEQUENCE WAVEFORMS:

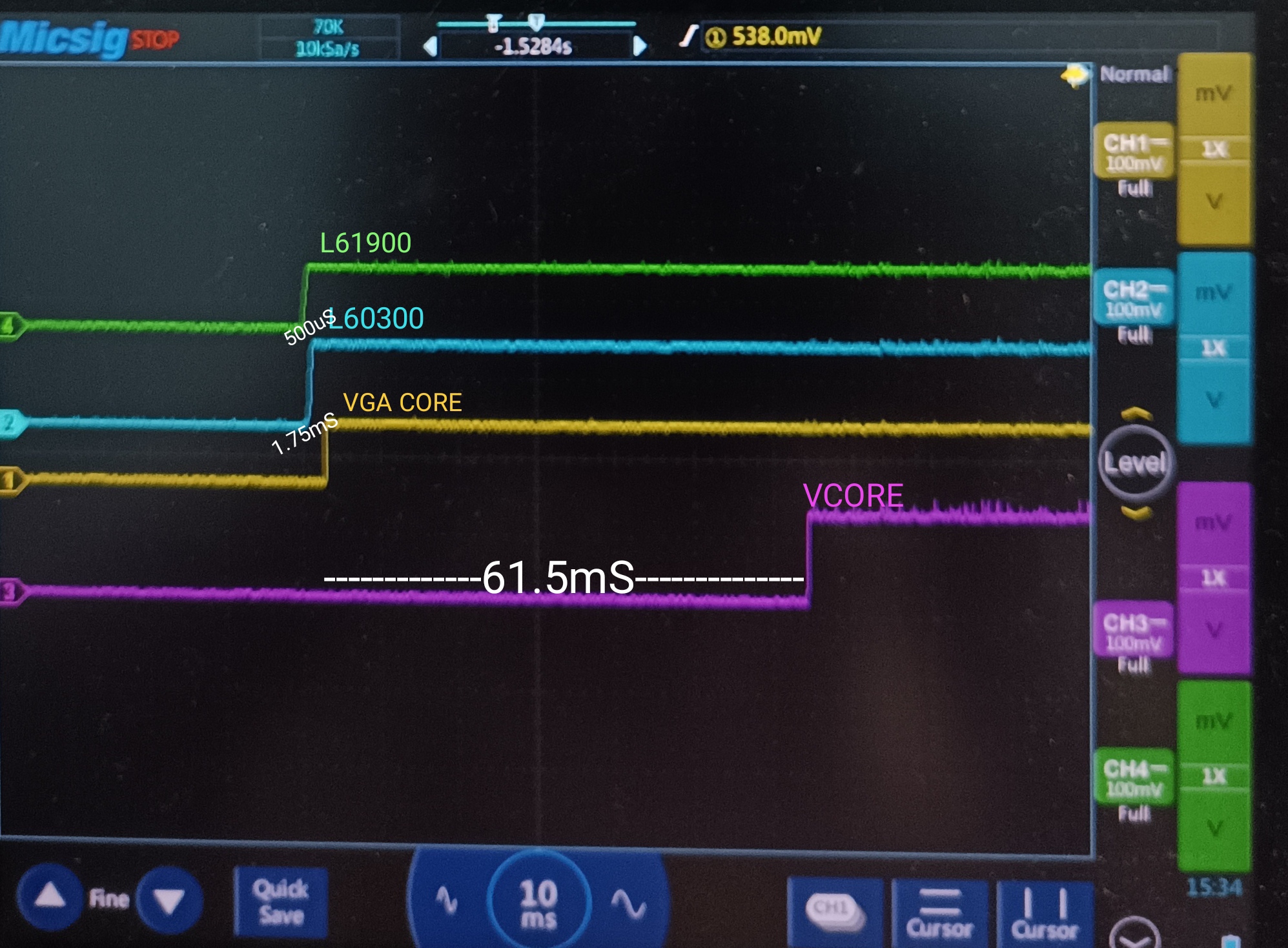

VGA CORE VS VCORE

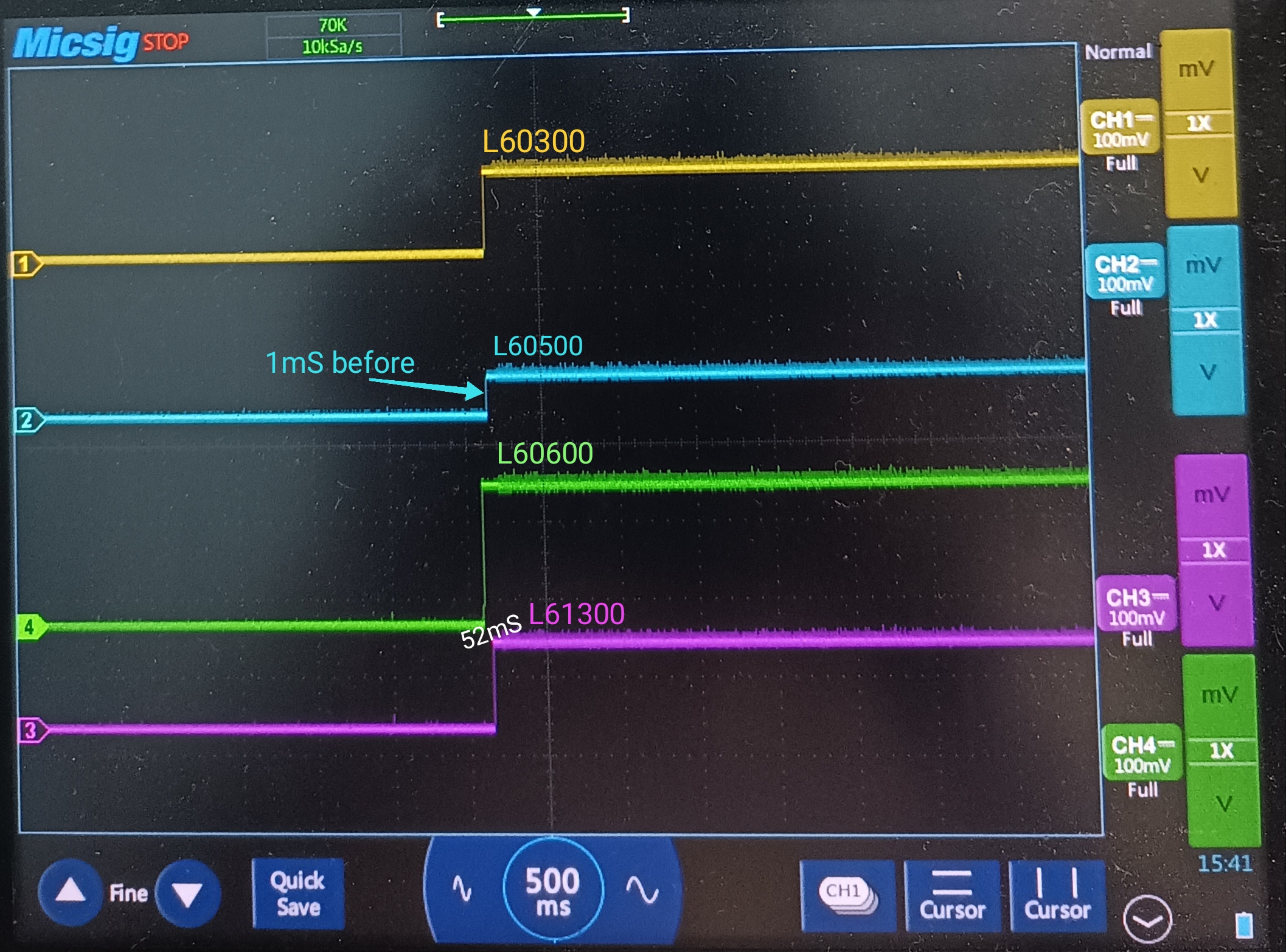

ONBOARD DDR5 POWER SEQ

FULL REPAIR REFERENCE MANUAL WILL UPLOAD SOON,,,,, STAY LOGIN TO www.EasyMB.in
