TYPE-C LOAD CONSUMPTION AND NEGOTIATED VOLTAGE MEASUREMENTS ARE EQUALLY IMPORTANT IN LAPTOP-NOTEBOOK MAINBOARD REPAIR AS WELL AS BATTERY CHARGING CURRENT.HERE IS A PRACTICAL MOD TO A WORKING GOOD CHARGER TO ADD METER PANEL.

BEWARE: ALWAYS DISCONNECT AND DISCHARGE CHARGER/ADAPTER TO AVOID ANY SHOCK AND EQUIPMENT DAMAGE.IF YOU ARE NOT FAMILIAR WITH ELECTRICAL WIRING,TESTING OR POWER SUPPLY REPAIR DO NOT TRY TO OPEN THE CHARGER AND CONTACT NEARBY POWER TECHNICIAN.

ALWAYS USE TESTED BRANDED CHARGER/ADAPTER BECAUSE THIS TYPE OF MOD VIOLATE WARRANTIES.

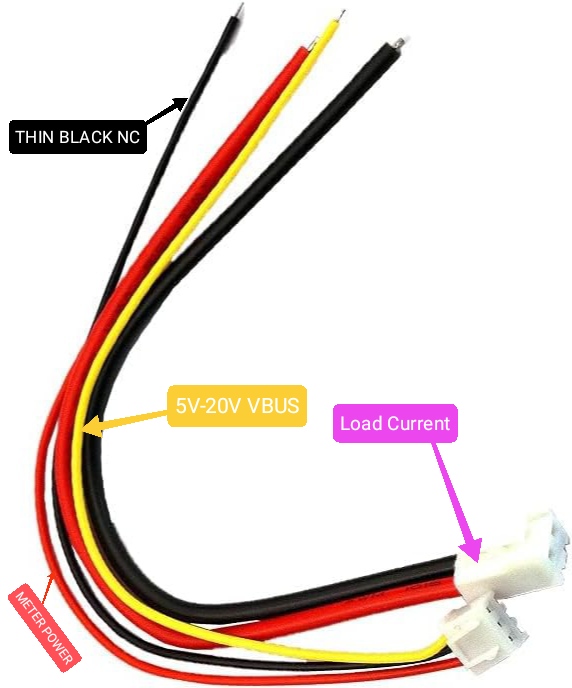

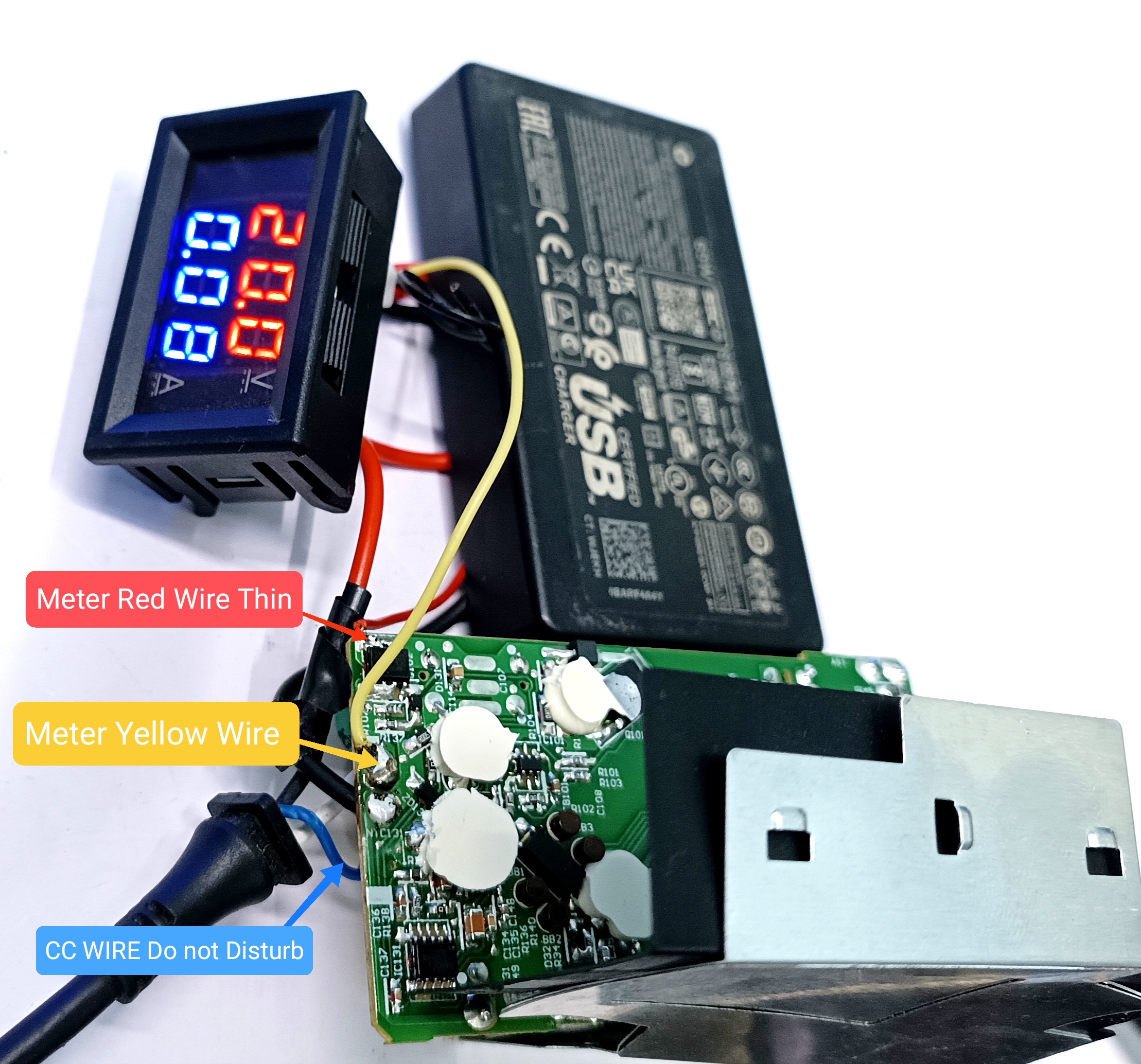

NORMAL  VOLT-AMP METER HAS A RED-BLACK THICK  WIRE PAIR TO MONITOR CURRENT.TO USE IT FIRST CUT GROUND WIRE OF TYPE-C PORT CABLE AND CONNECT BOTH END TO THE THICK WIRE. THEREAFTER USE THIN RED WIRE TO CONNECT STANDBY POWER AS SHOWN IN MARKUP IMAGE WITH YELLOW TO VBUS/20V LINE.NEVER CUT ANY OTHER  WIRE.

THIN BLACK WIRE IS STILL UNUSED AND SHOULD BE TAPE PROTECTED.

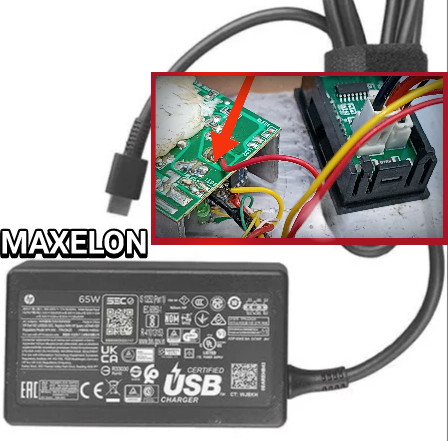

MAXLONE  CHARGERS USED BY OUR TEAM FOUND USEFUL IN MANY NOTEBOOKS AND MAC, CAN BE MODDED AS GIVEN BELOW:

HOW TO USE:

A. FIX COVER WITH GLUE AND APPLY TAPE PROTECTION TO ANY OPEN WIRE

B. JUST PLUG ADAPTER TO POWER SOURCE

C.. BOTH METER SHOWS ZERO READING BEFORE TYPE-C PLUGGED TO ANY DEVICE

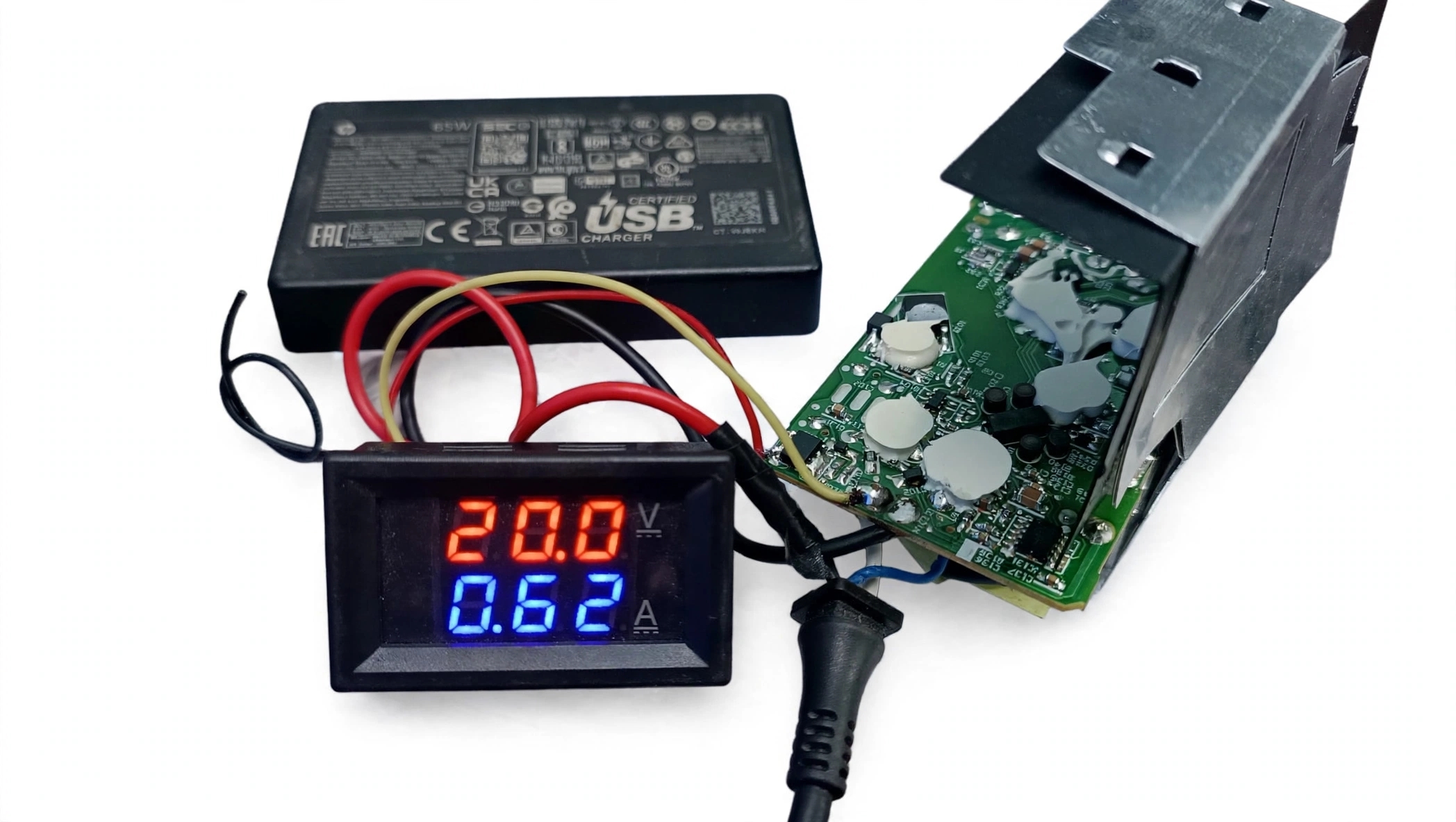

D. PLUG ANY  NOTEBOOK SCRAP BOARD HAVING NO SHORT TO CONFIRM WIRING. VOLT METER FIRST SHOW 5V THERE AFTER NEGOTIATED VOLTAGE AS 20V IN MANY LAPTOPS.

E. LOAD CURRENT SHOWS IN AMPERE METER LOWER SIDE.

F. BY CONFIRMING AND VARIOUS TESTING USE IT IN ACTUAL DEVICE UNDER TESTING.

G. MANY SMARTPHONE INTIALY DISPLAY 5V VBUS BUT AFTER ACTIVATE TURBO CHARGING VOLTAGE SHOWS 9V OR MORE.
