ACER A315-22 NB8607_PCB_NB_V4 MAINBOARD

AMD A4-9120e AM912EANN23AC

RADEON R3 GFX

DDR4 ONBOARD WITH ONE SLOT

IT8987E-BXS EC

ALC256 AUDIO

AP16M5J 7.7V BATTERY LI-ION 8PIN INTERNAL TYPE

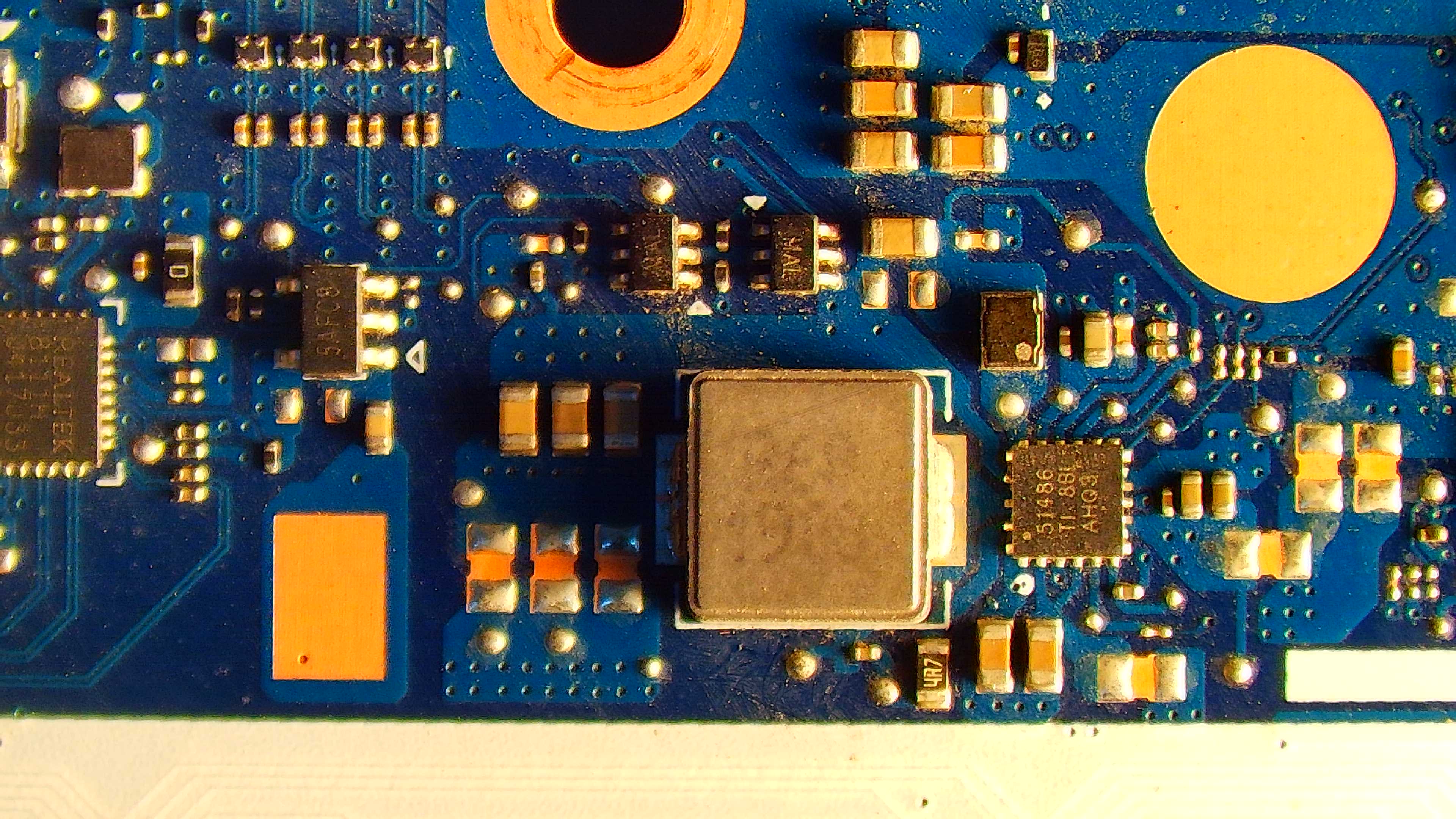

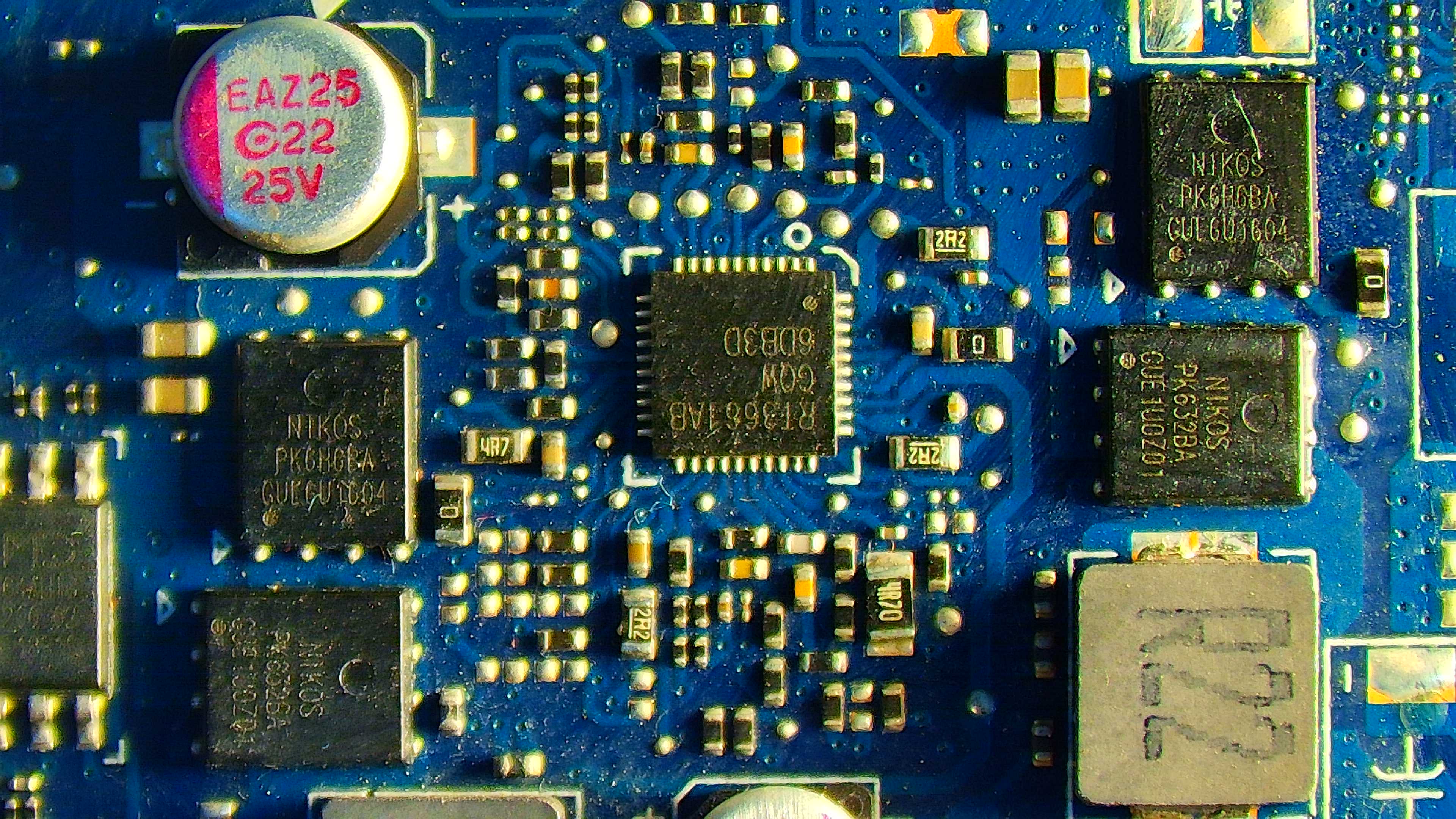

IMPORTANT SECTIONS

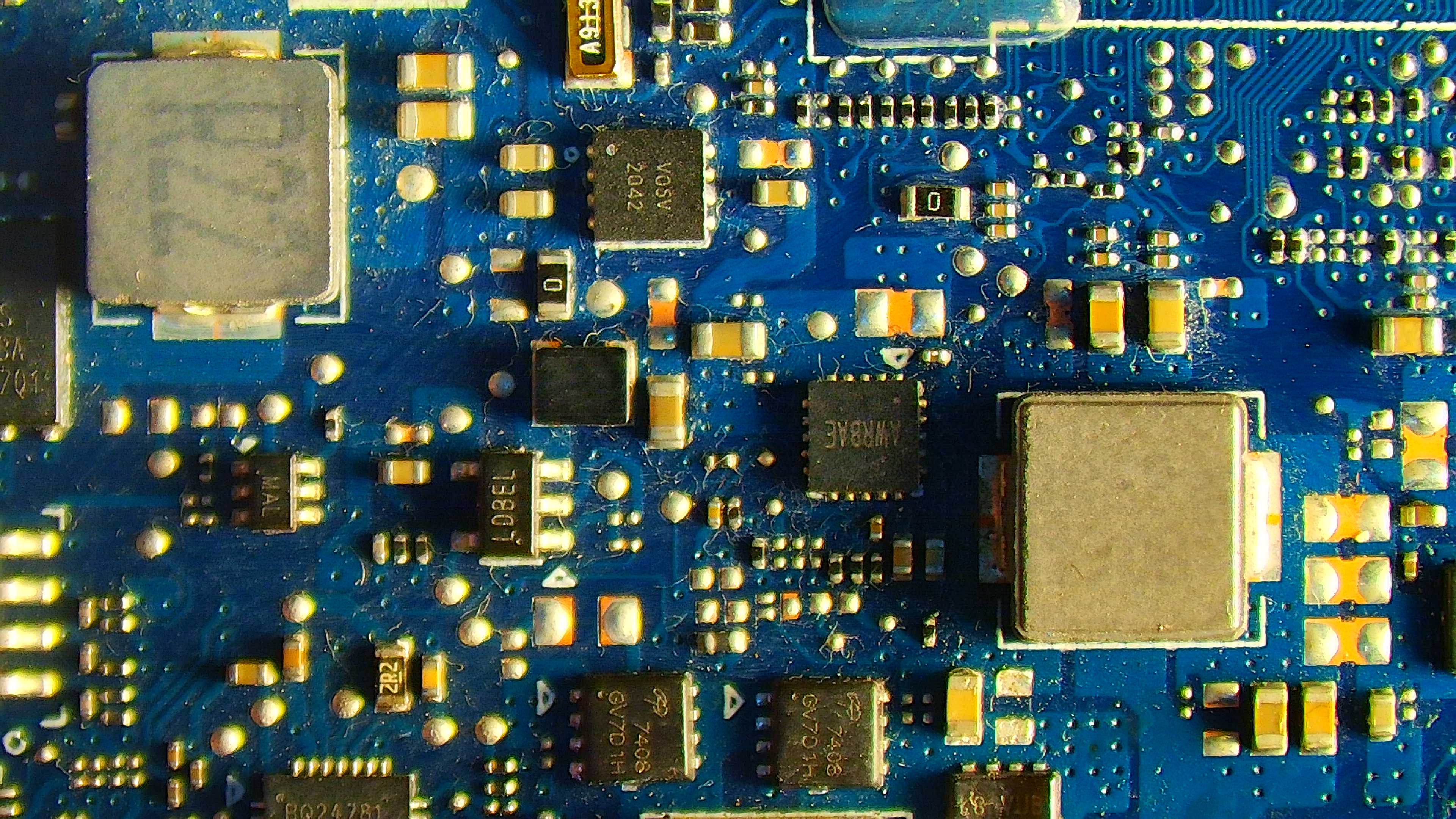

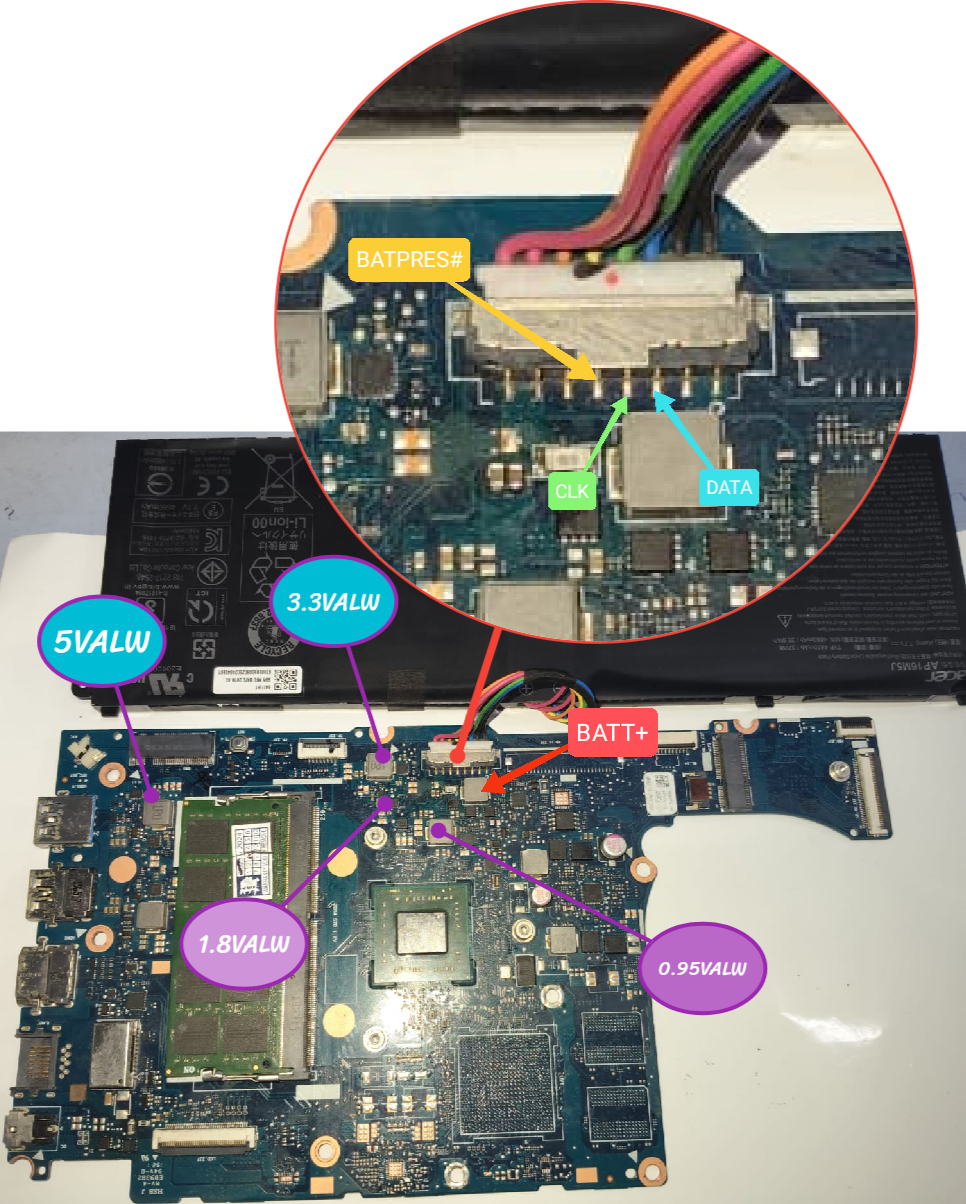

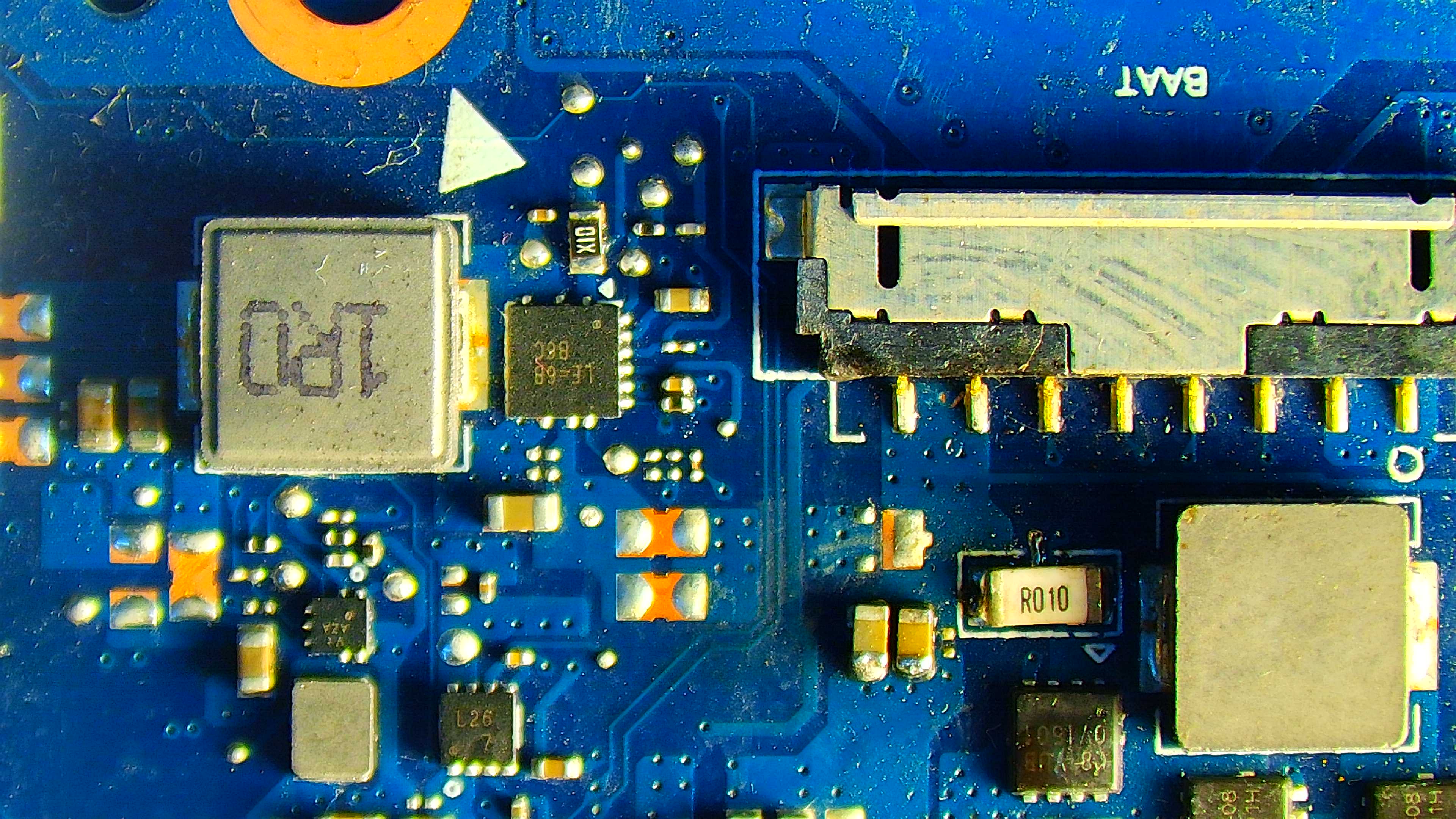

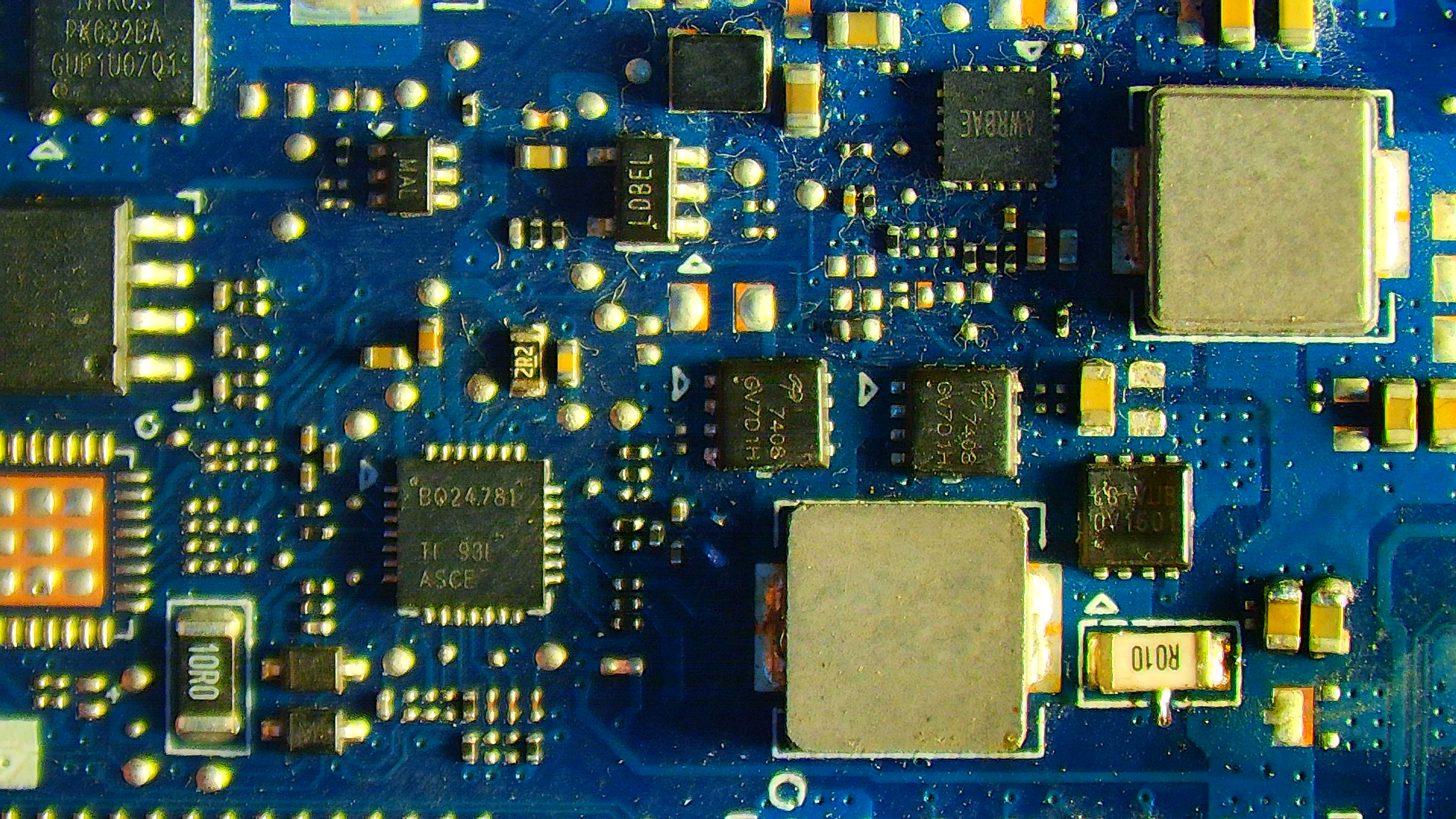

BATTERY  CONN TEST POINTS

BATTERY CHARGING 1.72AMP

ALL ALWAYS SUPPLY PRESENT WHILE CHARGING BATTERY

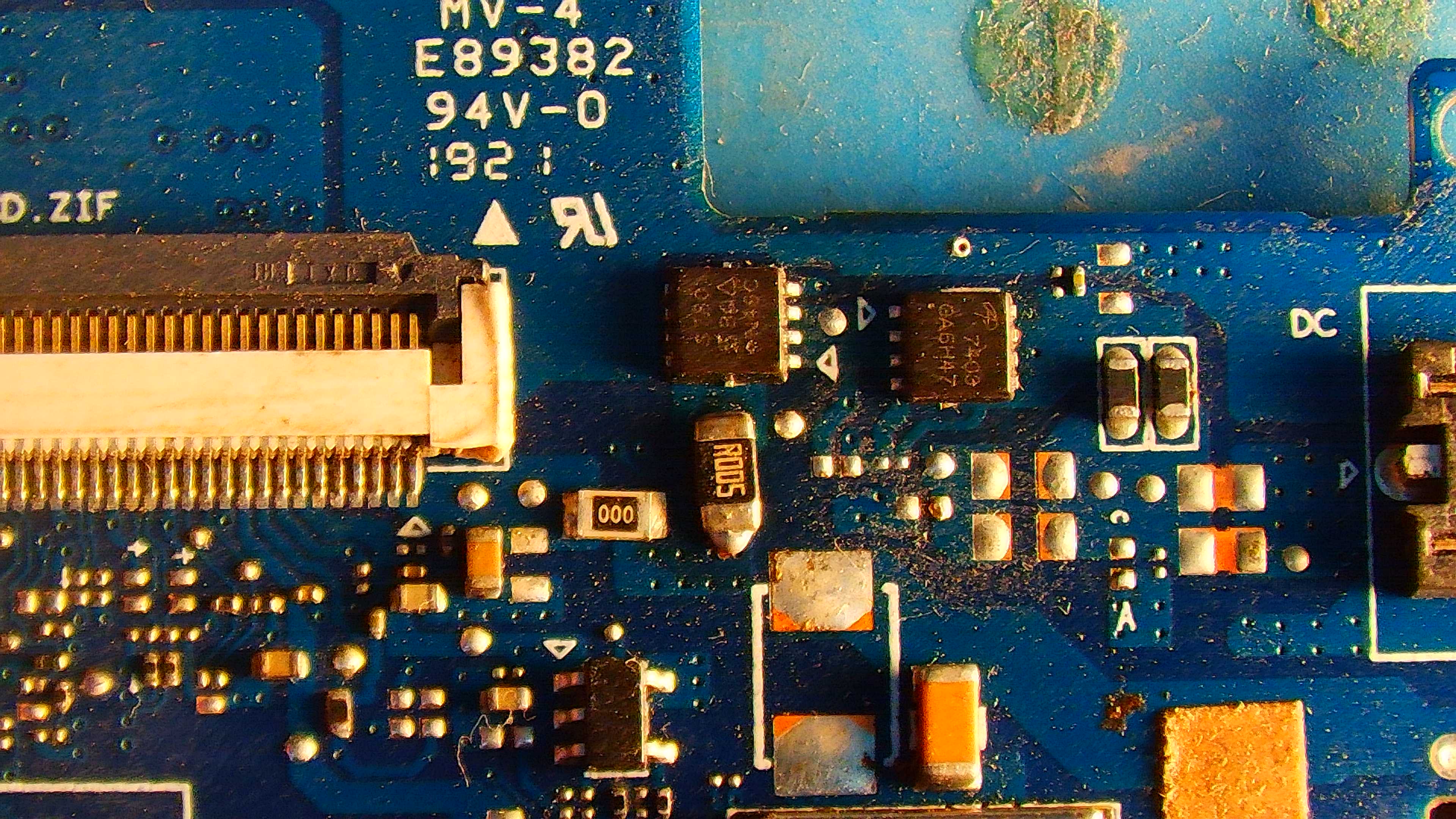

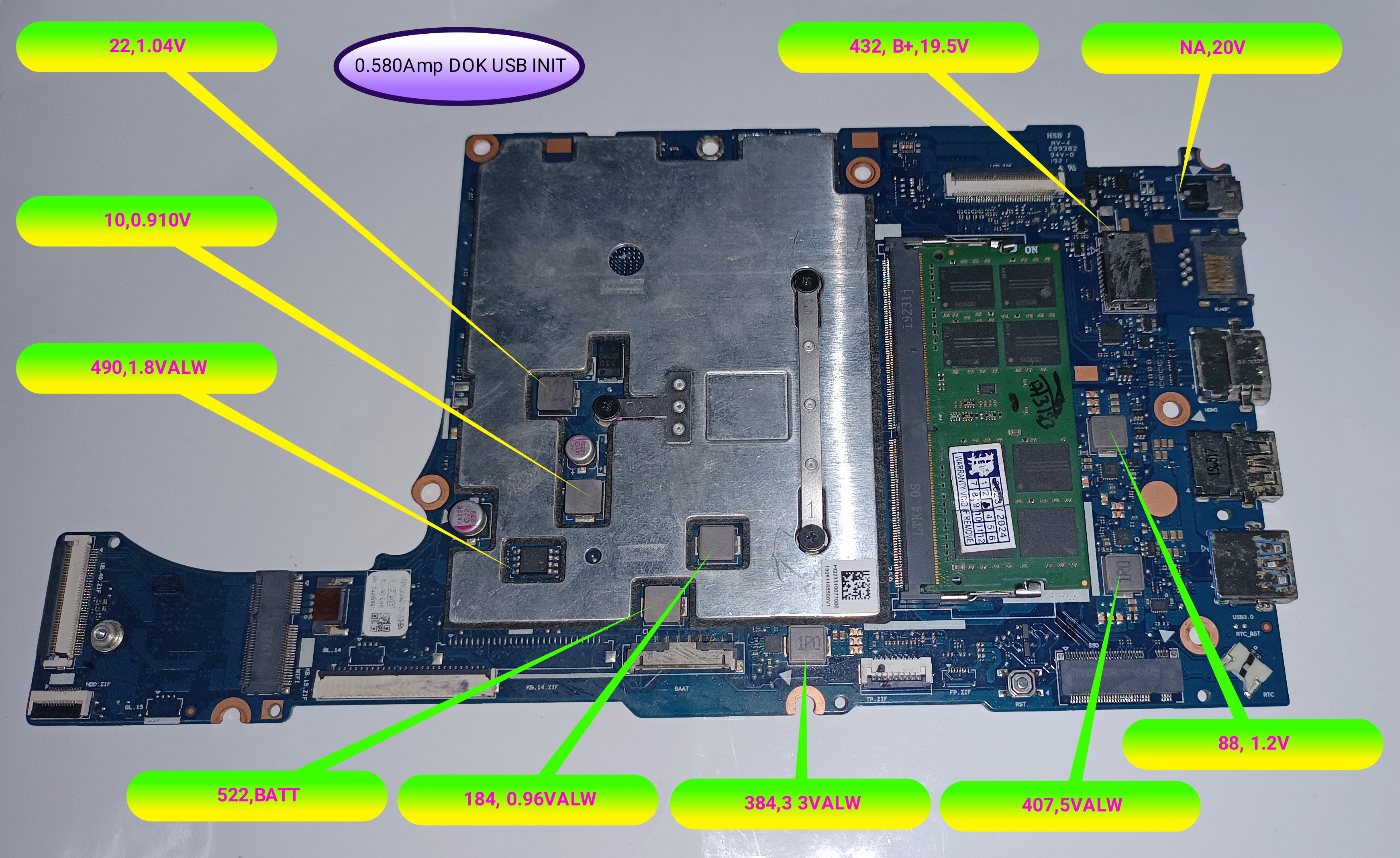

PSU SHOWS 0.580AMP DOK BY USB INIT.

IF ANY MICROSCOPIC IMAGE NEEDED....USE CONTACT US  www.EasyMB.in
