0P5H POWER ON AND OFF,CYCLE..NO SLP_S4# OR SLP_S3#

ADAPTER PLUG ALL VOLTAGES AND BIOS PIN2 WAVEFORM SEEMS GOOD

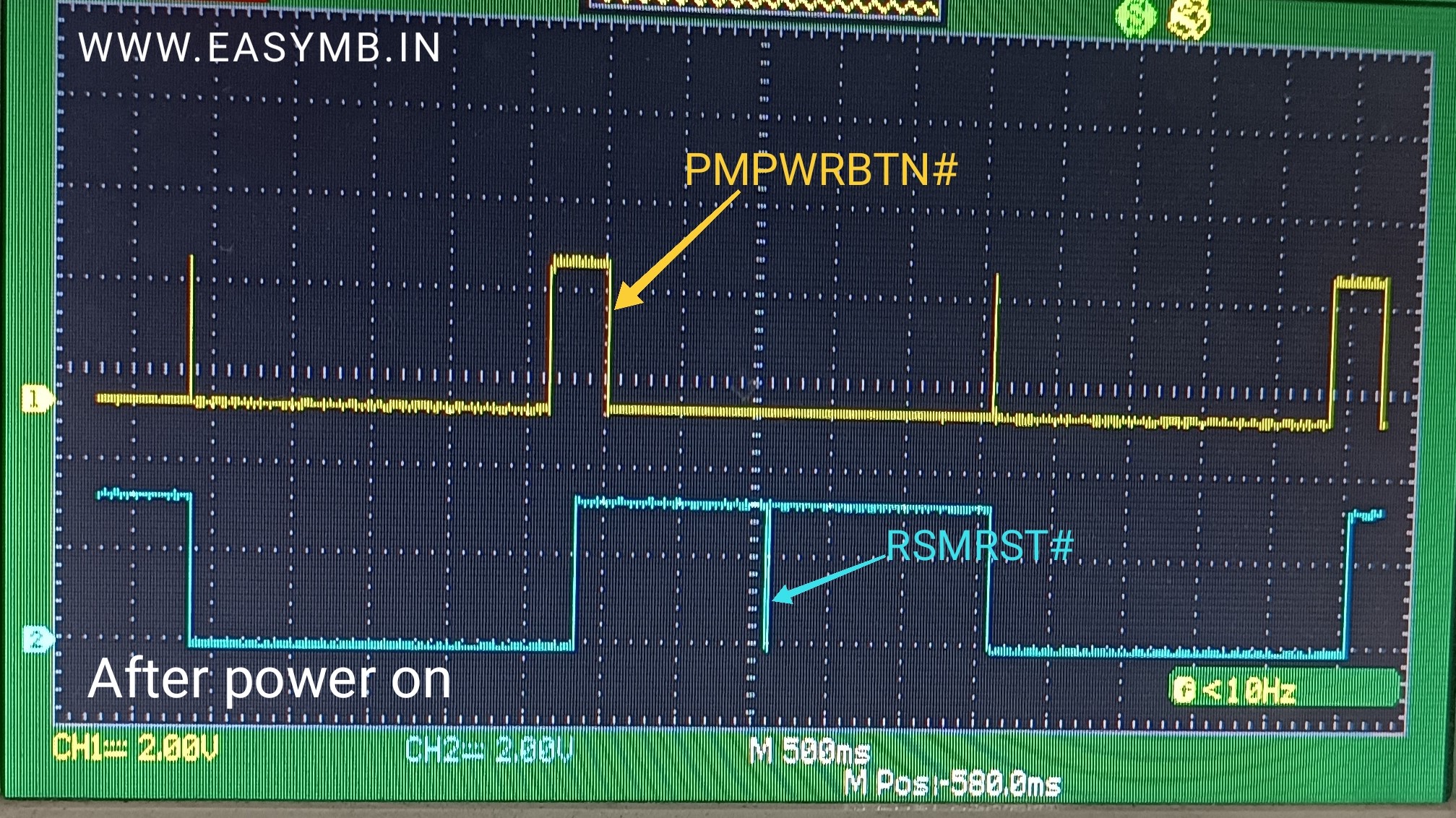

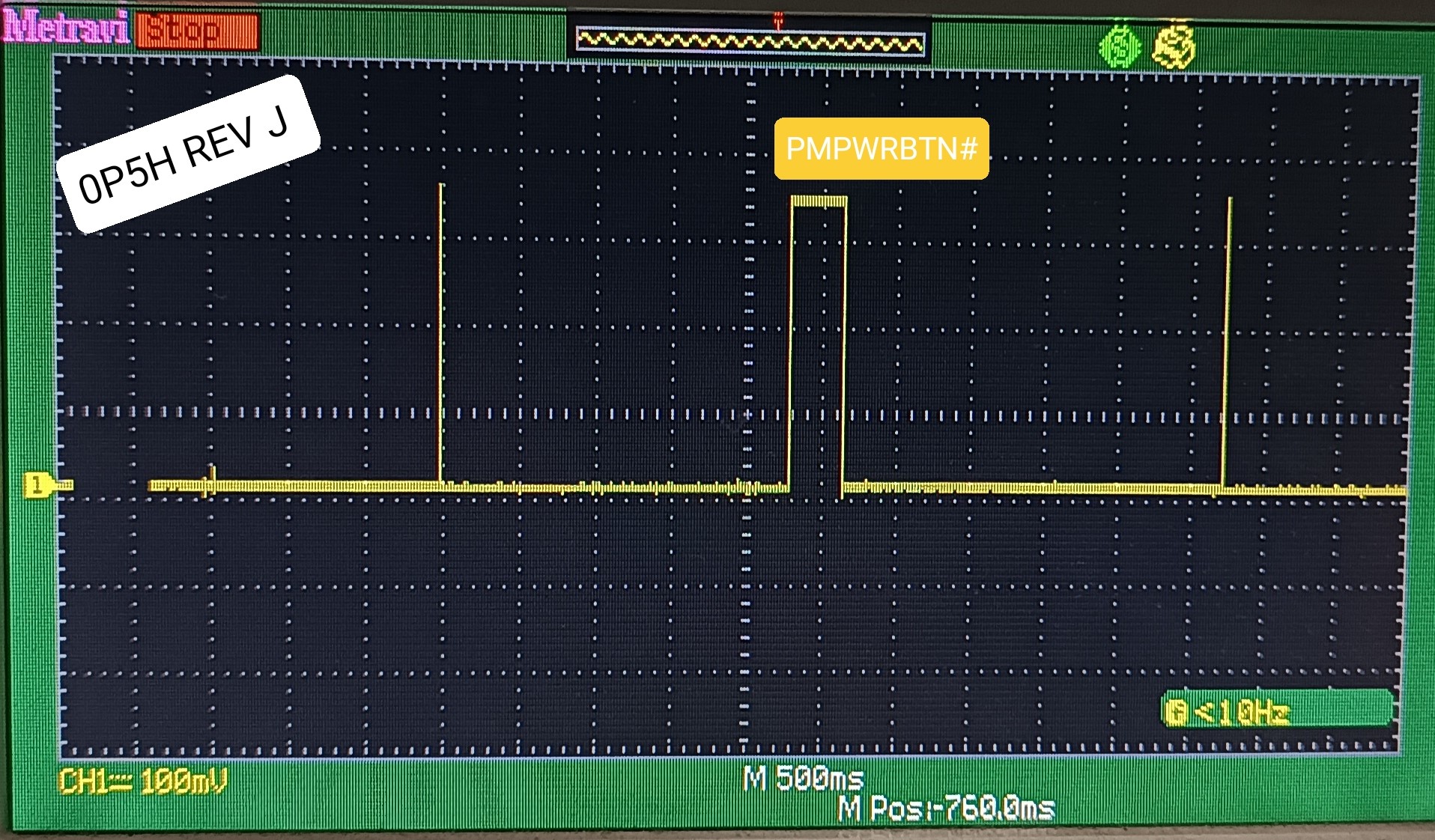

BUT AFTER BUTTON PRESS PMPWRBTN NOT HIGH PROPERLY

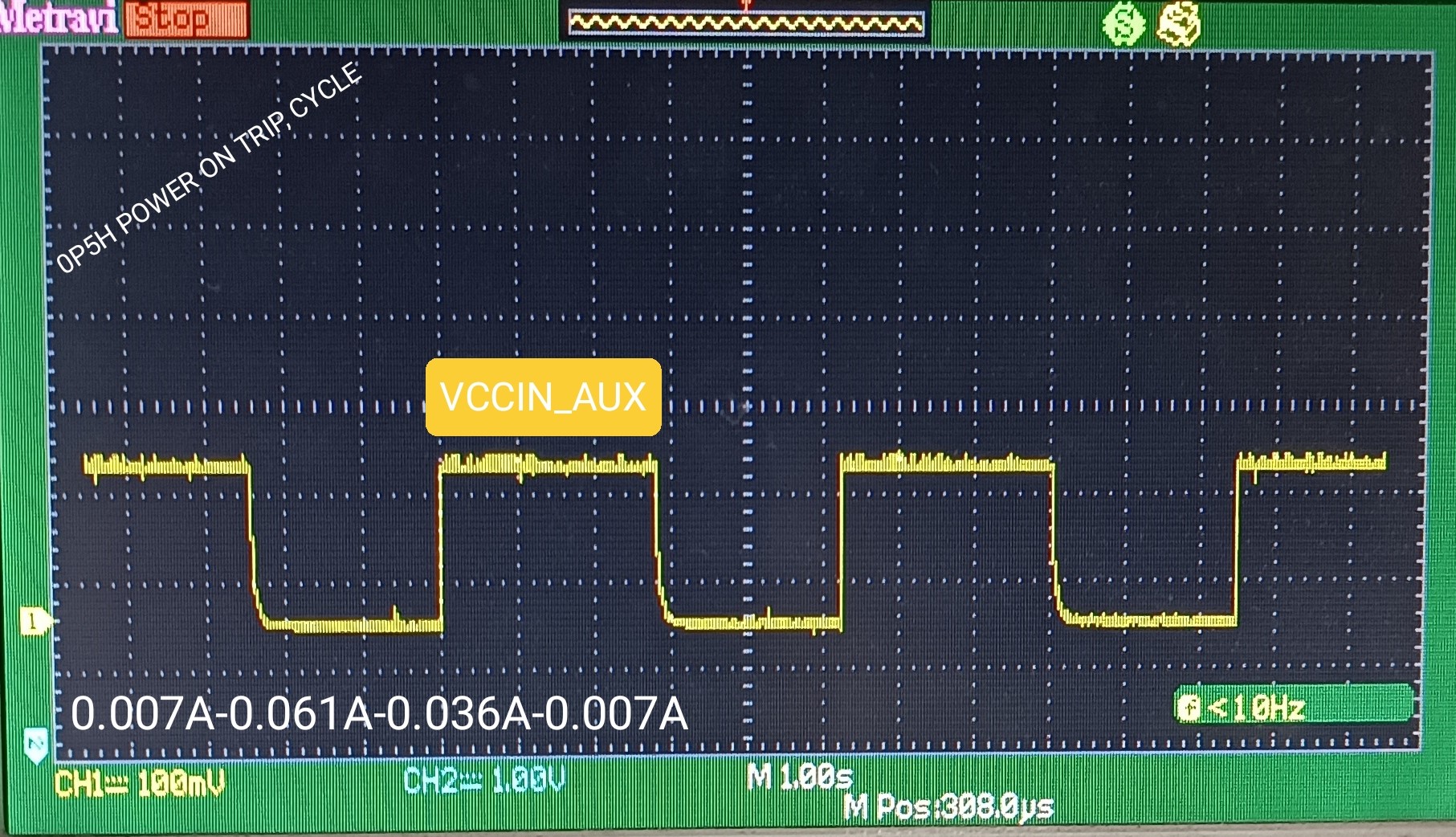

EVEN 3.3V ALSO CYCLE AND CAUSING ACLED OFF FOR A WHILE

RSMRST# ASERTED AGAIN AS SHOWN  ABOVE WF

REMOVE BIOS CHIP TO CHECK PAD DIODE VALUE AND FOR  SUPPLY LINES TRIPPING, FOUND NO CHANGE.

SO CHECK ALL SPI-eSPI PAD TRACK TOWARDS CPU,FOUND ONE OPEN

FIX THE TRACK,NOW ALL OK
